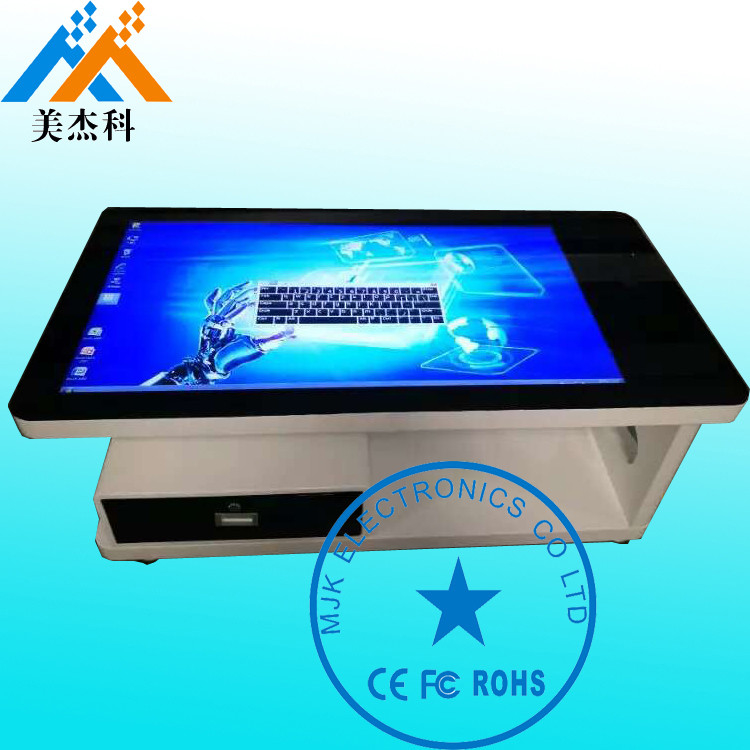

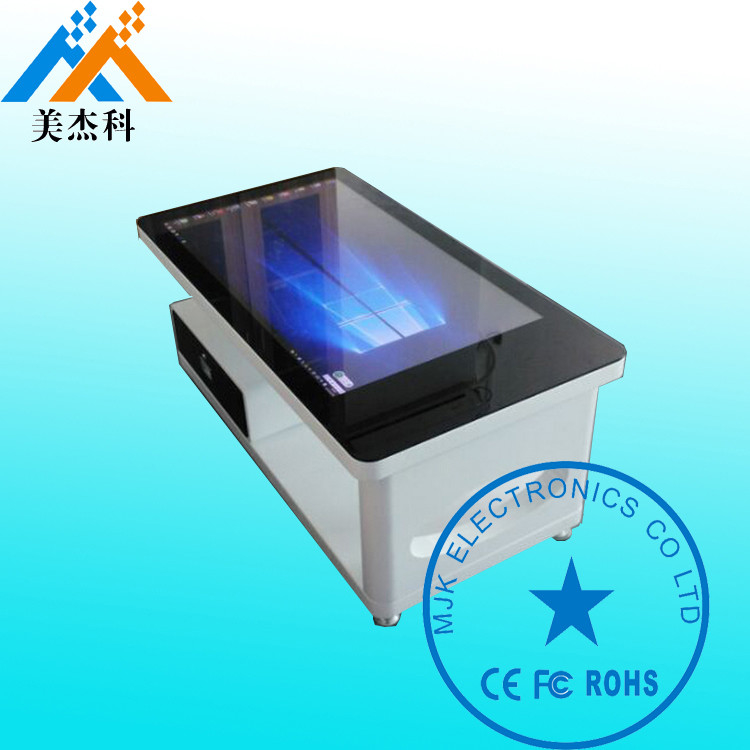

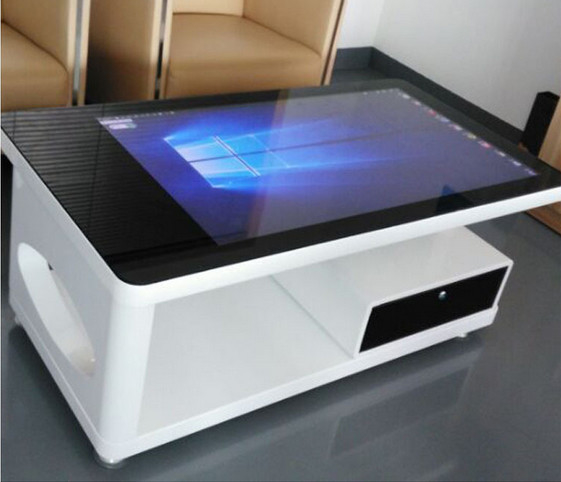

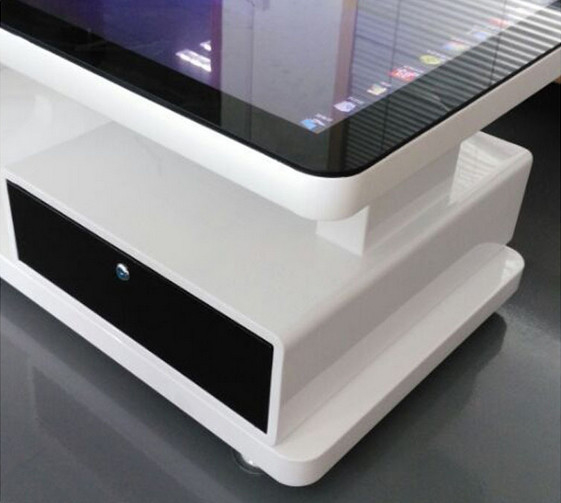

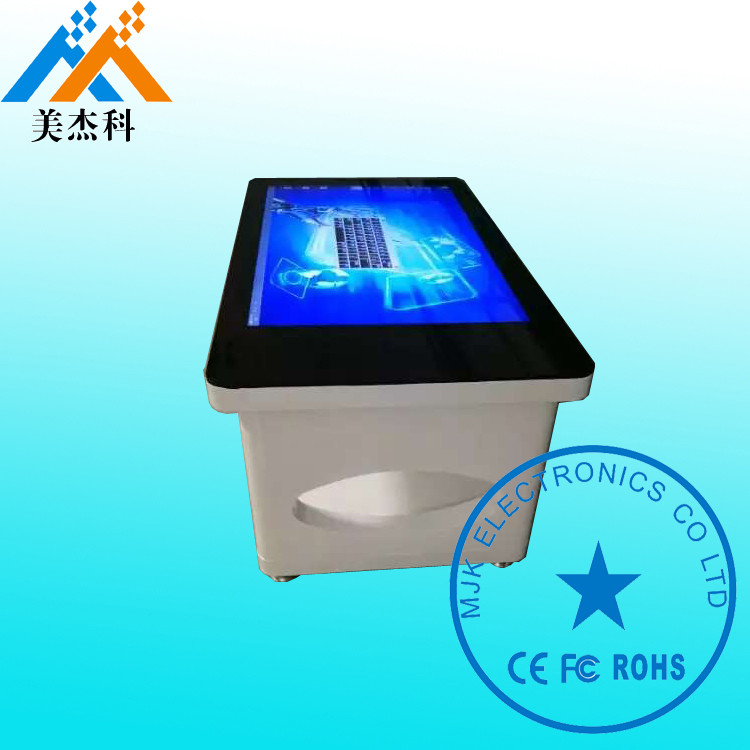

Waterproof  Touch Screen Digital Signage 10 Points Capacitive Screen 50000H Working Life

Waterproof Touch Screen Digital Signage 10 Points Capacitive Screen 50000H Working Life

  • High Light

    self service kiosks

    ,

    digital information display

  • OS
    Windows Or Android
  • Material
    Stainless Steel
  • Working Life
    50000H
  • Resolution
    1920*1080p
  • Brightness
    450cd
  • Color
    Black ,red, White Etc
  • Place of Origin
    china
  • Brand Name
    MJK
  • Certification
    CE,Rohs
  • Model Number
    MJK-AD32TKF
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiate
  • Packaging Details
    Packed in carton firstly,and then reinforced with wooden case for outer packing
  • Delivery Time
    3-25days
  • Payment Terms
    T/T
  • Supply Ability
    5000pcs/Month

Waterproof Touch Screen Digital Signage 10 Points Capacitive Screen 50000H Working Life

Waterproof 32Inch Touch Tea Table 10 Points Capacitive Screen High Resolution 1080P





Quick Detail:







⒈Place of original: Shenzhen Guangdong ⒉China(mainland)

⒊screen size: 42"
⒋Resolution: 1920 (RGB) × 1080 [FHD]
5 Brightness (cd / m2): 500 (Typ.)
6 Best angle: full view
7 Viewing angle: 89/89/89/89 (Min.) (CR≥10)
8 Point distance: 0.227mm (H) x 0.227mm (W)
9 Number of colors: 16.7M / 1.07B, 95% [CIE1931]
10 Signal system: LVDS (2 ch, 10-bit), terminal, 51 pins
11 Maximum rated: Storage temperature: -20 ~ 60 ° C 12 Operating temperature: 0 ~ 50 ° Cw
13 Response speed: 6 (Typ.) (G to G) ms
14 Backlight type: WLED, 30K hours, no drive



15 Memory: 1 / 2G (optional)
16 Built-in memory: EMMC FLASH 8G (optional)
17 Built-in ROM: 2KB EEPROM
18 Decoding resolution: up to 1080P
19 Operating system: Windows
20 Play mode: support for the cycle, timing, spots and other playback modes
21 Network support: 3G, Ethernet, WiFi support, wireless peripherals expansion
22 Video playback: support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 and so on
23 Picture format: support BMP, JPEG, PNG, GIF







Description:



1) Automatically generate play logs, file playback status query

2) Multi data-image adjustment circuit, low image distortion.

3) Wide visual angel 178 degree, aspect ratio 16:9.

4) Available Size: 32", 37", 42",46",47", 52", 55", 65", 70", 82".

5) Outer shell is made of extra good quality metal material, which is painted by powder-spray craft work.

6) High transparent tempered glass (2-6 mm ) to protect lcd panel being broken or distorted.



Applications:



Can be widely used in hotels, office buildings, the elevator, the exhibition site, entertainment and leisure facilities, but also in the subway station, train stations, airports, shopping malls, supermarkets, chain stores, specialty stores, convenience stores, promotional counters and other .



Main features:



① Material support:video(1080P),music,picture,txt,ppt,excel,word,pdf,webpage etc.
② Multiple timer switch can be set
③ Support to upgrade the contents to built-in memory by inserting USB
④ Upload contents to the memory card by one-step inserting an USB flash drive; no need to pull out the memory card; no need to use a laptop.

⑤ Professional bracket sets for easy installation on wall, supermarket shelf, lift, showcase, furniture and tabletop etc.

⑥ It will strength customer's experience on product brand with the combination of digital information and the actual product display



Specifications :





LCD Spec.

LCD Panel Type

32Inch, 16:9

LCD Resolution

1920*1080

Viewing Angle

178°/178°

Color

16.7M

Response Time

6ms

Contrast Ration

3000:1

Brightness(cd/m2)

350cd

Player Spec.

Processor

ARM based Multimedia processor

Network

10/100 Mbps Fast Ethernet

Storage

Default 8GB SD card (Maximum up to 128GB)

Wireless

Built-in module of WiFi 802.11b/g or 3G (Optional)

USB Host

USB2.0 x 1, USB1.0 x 1



Power Input

AC 100V~240V 50/60 Hz

Software Spec.

Media Support

Video / Audio / Picture / Scrolling text/Streaming

 Video

Video format

MOV, AVI, MP4, DVD, ASF, WMV, MKV, RM, RMVB, TS,

 DAT, MPG, MPEG,VOB

Audio format

MP3, WMA, WMA Pro, AAC, ADPCM, OGG Vorbis,

 Dolby Digital AC3, Dolby Digital Plus, FLAC

Picture format

JPEG, BMP, GIF, PNG, TIFF

Scrolling Message (Ticker)

Horizontal, Adjustable speed, effect, font and

background color

Local Time and Date

Support

Multiple Zones Display

Support multiple zones on screen

Others

Player Dimension

794 x 484 x 110 mm

Power Consumption

120W

Environmental Factors

Operating temperature: 0-55°C

Relative humidity: 20%-80%

Color

Silver, Black or any other color

Speaker

built with 2 stereo speaker

Accessories

Wall-mount plate, Remote, Key, Power Cord

Certification

CE, RoHS, FCC







Competitive advantages:



1.Supply OEM&ODM Service,independent QC department,many times testing and

checking well in site
2.100% QC pass checking and testing before shipping
3.13 months of warranty
4.CE,RoHs,FCC
