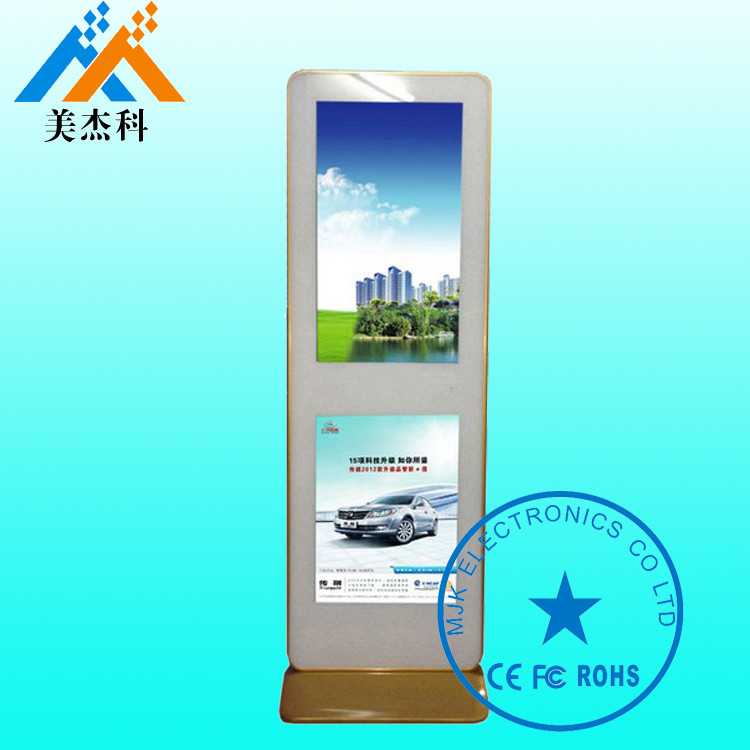

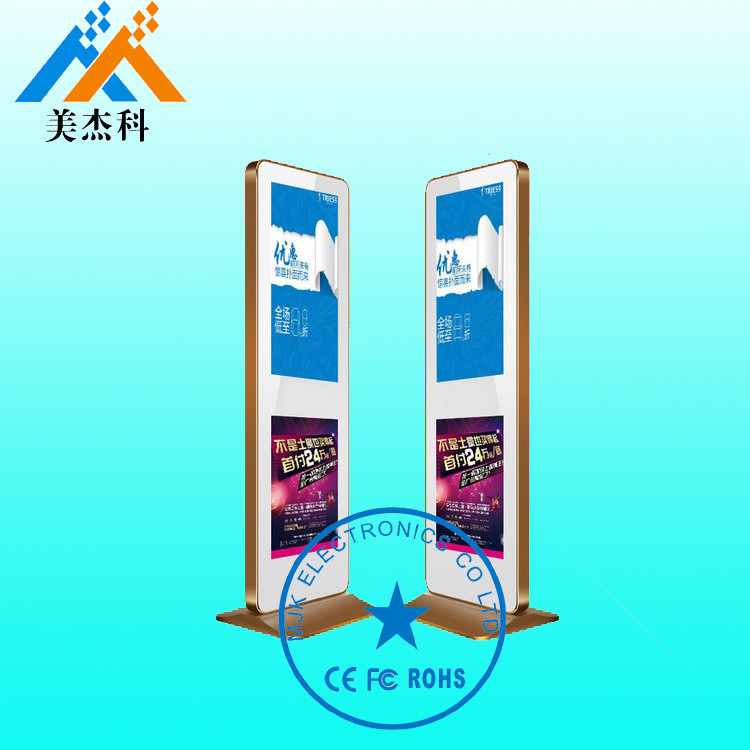

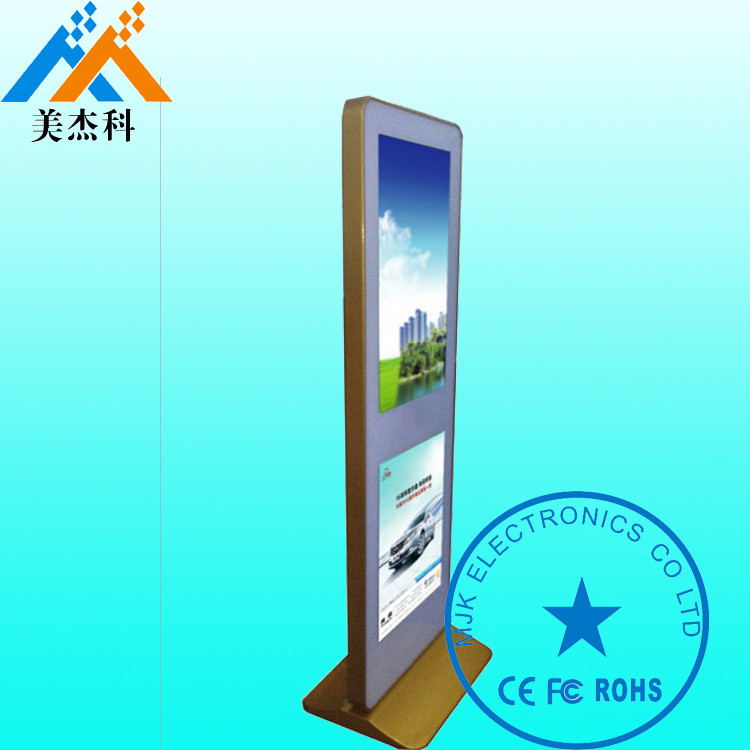

Vertical LCD Advertising Touch Screen Digital Signage Kiosk 500CD Brightness

Vertical LCD Advertising Touch Screen Digital Signage Kiosk 500CD Brightness

  • High Light

    digital signage player

    ,

    digital information display

  • Response
    6s
  • Color
    Any Color
  • OS
    Windows Or Android
  • Resolution
    1920*1080P
  • Brightness
    500CD
  • Viewing Angle
    89/89/89/89
  • Place of Origin
    china
  • Brand Name
    MJK
  • Certification
    CE,Rohs
  • Model Number
    MJK-AD47TKF
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiate
  • Packaging Details
    Packed in carton firstly,and then reinforced with wooden case for outer packing
  • Delivery Time
    3-25days
  • Payment Terms
    T/T
  • Supply Ability
    5000pcs/Month

Vertical LCD Advertising Touch Screen Digital Signage Kiosk 500CD Brightness



Vertical LCD Advertising Touch Screen Digital Signage Kiosk 500CD Brightness





Quick Detail:



  1. Shell is made with high class steel & aluminum, color can be customized.
  2. Industrial grade paint technology, smooth and uniform, waterproof and dustproof, anti dust and mill.
  3. High transparent tempered glass (2-6 mm ) to protect lcd panel being broken or distorted.
  4. Locking system for anti-thieves, prevented the storage devices ( SD/CF cards ) from being stolen.
  5. Support IR Remote controller, user can use remote controller to operate the whole lcd.

Description:



  1. Different software installation, software updating function
  2. Multi-language OSD: English, Chinese etc
  3. IR or capacitive Touch-screen, HDMI,VGA and AV port function.
  4. Remote control by network with provided software.
  5. Split screen display--- video area, text area, scrolling text, logo area, etc. displaying
  6. different media content in different area.
  7. Operation system: Windows, Android.

Main Features:



1,Display mode:
Logo, video ,flash animation,images, text mix broadcasting area are available.

Support loop play.
Support rich display resolution:1366x768,1440x900,1600x900,1680x1050,1920x1080.

Support Chinese ,English and other languages.



2,Split-screen display:
Support switch between both horizontal & vertical display mode.
Support switch between full screen and split diplay mode.
Smooth scrolling marquee play,without pause.



3,Timing management:
Support turn on,turn off on time or manually operating mode.
Support set up 7 days a week or set up according to the daily management



Applications:



1.Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales,

star-rated hotels, restaurants, travel agencies, pharmacy.

2.Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;

3.Non-profit Organizations:Telecommunications, post offices, hospital, schools

4.Public Places:subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums,

museums, convention centers, ticket agencies, HR market, lottery centers;

5.Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers

6.Entertainments:Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.



Specifications :



LCD Spec.

LCD Panel Type

42Inch, 16:9

LCD Resolution

1920*1080

Viewing Angle

178°/178°

Color

16.7M

Response Time

6ms

Contrast Ration

3000:1

Brightness(cd/m2)

500

Player Spec.

Processor

ARM based Multimedia processor

Network

10/100 Mbps Fast Ethernet

Storage

Default 8GB SD card (Maximum up to 128GB)

Wireless

Built-in module of WiFi 802.11b/g or 3G (Optional)

USB Host

USB2.0 x 1, USB1.0 x 1



Power Input

AC 100V~240V 50/60 Hz

Software Spec.

Media Support

Video / Audio / Picture / Scrolling text/Streaming

 Video

Video format

MOV, AVI, MP4, DVD, ASF, WMV, MKV, RM, RMVB, TS,

 DAT, MPG, MPEG,VOB

Audio format

MP3, WMA, WMA Pro, AAC, ADPCM, OGG Vorbis,

 Dolby Digital AC3, Dolby Digital Plus, FLAC

Picture format

JPEG, BMP, GIF, PNG, TIFF

Scrolling Message (Ticker)

Horizontal, Adjustable speed, effect, font and

background color

Local Time and Date

Support

Multiple Zones Display

Support multiple zones on screen

Others

Player Dimension

794 x 484 x 110 mm

Power Consumption

120W

Environmental Factors

Operating temperature: 0-55°C

Relative humidity: 20%-80%

Color

Silver, Black or any other color

Speaker

built with 2 stereo speaker

Accessories

Wall-mount plate, Remote, Key, Power Cord

Certification

CE, RoHS, FCC





Competitive advantages:




After-Sale Service

1.Supply OEM&ODM Service,independent QC department,many times testing and

checking well in site
2.100% QC pass checking and testing before shipping
3.13 months of warranty
4.CE,RoHs,FCC
