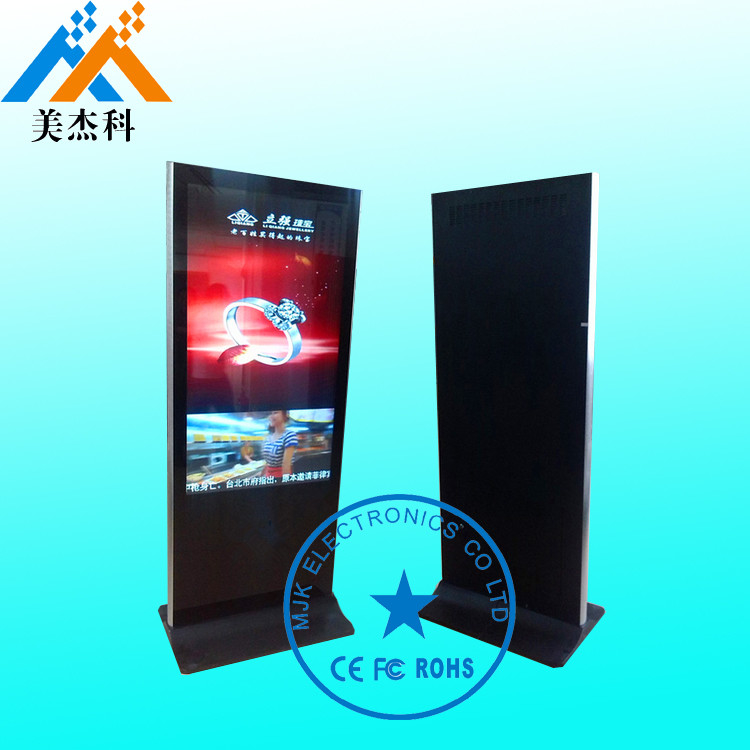

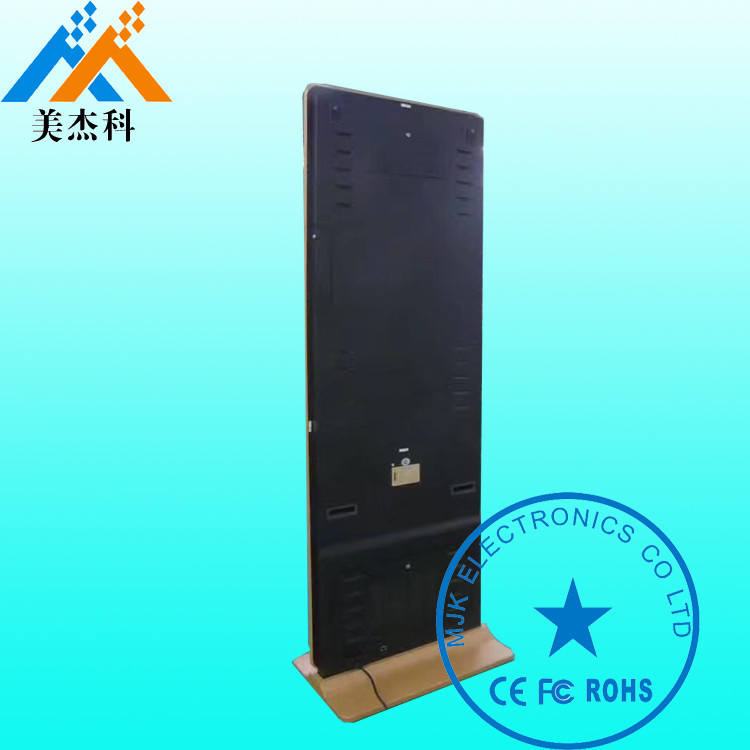

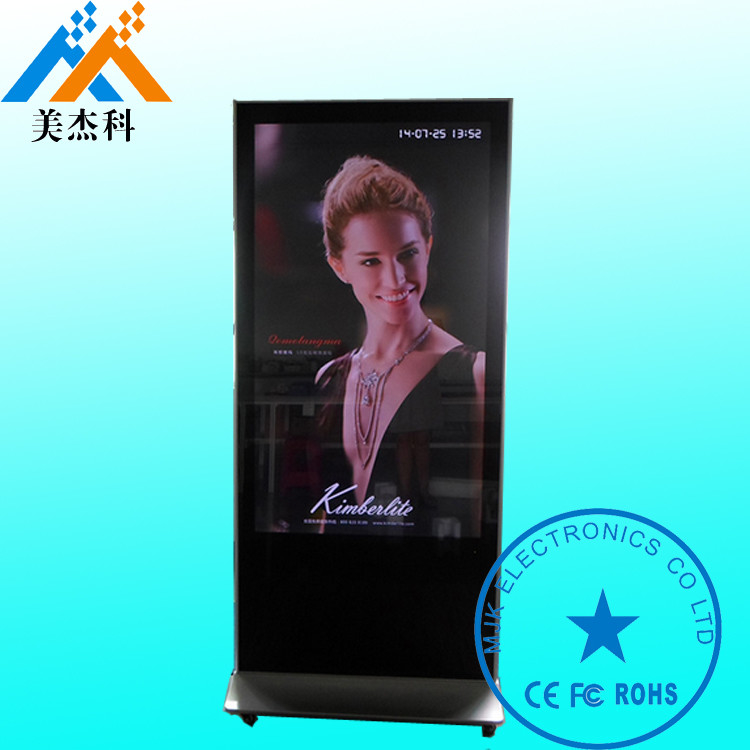

High Resolution 42 Inch 1080P Outside Digital Signage Touch Screen / Totem Lcd Display
Quick Detail:
Place of original: Shenzhen Guangdong China(mainland)
creen size: 42 "
Resolution: 1920 (RGB) × 1080 [FHD]
Brightness (cd / m2): 500 (Typ.)
Best angle: full view
Viewing angle: 89/89/89/89 (Min.) (CR≥10)
Point distance: 0.227mm (H) x 0.227mm (W)
Number of colors: 16.7M / 1.07B, 95% [CIE1931]
Screen Weight: 6.30Kgs (Typ./Max.)
Signal system: LVDS (2 ch, 10-bit), terminal, 51 pins
Maximum rated: Storage temperature: -20 ~ 60 ° C Operating temperature: 0 ~ 50 ° Cw
Response speed: 6 (Typ.) (G to G) ms
Backlight type: WLED, 30K hours, no drive
CPU: RK3288, quad-core, frequency 1.6GHz
Memory: 1 / 2G (optional)
Built-in memory: EMMC FLASH 8G (optional)
Built-in ROM: 2KB EEPROM
Decoding resolution: up to 1080P
Operating system: Android 4.4 above
Play mode: support for the cycle, timing, spots and other playback modes
Network support: 3G, Ethernet, WiFi support, wireless peripherals expansion
Video playback: support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 and so on
Picture format: support BMP, JPEG, PNG, GIF
Description:
Ⅰ, Material support:video(1080P),music,picture,txt,ppt,excel,word,pdf,webpage etc.
Ⅱ, Multiple timer switch can be set
Ⅲ, Easy to remotely control all the terminal by server
Ⅳ, Support split screen, such as video, logo, date, week, news, weather, subtitles etc, and all of them can be displayed on the terminal simultaneously
Ⅴ, Power off memory: continuous previous play when power on
Ⅵ, Playing logs: keep all playing records automatically
Ⅶ, Advertising insert function
Ⅷ, Static text, rolling text and rolling caption are supported.
Ⅸ, Support real-time control and remote update and upgrade by server
Main Features
Ⅰ, Outer shell is made of extra good quality of metal material, which is painted by powder-spray craft
Ⅱ, Support shockproof and dust proof function.
Ⅲ, Locking system for anti-thieves, prevented the storage devices ( SD/CF cards ) and whole machine from being stolen.
Ⅳ, Support all kinds of APP in Android OS.
Ⅴ, Support cameras , printers, etc...
Ⅵ, Switch on automatically loop playback, support files in mixed , pictures, video, music.
Ⅶ, Automatic power-on/off, rolling caption, time display, playlists, vertical/horizontal screen, time and volume functions etc...
Applications:
Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations:Telecommunications, post offices, hospital, schools
Public Places:subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums,
museums, convention centers, ticket agencies, HR market, lottery centers;
Specifications :
| LCD Spec. | LCD Panel Type | 42Inch, 16:9 |
| LCD Resolution | 1920*1080 | |
| Viewing Angle | 178°/178° | |
| Color | 16.7M | |
| Response Time | 6ms | |
| Contrast Ration | 3000:1 | |
| Brightness(cd/m2) | 500 |
| Player spec. | Processor | ARM based Multimedia processor |
| Network | 10/100 Mbps Fast Ethernet | |
| Storage | Default 8GB SD card (Maximum up to 128GB) | |
| Wireless | Built-in module of WiFi 802.11b/g or 3G (Optional) | |
| USB Host |
USB2.0 x 1, USB1.0 x 1
|
|
| Power Input | AC 100V~240V 50/60 Hz |
|
Software Spec. |
Media Support |
Video / Audio / Picture / Scrolling text/Streaming Video |
|
Video format |
MOV, AVI, MP4, DVD, ASF, WMV, MKV, RM, RMVB, TS, DAT, MPG, MPEG,VOB |
|
|
Audio format |
MP3, WMA, WMA Pro, AAC, ADPCM, OGG Vorbis, Dolby Digital AC3, Dolby Digital Plus, FLAC |
|
|
Picture format |
JPEG, BMP, GIF, PNG, TIFF |
|
|
Scrolling Message (Ticker) |
Horizontal, Adjustable speed, effect, font and background color |
|
|
Local Time and Date |
Support |
|
|
Multiple Zones Display |
Support multiple zones on screen |
|
|
Others |
Player Dimension |
794 x 484 x 110 mm |
|
Power Consumption |
120W |
|
|
Environmental Factors |
Operating temperature: 0-55°C |
|
|
Relative humidity: 20%-80% |
||
|
Color |
Silver, Black or any other color |
|
|
Speaker |
built with 2 stereo speaker |
|
|
Accessories |
Wall-mount plate, Remote, Key, Power Cord |
|
|
Certification |
CE, RoHS, FCC |
FAQ:
1) Q:What is the minimum order quantity?
A: Qty: 1 unit. Different order quantity different price.
2) Q:What payment methods your company accept?
A:We accept most often payment methods,but mainly accept bank wire transfer T/T, L/C at sight, Western Union.
3) Q:How long is the warranty time for your products?
A: We warranty 1 year for all of our products and supply life-time maintenance.
Our products are sold all over the world, you can rest assured.
