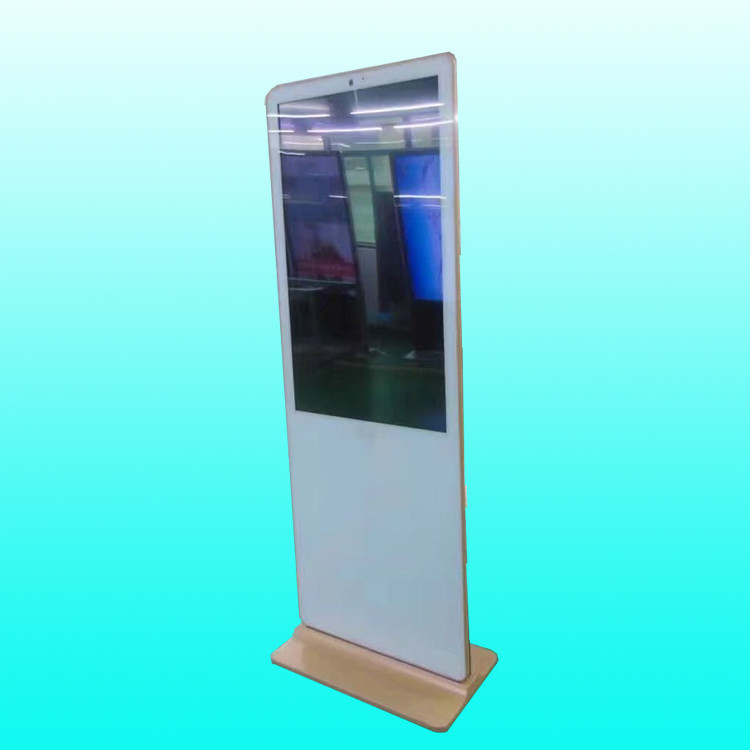

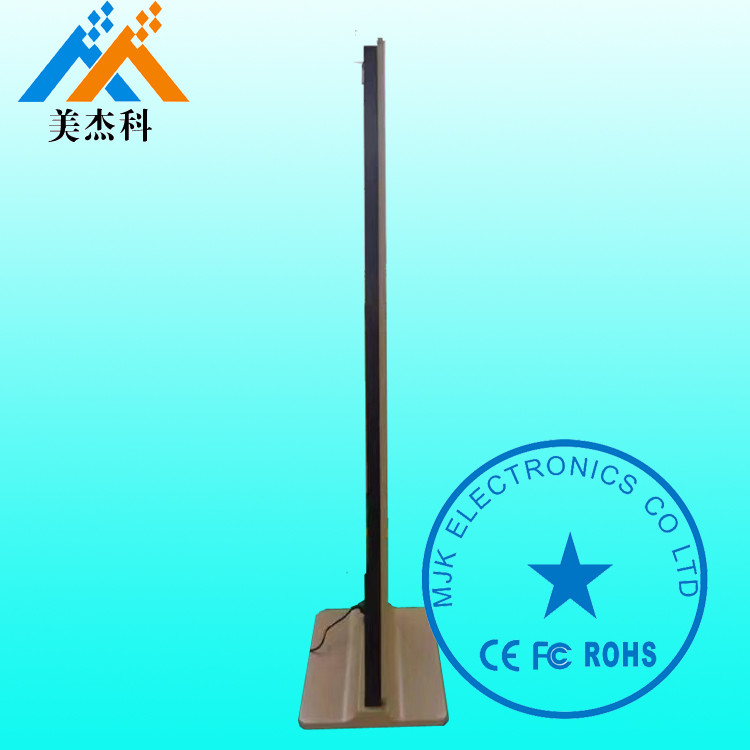

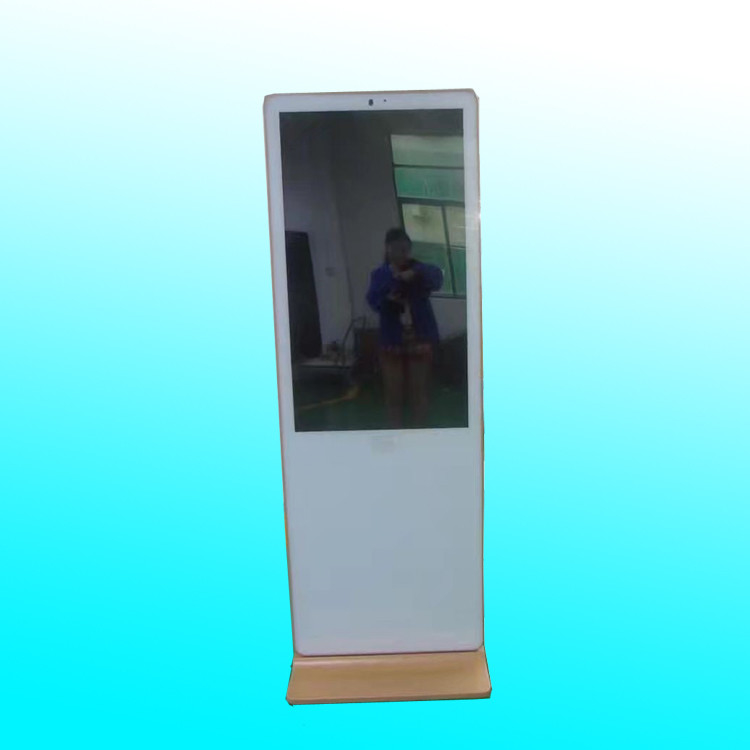

Ultra Thin Touch Screen Kiosk , Stand Alone Digital Signage Display For Supermarket

Ultra Thin Touch Screen Kiosk , Stand Alone Digital Signage Display For Supermarket

  • High Light

    self service kiosks

    ,

    digital information display

  • Viewing Angle
    178/178
  • Screen Brand
    LG Etc
  • Resolution
    1920*1080P
  • Color
    Red Black Etc
  • OS
    Windows Or Android
  • Brightness
    500cd
  • Place of Origin
    china
  • Brand Name
    MJK
  • Certification
    CE,Rohs
  • Model Number
    MJK-AD50TKF
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiate
  • Packaging Details
    Packed in carton firstly,and then reinforced with wooden case for outer packing
  • Delivery Time
    3-25days
  • Payment Terms
    T/T
  • Supply Ability
    5000pcs/Month

Ultra Thin Touch Screen Kiosk , Stand Alone Digital Signage Display For Supermarket



Ultra Thin Touch Screen Kiosk , Stand Alone Digital Signage Display For Supermarket









Quick Detail:

Place of original: Shenzhen Guangdong China(mainland)

creen size: 42 "
Resolution: 1920 (RGB) × 1080 [FHD]
Brightness (cd / m2): 500 (Typ.)
Best angle: full view
Viewing angle: 89/89/89/89 (Min.) (CR≥10)
Point distance: 0.227mm (H) x 0.227mm (W)
Number of colors: 16.7M / 1.07B, 95% [CIE1931]
Screen Weight: 6.30Kgs (Typ./Max.)
Signal system: LVDS (2 ch, 10-bit), terminal, 51 pins
Maximum rated: Storage temperature: -20 ~ 60 ° C Operating temperature: 0 ~ 50 ° Cw
Response speed: 6 (Typ.) (G to G) ms
Backlight type: WLED, 30K hours, no drive

CPU: RK3288, quad-core, frequency 1.6GHz
Memory: 1 / 2G (optional)
Built-in memory: EMMC FLASH 8G (optional)
Built-in ROM: 2KB EEPROM
Decoding resolution: up to 1080P
Operating system: Android 4.4 above
Play mode: support for the cycle, timing, spots and other playback modes
Network support: 3G, Ethernet, WiFi support, wireless peripherals expansion
Video playback: support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 and so on
Picture format: support BMP, JPEG, PNG, GIF




Description:



  1. Upgrade contents of Built-in memory by remote internet PC control
  2. connected by LAN or WIFI or 3G 4G
  3. Timer function: the player turns on/off at the same time everyday according to your setting
  4. Play mp4 movie, mp3 music and digital photos; Built-in 55 inch TFT LCD screen, with tempered glass protection
  5. --Built-in memory
  6. Upgrade contents of Built-in memory by remote internet PC control
  7. Timer function: the player powers on / off automatically everyday at the time pre-set; It can also automatically play and non-stop replay within the pre-set time frame



Main Features



  1. High quality fabricated frame and case manufactured in steel, aluminium
  2. or stainless steel.The colour and design can be customised to suit your
  3. requirements.
  4. Fitted with high transparent tempered safety glass to protect the screen
  5. surface. 2mm to 8mm thickness available.
  6. Can be fixed on the ground by screws to protect the player being pushed
  7. down by people.
  8. Commercial quality Grade A LED & LCD screens from top brands such as
  9. , LG, Auo etc.

Applications:



Application fields: Widely used in the bus, building and lift room, supermarket, public places, train etc



Specifications :



LCD Spec.

LCD Panel Type

42Inch, 16:9

LCD Resolution

1920*1080

Viewing Angle

178°/178°

Color

16.7M

Response Time

6ms

Contrast Ration

3000:1

Brightness(cd/m2)

500

Player Spec.

Processor

ARM based Multimedia processor

Network

10/100 Mbps Fast Ethernet

Storage

Default 8GB SD card (Maximum up to 128GB)

Wireless

Built-in module of WiFi 802.11b/g or 3G (Optional)

USB Host

USB2.0 x 1, USB1.0 x 1



Power Input

AC 100V~240V 50/60 Hz

Software Spec.

Media Support

Video / Audio / Picture / Scrolling text/Streaming

 Video

Video format

MOV, AVI, MP4, DVD, ASF, WMV, MKV, RM, RMVB, TS,

 DAT, MPG, MPEG,VOB

Audio format

MP3, WMA, WMA Pro, AAC, ADPCM, OGG Vorbis,

 Dolby Digital AC3, Dolby Digital Plus, FLAC

Picture format

JPEG, BMP, GIF, PNG, TIFF

Scrolling Message (Ticker)

Horizontal, Adjustable speed, effect, font and

background color

Local Time and Date

Support

Multiple Zones Display

Support multiple zones on screen

Others

Player Dimension

794 x 484 x 110 mm

Power Consumption

120W

Environmental Factors

Operating temperature: 0-55°C

Relative humidity: 20%-80%

Color

Silver, Black or any other color

Speaker

built with 2 stereo speaker

Accessories

Wall-mount plate, Remote, Key, Power Cord

Certification

CE, RoHS, FCC





Competitive advantages:

1.Superior Service : Synergy clients handle shipment after all the products problems

2.Professional:We are manufacturer in advisement since 2007.

3.Excellent team. All the sales in our international sales team own a univerity degree. They have good condition in English, be full of enthusiasm, diligent and responsible for customers.

4. All the products we will check the quality before delivery no matter the samples or bulk order.
