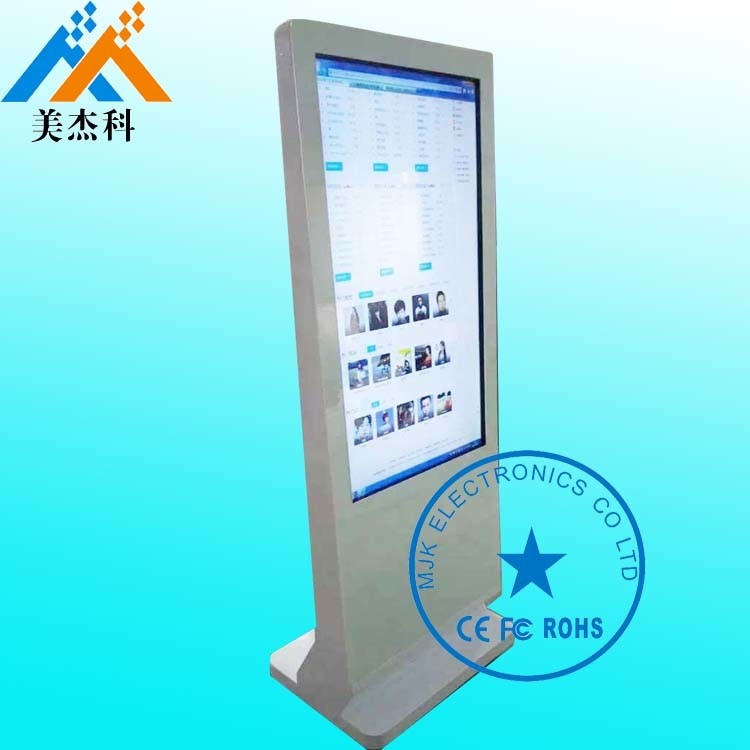

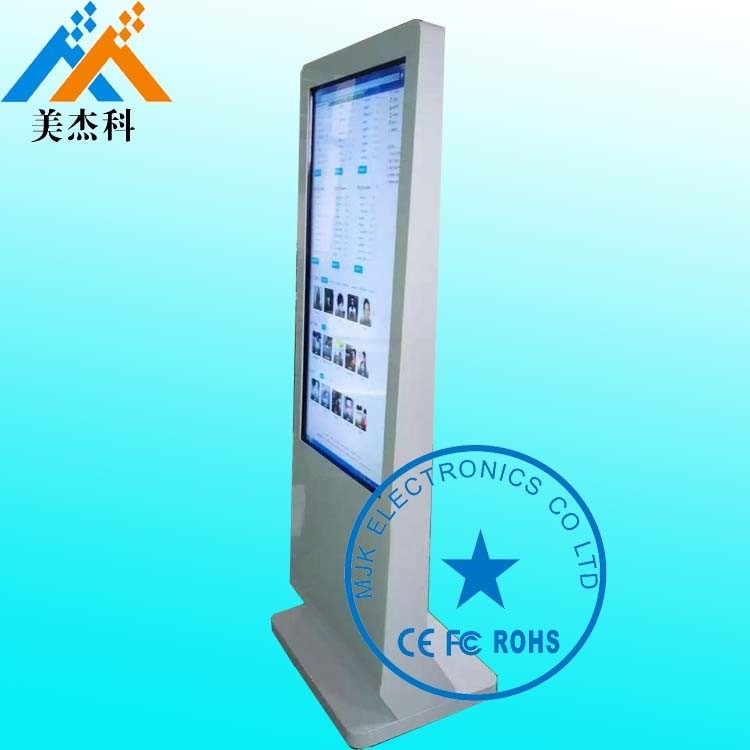

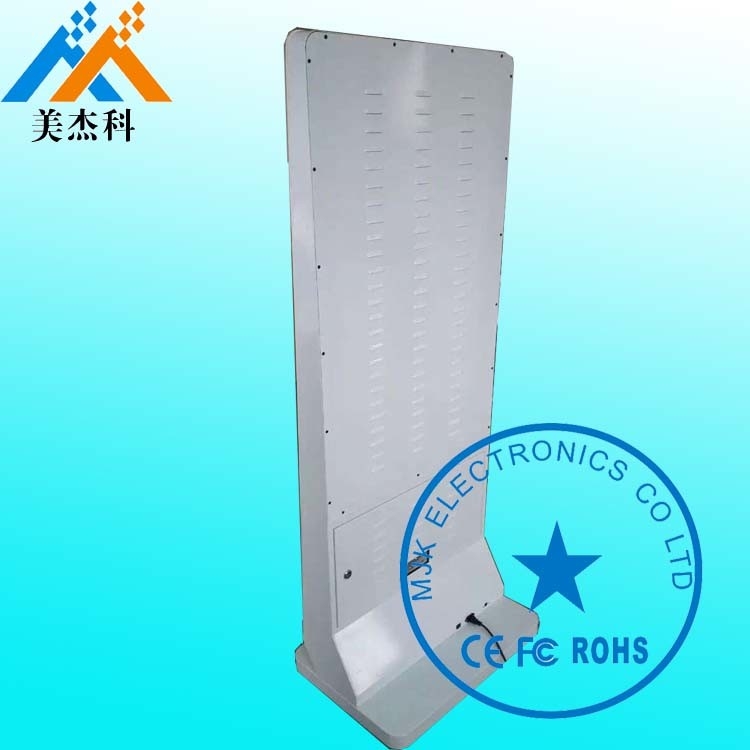

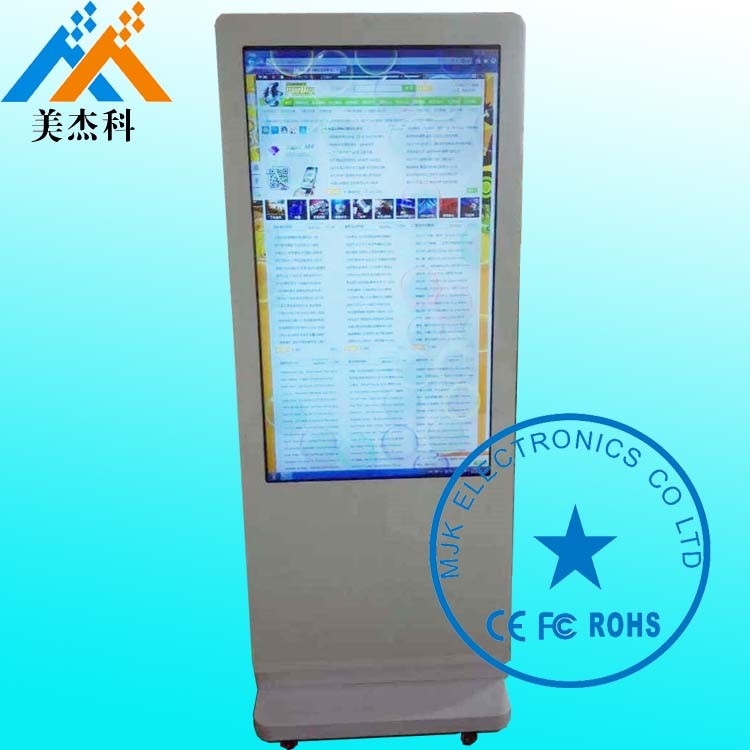

HD Touch Screen Digital Signage Screen , Digital Signage Outdoor Windows OS

HD Touch Screen Digital Signage Screen , Digital Signage Outdoor Windows OS

  • High Light

    self service kiosks

    ,

    digital information display

  • OS
    Windows
  • Resolution
    1920*1080P
  • Brightness
    500cd
  • Color
    Silver Red Etc
  • Viewing Angle
    178/178
  • Response
    5s
  • Place of Origin
    china
  • Brand Name
    MJK
  • Certification
    CE,Rohs
  • Model Number
    MJK-AD46TKF
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiate
  • Packaging Details
    Packed in carton firstly,and then reinforced with wooden case for outer packing
  • Delivery Time
    3-25days
  • Payment Terms
    T/T
  • Supply Ability
    5000pcs/Month

HD Touch Screen Digital Signage Screen , Digital Signage Outdoor Windows OS



HD Touch Screen Digital Signage Screen , Digital Signage Outdoor Windows OS





Quick Detail:





  1. Place of original: Shenzhen Guangdong China(mainland)
  2. creen size: 42 "
  3. Resolution: 1920 (RGB) × 1080 [FHD]
  4. Brightness (cd / m2): 500 (Typ.)
  5. Best angle: full view
  6. Viewing angle: 89/89/89/89 (Min.) (CR≥10)
  7. Point distance: 0.227mm (H) x 0.227mm (W)
  8. Number of colors: 16.7M / 1.07B, 95% [CIE1931]
  9. Screen Weight: 6.30Kgs (Typ./Max.)
  10. Signal system: LVDS (2 ch, 10-bit), terminal, 51 pins
  11. Maximum rated: Storage temperature: -20 ~ 60 ° C Operating temperature: 0 ~ 50 ° Cw
  12. Response speed: 6 (Typ.) (G to G) ms
  13. Backlight type: WLED, 30K hours, no drive



  • CPU: RK3288, quad-core, frequency 1.6GHz
  • Memory: 1 / 2G (optional)
  • Built-in memory: EMMC FLASH 8G (optional)
  • Built-in ROM: 2KB EEPROM
  • Decoding resolution: up to 1080P
  • Operating system: Android 4.4 above
  • Play mode: support for the cycle, timing, spots and other playback modes
  • Network support: 3G, Ethernet, WiFi support, wireless peripherals expansion
  • Video playback: support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 and so on
  • Picture format: support BMP, JPEG, PNG, GIF




Description:



Outer shell is made of extra good quality of metal material, which is painted by powder-spray craft
Support shockproof and dust proof function.
Locking system for anti-thieves, prevented the storage devices ( SD/CF cards ) and whole machine from being stolen.



Image playback: rotate, slide show, background music etc...

Support 5 groups of auto power-on/off timer, able to set those 5 groups of time 1 day and 7 days in 1week.

Automatically generate play logs, file playback status query



Main Features



Can set several assistant of administrator with limits of authority.

Can set fixed time download, real-time download. And keep broadcasting when downloading.

Support terminal set password, for protect viciously control from outside

Auto eliminate blur function, long life span.

Auto adjust the VGA image reproduction rate.

Quick response time 6ms,no trailing effect.

Multi data-image adjustment circuit, low image distortion.

Applications:



Application fields: public places ,for example, shopping mall, restaurant, airport, square, commercial building





Specifications :



LCD Spec.

LCD Panel Type

42Inch, 16:9

LCD Resolution

1920*1080

Viewing Angle

178°/178°

Color

16.7M

Response Time

6ms

Contrast Ration

3000:1

Brightness(cd/m2)

500

Player Spec.

Processor

ARM based Multimedia processor

Network

10/100 Mbps Fast Ethernet

Storage

Default 8GB SD card (Maximum up to 128GB)

Wireless

Built-in module of WiFi 802.11b/g or 3G (Optional)

USB Host

USB2.0 x 1, USB1.0 x 1



Power Input

AC 100V~240V 50/60 Hz

Software Spec.

Media Support

Video / Audio / Picture / Scrolling text/Streaming

 Video

Video format

MOV, AVI, MP4, DVD, ASF, WMV, MKV, RM, RMVB, TS,

 DAT, MPG, MPEG,VOB

Audio format

MP3, WMA, WMA Pro, AAC, ADPCM, OGG Vorbis,

 Dolby Digital AC3, Dolby Digital Plus, FLAC

Picture format

JPEG, BMP, GIF, PNG, TIFF

Scrolling Message (Ticker)

Horizontal, Adjustable speed, effect, font and

background color

Local Time and Date

Support

Multiple Zones Display

Support multiple zones on screen

Others

Player Dimension

794 x 484 x 110 mm

Power Consumption

120W

Environmental Factors

Operating temperature: 0-55°C

Relative humidity: 20%-80%

Color

Silver, Black or any other color

Speaker

built with 2 stereo speaker

Accessories

Wall-mount plate, Remote, Key, Power Cord

Certification

CE, RoHS, FCC





FAQ:



1. Q: Are you a factory?
A: Yes, we are a factory, we have our own production line.
2. Q: what's your products' quality control?
A: Our tenet is "Quality first, Prestige first". We are pay more attention to the beginning till the very end of the production. Our products have passed the CE & ROHS & ISO & FCC etc. certification.
3. Q: What's your after-sale service?
A: We can offer 100% guarantee on our product. If any problems, you will get our reply within 24 hours.
4. Q: What's your MOQ?
A: Generally, our MOQ is 1 pcs. But the greater the quantities , the bigger the discount .
5. Q: Could you offer the OEM service?
A: Yes, we can provide the OEM service if our customer requested.
6. Q: How about the delivery?
A: The delivery would be with in 3-15 days according to the order quantity and size of the items.
