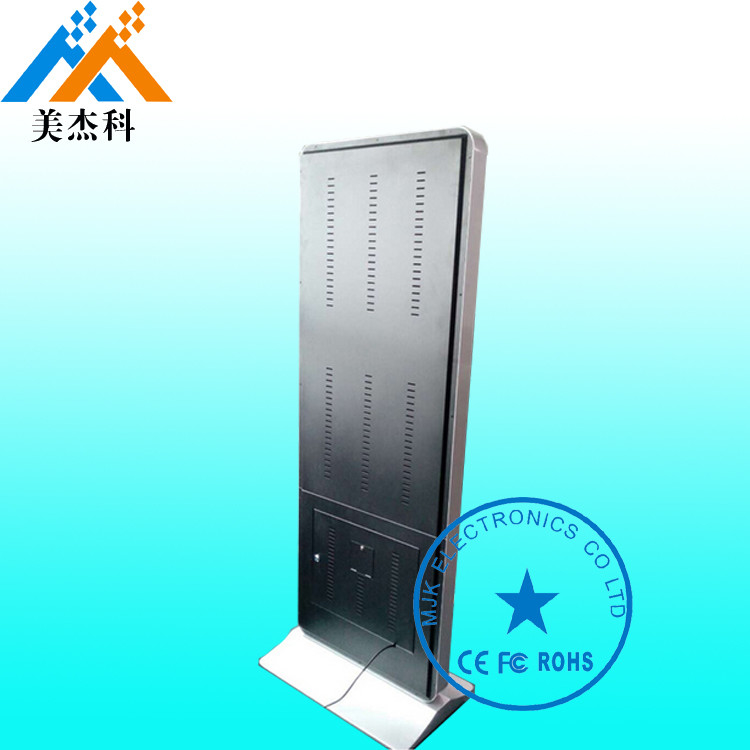

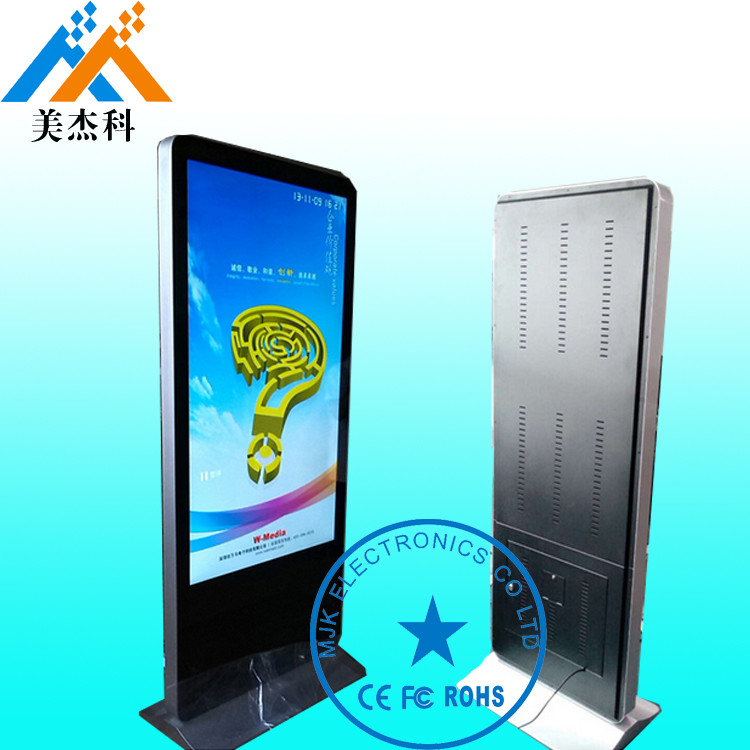

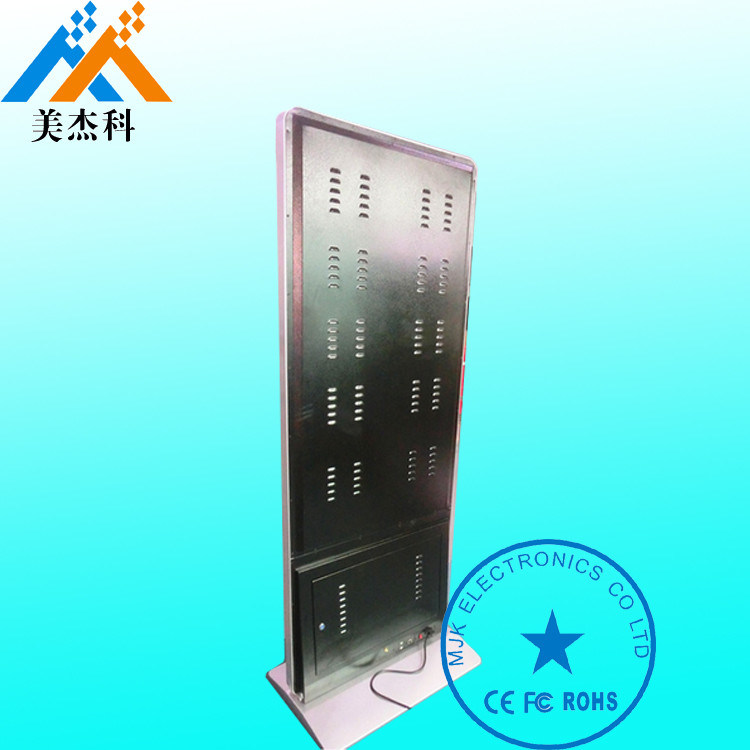

HD High Resolution Touch Screen Digital Signage Kiosk For Movie Theatre
Quick Detail:
|
Place of original: Shenzhen Guangdong China(mainland) creen size: 42 " Resolution: 1920 (RGB) × 1080 [FHD] Brightness (cd / m2): 500 (Typ.) Best angle: full view Viewing angle: 89/89/89/89 (Min.) (CR≥10) Point distance: 0.227mm (H) x 0.227mm (W) Number of colors: 16.7M / 1.07B, 95% [CIE1931] Screen Weight: 6.30Kgs (Typ./Max.) Signal system: LVDS (2 ch, 10-bit), terminal, 51 pins Maximum rated: Storage temperature: -20 ~ 60 ° C Operating temperature: 0 ~ 50 ° Cw Response speed: 6 (Typ.) (G to G) ms Backlight type: WLED, 30K hours, no drive |
|
CPU: RK3288, quad-core, frequency 1.6GHz (Optional) Memory: 1 / 2G (optional) Built-in memory: EMMC FLASH 8G (optional) Built-in ROM: 2KB EEPROM Decoding resolution: up to 1080P Operating system: Android 4.4 above Play mode: support for the cycle, timing, spots and other playback modes Network support: 3G, Ethernet, WiFi support, wireless peripherals expansion Video playback: support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 and so on Picture format: support BMP, JPEG, PNG, GIF |
Main Features:
Available Size: 24" , 26", 32", 37", 42",46",47", 52", 55", 65", 70", 82".etc.
Outer shell is made by high-class metal material,black or silver color etc, back-fixing mode with nice appearance. Outer shell color can be customized.
With a protection layer of ultrathin, high light, perfectly clear tempered glass on the surface of the LED screen to protect the screen being damaged.
Choosing , LG, AUO, etc. LCD panels. A Class 335 standard, full new and factory original packing screen.
Support software updating, new function can be customized according to customer’s needs.
Description:
Outer shell is made of extra good quality metal material, which is painted by powder-spray craft work.
Support shockproof and dust proof function.
Adopts high transparent tempered glass (2- 6mm) as protection layer toprevent lcd/led panel being broken or distorted.
Locking system for anti-thieves, prevented the storage devices ( SD/CF cards ) from being stolen.
Support IR Remote controller, user can use remote controller to operate the whole lcd.
Applications:
Application fields: Widely used in the bus, building and lift room, supermarket, public places, train etc
Specifications :
⑴
| LCD Spec. | LCD Panel Type | 42Inch, 16:9 |
| LCD Resolution | 1920*1080 | |
| Viewing Angle | 178°/178° | |
| Color | 16.7M | |
| Response Time | 6ms | |
| Contrast Ration | 3000:1 | |
| Brightness(cd/m2) | 500 |
| Player spec. | Processor | ARM based Multimedia processor |
| Network | 10/100 Mbps Fast Ethernet | |
| Storage | Default 8GB SD card (Maximum up to 128GB) | |
| Wireless | Built-in module of WiFi 802.11b/g or 3G (Optional) | |
| USB Host |
USB2.0 x 1, USB1.0 x 1
|
|
| Power Input | AC 100V~240V 50/60 Hz |
| Software Spec. | Media Support |
Video / Audio / Picture / Scrolling text/Streaming Video |
| Video format |
MOV, AVI, MP4, DVD, ASF, WMV, MKV, RM, RMVB, TS, DAT, MPG, MPEG,VOB |
|
| Audio format |
MP3, WMA, WMA Pro, AAC, ADPCM, OGG Vorbis, Dolby Digital AC3, Dolby Digital Plus, FLAC |
|
| Picture format | JPEG, BMP, GIF, PNG, TIFF | |
| Scrolling Message (Ticker) |
Horizontal, Adjustable speed, effect, font and background color |
|
| Local Time and Date | Support | |
| Multiple Zones Display | Support multiple zones on screen |
⑵
| Others | Player Dimension | 794 x 484 x 110 mm |
| Power Consumption | 120W | |
| Environmental Factors | Operating temperature: 0-55°C | |
| Relative humidity: 20%-80% | ||
| Color | Silver, Black or any other color | |
| Speaker | built with 2 stereo speaker | |
| Accessories | Wall-mount plate, Remote, Key, Power Cord | |
| Certification | CE, RoHS, FCC |
