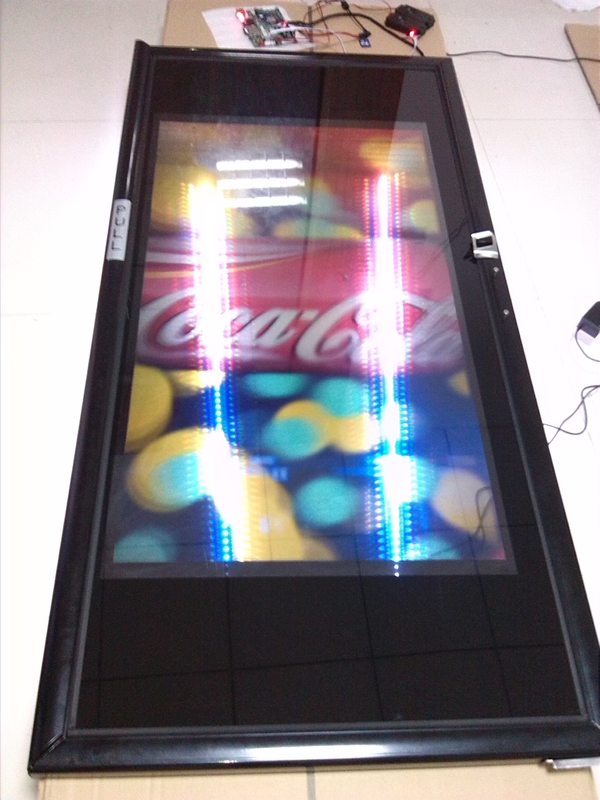

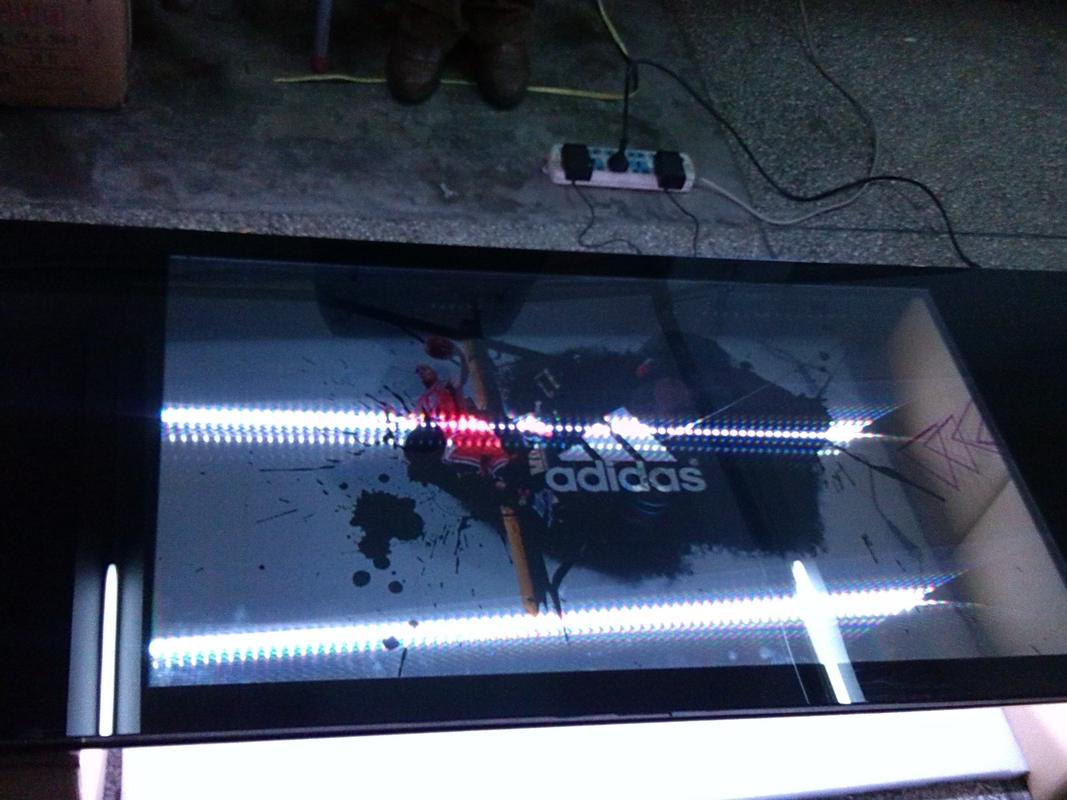

High Speed 46 Inch Transparent LCD Display Advertising With CF card / SD card / USB
Quick Detail:
1. LG//AUO/BOE transparent LCD panel
2. Acrylic cooler door
3. Full HD 1080P
4. Flexible size and customization
5. convenient use, delicate appearance.
6. 3G&wifi option Support Transparent video and picture display
Description:
Transparent LCD Display: The inside exhibit can be seen while the pictures or vedios are displayed. It will strength cunstomer’s experience on product brand with the combination of dynamic information and the actual product display.
Surface Structure: Acrylic cove
Dimesions: 12.1'', 15''-65''
Compatible foramts: MPEG1,MPEG2,MPEG4,MP3,AVI,JPEG
Storage type: CF card/SD card /USB
Features
LVDS interface with 2 pixel / clock
High-speed response
Low color shift image quality
8-bit color depth, display 16.7M colors
High luminance and contrast ratio, low reflection and wide viewing angle
DE (Data Enable) only mode
ADS technology is applied for high display quality
RoHS compliant
Applications:
Cooler Door
Specifications :
|
Specification |
|
|
Model No. |
MJK-AD46T |
|
Panel size |
46’’ Transparent panel |
|
Display area(mm)/mode |
1018.08(H) × 572.67(V) |
|
Maximum resolution |
1920(H) × 1080(V) |
|
Display color |
16.7M(8bits-true) |
|
Pixel Pitch(mm) |
176.75(H) × RGB× 530.25(V) |
|
Brightness (nits) |
200nits |
|
Contrast |
500:1 |
|
Visual angle |
160°/160° |
|
Response time |
6ms |
|
Life(hrs) |
50,000(hrs) |
|
Input and output |
|
|
LAN |
RJ45 (for Network version) |
|
WIFI Module |
1 (for Network version) |
|
USB |
1 |
|
SD |
1 |
|
Speaker |
2×5W(9Ω) |
|
Video |
|
|
Color system |
PAL/NTSC/SECAM |
|
Remote controller |
IR Remote Controller |
|
OSD display( screen menu display) |
|
|
Menu language |
Chinese/English |
|
Power |
|
|
Power supply |
AC100~240V 50 /60 HZ |
|
Maximum power consumption |
40W |
|
Standby power consumption |
1W |
|
Temperature |
|
|
Working temperature |
0°C~50°C |
|
Storage temperature |
-20°C~60°C |
|
Working humidity |
85% |
|
Storage humidity |
85% |
|
Appearance |
|
|
Color/appearance |
White,black,customized |
|
Case |
Metal and glass |
|
Installation |
Wall mount |
|
Quality Standard |
ISO9001 |
Competitive advantages:
The inside exhibit can be seen while the pictures or videos are displayed on LCD screen. To attract customer's attention on product brand with the combination of dynamic information and the actual product display.
MJK exquisite Transparent Video Showcase can be used in many applications: Jewelry, Gem Stone, Watch, Wine bottle, Cosmetics, Perfume set, Digital Camera, IPad/Mac book, Hand bag, High heel, and Museum Craft, etc.
Our products are sold all over the world, you can rest assured.
