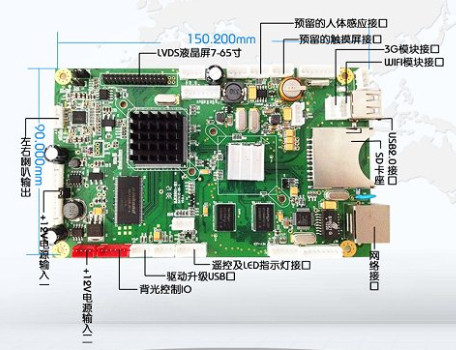

Linux System LCD PCB Board For Advertising Display
Quick Detail:
1 , the system platform is based on the Android version 4.0.4 and above. It's instead of the clunky
desktop PC entertainment functions, platform with standard
The advantage of accurate, openness.
2 , use A20 master, ARM architecture -A8 1.5 G nuclear device.
3 , support multitouch, resistor, capacitor, as well as the infrared touch screen.
4 , support 1920 * 1080 hd resolution, more than 1080 p hd video and image decoding.Built-in H
DMI1.4 ,support 1080P output and 3D output
5 , Mali - 400 MP graphics Unit , it can provide 2D and 3D acceleration. The performance can be
up to 1080P parsing.
6 , support full format flash play .Video decoding is as high as 2160P, perfectly match the resolution
of the new large size TV.
7 , through the HDMI interface, directly connected to TV, no need HDMI cable. Taking up less space.
8 , built-in WiFi802.11 b/g, wireless Internet access.
9 , Support the operation of the application software for the standard Android market.Built-in
G - Sensor support huge number of games under the Android platform which can be used
after installation!
10 , With 2.4 G wireless remote control. Operation is easy & flexible.UDP can be hidden anywhere
in the TV .
11 , using wifi, you can browse any website and make TV online so easy
12 , built-in Adobe Flash function. Can support online video playback, Internet radio, network television,
and so on!
13 ,The hardware using the A8 platform customization motherboard based on ARM , low power consumption,
high cost performance.
The stabilityof the system is good.The frequency can reach 1.5 GHZ.
14 , support the remote network management of the background to the terminal layout and application .
15 , support the remote session timer switch machine and split screen playback function.
Description:
1 . The system is based on the android 4.0 platform. The interface is beautiful which can support
mass android applications
2 . Support LAN/ WAN, wired/wireless wifi function (optional) / 3 g function (optional)
3 . Providing free backstage operation of server, quick, do not need to install, simple and efficient,
easy to use
4 . Real-time management and control for all terminal, monitoring the playlist terminals and node
information. Multimode distributed, and fast, easy, supporting breakpoint resume and batch
download, grouping download, play and download
5 . Supporting video /picture/text roll tities, HD arbitrarily split screen play and mixed full-screen playback
6 . Hardware automatic recovery function, low power consumption, energy conservation and
environmental protection.
7 . Custom text Settings can choose font size or background colors
8 . Independent data transmission channel, non-interference for these channelr.
To ensure the independence and stability of data transmission.
9 . PlayING function including playlist/inter-cut/grouping playing/timing inter-cut/designated spots / A key
off , Platform to realize classification authority, report generation automatic, full control vehicle streaming
media terminal
10 . Free maintenance for client-side, remote upgrade online, upgrade automatically. The encryption
security, multi-preriod allocate, and self-inspection and remote control,multi-preriod timing switch.
The background monitoring terminal equipment. Breakpoint memory function.
11 . Customized function as per customers’ request.
Applications:
Our LCD digital signage displays are widely used in Business Organizations, Financial Organizations,
Non-profit Organizations, Public Places, Real Estate Property, Entertainments, etc.
Specifications :
CPU mode |
8901,1.5GHZ |
Memory |
1GDDR3 |
Internal memory |
NAND FLASH4G |
Decoding resolution |
Max 1080P |
Operation system |
Linux |
Playing mode |
Support cycle time slots and various playback mode |
Network support |
Ethernet, support WIFI, wireless |
Video playing |
Support WMV/AVI/FLV/RM/RMVB/MPEG/TS/MP4 |
Image format |
BMP/JPEG/PNG/GIP |
USB2.0 port |
2*USB HOST |
Ethernet |
one,10M/100M |
LVDS output |
one,can drive LCD of 50/60Hz directly |
HDMI output |
one, support 1080P |
Audio input /output |
Support CVBS video input,right channel support dual channel 4R/6W,8R/3W speaker |
RTC real time alarm |
support |
Timer switch |
support |
System update |
Support USB/Tf card/network update |
Memory port |
TF card, date storage, max 32G |
Competitive advantages:
-- Support Scroll text
-- Can turn on or off advertising player automatically on schedule
-- Play advertising program circularly and automatically
-- Build-in clock and calendar function
-- Audio system: build-in two speakers stereo
