65 inch Classroom electronic blackboard allinone lcd touch screen interactive whiteboard
| Panel | Screen Size | 65" |
| Display Ratio | 16:9 | |
| Lightsource/ Backlight | DLED | |
| Resolution (pixels) | UHD 3840*2160 4K | |
| Brightness (Typical) | 350 cd/m² | |
| Contrast Ratio (Typical) | 5,000:1 | |
| Viewing Angel | 178°/178° | |
| Response Time (ms) | 3~8ms | |
| Color Gamut (x% NTSC) | 65% | |
| Panel Bit (8 or 10) | 10 bits, 16.7M | |
| Backlight Life (Typical) | 80,000 hours | |
| OS | Android | Android OS |
| Windows | Windows 7/8/10 | |
| CPU: intel i3( i5/i7 optional) | ||
| RAM 4G+ 120GB SSD (500GB HDD optional) | ||
| Glass | Tempered Glass | 4mm, Tempered Glass, M7 |
| Anti-Glare | Yes | |
| Touch | Touch Technology | IR Touch/ Infrared touch |
| Numbers of Touch | 10 points (UP to 32 points) | |
| Resolution (Points Area Function) | 32,767x32,767 | |
| Touch Tools | Fingers, touch pens or opaque objects | |
| Response Time | 3~8ms | |
| Positioning Accuracy | ±2mm (more than 90% touch area) | |
| Touch Lifetime | ≥80,000 hours | |
| Power | Voltage | 100V-240V, 50/60Hz |
| Wattage (Typical) | 310W | |
| Standby Power Consumption | ≤3W | |
|
Input
|
Input |
USB*5, VGA*1, MIC*1, TF*1, RF75Ω*1, RJ45*1 WIFI*1 D-SUB 9 Pin*1,VGA(D-SUB15pin)*1, HDMI*2, AV*2, YPbPr*1 |
| Output |
COAX*1, EARPHONE*1, AV*1, VGA (D-SUB15pin)*1 |
|
| OPS Interface |
RJ45*1, MIC*1, AUDIO LINE*1,USB3.0*2, USB2.0*4,HDMI*1, VGA*1, WIFI*1 |
|
| Mechanical | View Size(L*H)(mm) | 1430*804 |
| Screen Size(L*H*T)(mm) | 1515*935*103 | |
| Wall Mounting Size(L*H*T)(mm) | 650*215*35 | |
| Package Size (L*H*T) (mm) | 1680*1070*215 | |
| N.W. (KG) | 47 | |
| G.W. (KG) | 61 | |
| OSD | On-screen Display Language | Chinese & English |
| Accessories | Writing Pen | x1 |
| Remote Contro | x1 | |
| Instruction Manual | x1 | |
| Wall Mounting Bracket | x1 | |
| Power Cable | x1 | |

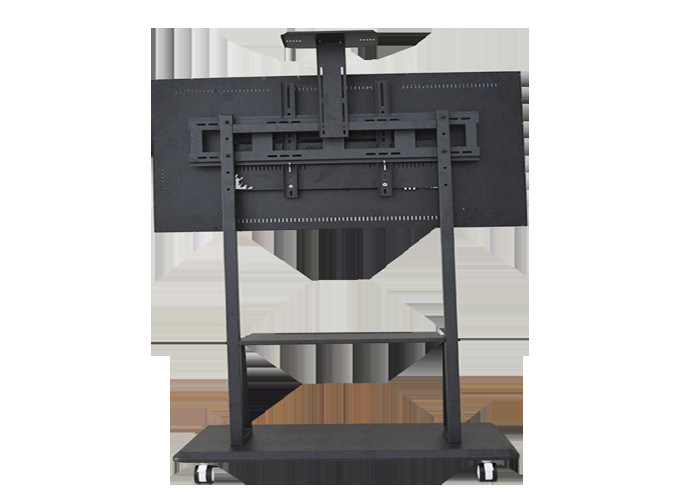

| Portabl Floor Standing Bracket | Optional |
