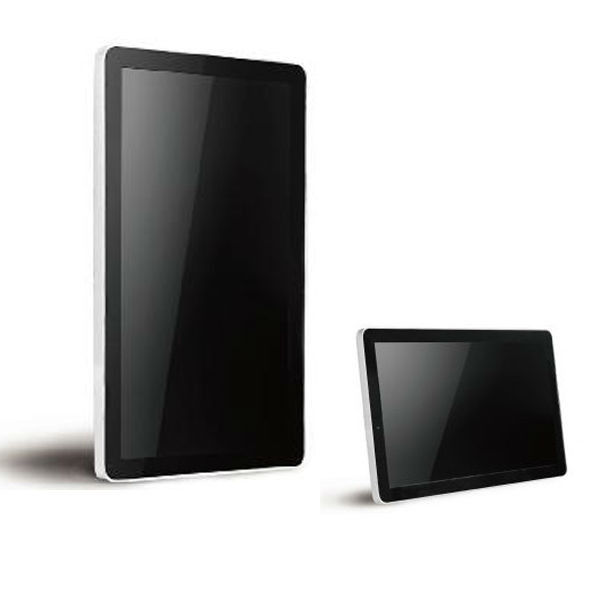

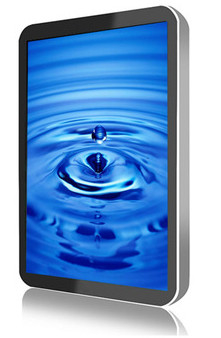

Android 19 Inch Ultra-Slim Vertical LCD Display With Split Screen And Looping Playback
Quick Detail:
1. Auto display when start on
2. Grade A , LG / / AUO brand LCD panel
3. Boot screen available
4. 3G & WIFI option
5. standard VESA, easy to install
6. toughened glass , metal shell, ultra-slim design.
Description:
19inch digital media LCD advertising display with split screen & 3G
WIFI/3G/LAN network management availabl, OEM/ODM order welcome
19inch digital media LCD advertising display with split screen & 3G
With Calendar Setting + Normal Function
- Digital Panel
- Cabinet: metal case
There is lock hole on the back.
- metal housing available in customized color, available in standard black, white, or silver.
- Brand New LCD TFT Panel: AUO, INNOLUX, CHIMEI, Sharp, Toshiba, , LG
- Supports Music, Photo, Auto Play, and Replay in Loop
- Multi Language OSD: English, Japanese, Chinese etc.
- Supports Slide Show (interval mode: Interval time with 1, 3, 5, 10, 30, 60 seconds).
- Play through USB (2.0) / SD (High Speed) / CF Card
- Playback mode: File and folder repeat, choose to repeat playback one file or all the files.
- USB Update Content Directly in CF/SD Card
- Build-in clock and calendar function in the system of player.
- BGM (background music) mode.
- Build-in 2 High Quality Stereo Speakers: 3W x 2
- Anti-burglar Lock system
- Support Shockproof and Dustproof Function
- Timer on/off function: Support 5 groups of auto power-on / off timer. It is able to be set 5 groups of times per day and 7 days in one week.
- Power supply: AC 100V~240V, 50Hz/60Hz, Output working Voltage: 12V 4A.
- Fixation & Bracket: VESA 100mm x 100mm.
- Accessories: Power Cable x 1, User Manual x 1, Bracket x 1, Remote Control x 1, Anti-Burglar Cable x 1 (Optional).
- Working temperature: 0~40C- Working humidity: 20%~80%
- Storage temperature: -20~60C
- Storage humidity: 10%~95%
- We can customize according to the different advertising projects
Applications:
Our LCD digital signage displays are widely used in Business Organizations, Financial Organizations, Non-profit Organizations, Public Places,Real Estate Property, Entertainments, etc.
Application field (A-Z):
Airport, Apartments, Auto dealerships, Banks, Bars, Beauty shops, Bookstores, Colleges and Universities, Clubs, Casinos,Chain shops, Commercial buildings, Convention centers, Corporate Communications, Country clubs, Department stores,Cruise Ships, Exclusive agency, Exhibition halls, Fitness Clubs, Fitness halls, Gas stations, Golf and Country Clubs,Golf course, Hospital, Hotels, HR market, Insurance companies, Internet bars, Large-scale shopping malls, Libraries,Large-scale sales, Lottery centers, Model rooms, Museums, Medical facilities, Massage rooms, Movie theaters, Offices,Offices buildings, Parks, Pharmacy, Post offices, Property brokers, Public venues, Restaurants, Real Estate Listings,Retail Stores, Schools, Ski Resorts, Stadiums, Sports Complexes and Arenas, Star-rated hotels, Supermarket, Stations,Subway, Toll stations, Telecommunications, Ticket agencies, Tourist Resorts, Train & bus stations, Travel agencies, Villas
Specifications :
LCD Panel |
Size |
19" |
Display ratio |
(16:10) |
|
Max. resolution |
1440×900 |
|
Viewable area |
408×255(mm) |
|
Dot pixel |
0.294(H) x 0.294(V)(mm) |
|
Brightness |
300cd |
|
Contrast |
(1000:1) |
|
Response time |
5ms |
|
Viewable angle |
160°/160° |
|
Max. color |
16.7M |
|
Backlight mode |
LED backlight |
|
Working life |
> 50000h |
|
Power supply |
AC100V~240V 50/60Hz |
|
Working environment |
Working temperature 0ºC~50ºC Working moisture20%~80%(no dewing phenomenon) |
|
Rating |
< 20W |
|
LCD GRADE |
|
Imported A grade industrial level LCD(LG//Chimei/AU),IPS,super bright,suitable for indoor also for outdoor; we never use B grade or second hand screens. |
FUNCTION |
Storage material |
Supports SD and USB and hot swap. |
Display contents |
Video,Music,Photo,roll titles. |
|
Playback modes |
Random broadcast, all repeated broadcast, the single repeated repetition. automatically boot looping. |
|
Supported formats |
MP4(AVI: DIVX/XVID), MPG2(DVD: VOB/MPG2), MPEG1(VCD: DAT/MPG1), MP3, JPG. |
|
Background music |
Supports photo display with background music. |
|
Language |
Chinese and English. other Languages can be developed. |
|
Video standard |
PAL,NTSC,Auto |
|
Solution |
HD advertising machine supports 1080P(resolution1920×1080 progressive scan)HD display. |
|
Time setting |
With calendar,supports 5 period time setting,7 days a week, 24hours per day, without special management. |
|
Power off memory |
Supports power off memory,when the power switches on, it will continue to play from the power failure point. |
|
Roll titles |
Easily establish a new text file, and input the roll titles in it. |
|
USB drive copy |
Automatically copy the files in USB drive into inside memory of the machine. |
|
Playlist |
To control the playback mode, playing order and set the playing time and playback times. |
|
Inter cut |
Can inter cut advertising files in different period due to your needs. |
|
Channel caption |
Support channel caption function: can set the company logo or name on the advertising files to enhance the reputation of brand. |
|
Play record |
Management can check the playing file at anytime and may copy the record into computer and play, accuracy to 1 second. |
|
Enclosure |
Surface material |
Hardened glass + aluminium frame + cold rolled steel body. |
Design and construction |
Langxin advertising machines are made of alloy enclosure and mirror glass, with high grade craftmanship, and delicate design; The alloy enclosure endures high temperature,aging resistant, and has portrait,landscape,wall mounted, free standing various shapes;We may also customise any shape due to special requests;The lock is well designed and rugged, the machine has good appearance in anti-shaking. |
|
Safety measures |
The surface of the LCD has a super thin high transparancy hardened glass which can protect the machine from vandalism; Anti-theft locks avoids the machine or the storage devices to be stolen. |
|
Built-in speakers |
2×8Ω/5W |
|
Package |
Package contents |
1x advertising machine,1x manual,1x remote controller, 1x wall mount bracket, 2x keys. |
Aftersale service |
Aftersale service |
One year warranty and life-long maintenance |
Competitive advantages:
MJK lcd digital signage ad players are with black full toughened glass to protect the LCD Panel,and also with decorative screws to make it perfect and luxury.Regarding the full-toughened glass, we adopt the silk-screen technology for better quality and appearance.This player is also designed with our own board for mounting function,and also with VESA holes for your own bracket.
