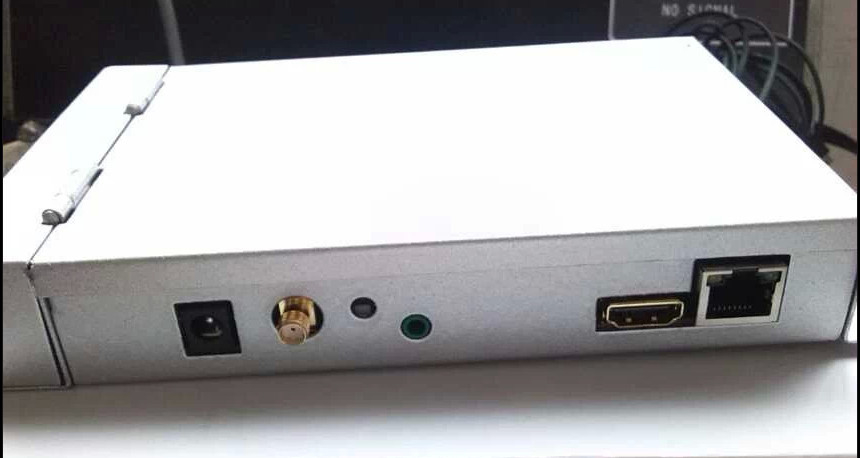

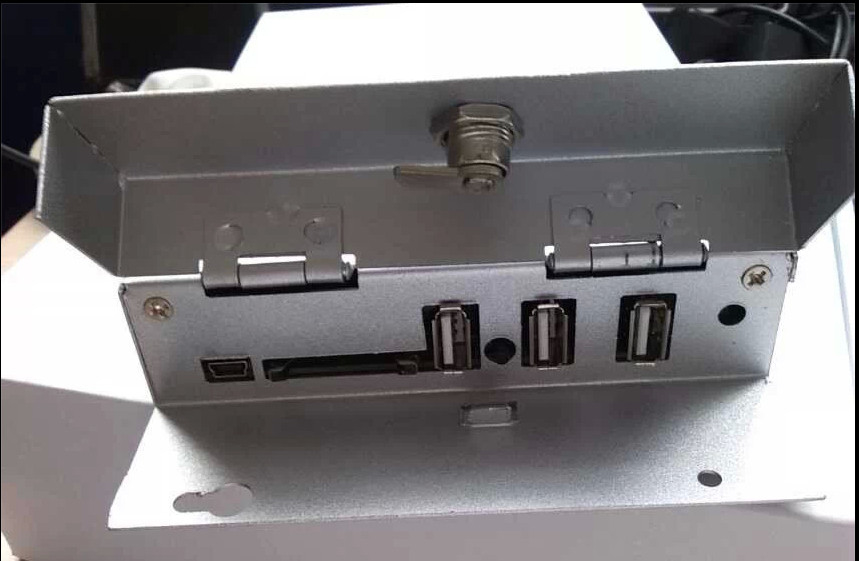

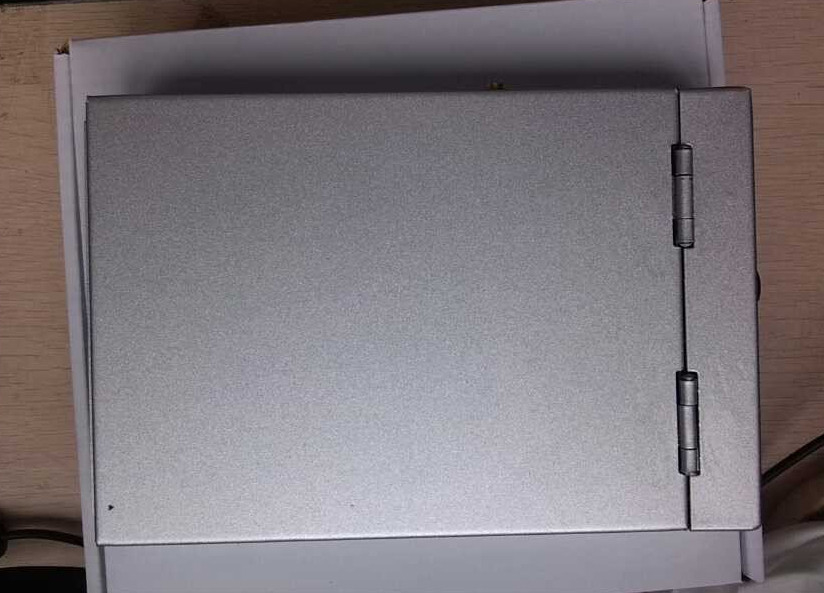

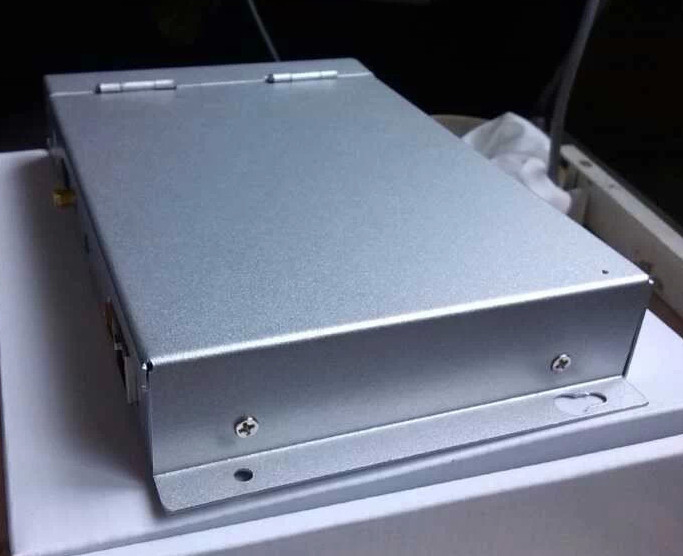

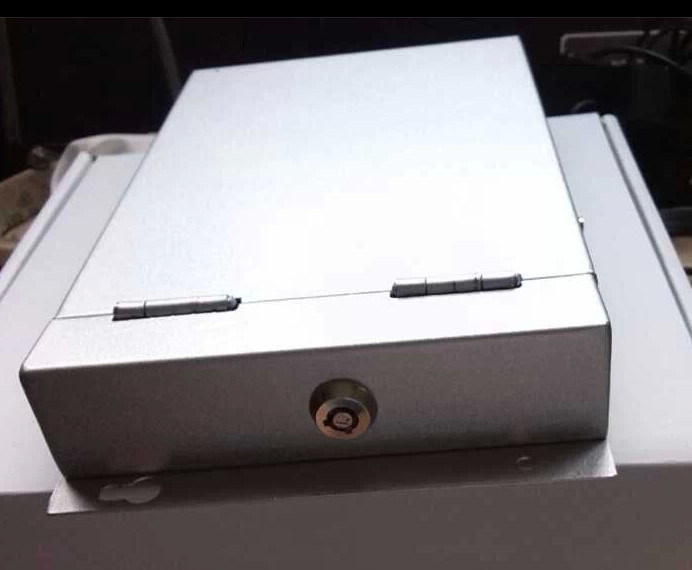

Android System Quad Core Full HD Media Player Box With Wifi 3G
Quick Detail:
1, Advertising media player box
2, support split-screen freely
3. Convenient and simple operation
4. Network online management
5. VGA/HDI/AV output interface
6.Android System Quad Core New Technlogy
Description:
a. Full HD 1080P resolution&High decoding capability
b. Create online media or upload local media such as video, audio, text and etc.
c. Multi-zone Display User-defined layout
d. Web-based Central Management System.
e. Create a ticker to display a scrolling or static line of text and online RSS feeds to remote player units
f. Wireless Connectivity Supports 3G WCDMA/CDMA2000, WiFi 802.11b/g.
Applications:
signage displays are widely used in Business Organizations, Financial Organizations, Non-profit
Organizations, Public Places,Real Estate Property, Entertainments, etc.
Specifications :
|
Contents & Playback |
|
|
Media Support |
Video/Audio/Picture/Scrolling text |
|
Video format |
MOV, AVI, MP4, DVD, ASF, WMV, MKV, RM, RMVB, TS, DAT, MPG, MPEG, VOB |
|
Audio format |
MP3, WMA, WMA Pro, AAC, MPEG1/2 Layer ½, ADPCM, OGG Vorbis, Dolby Digital AC3, Dolby Digital Plus, RA-COOK, FLAC |
|
Picture format |
JPEG, BMP, GIF, PNG, TIFF |
|
Scrolling Message (Ticker) |
Support |
|
Display Resolution |
Up to 1920 x 1080 |
|
High Definition(H.D.) |
1080P Full H.D. |
|
Portrait Mode |
Support |
|
Background Picture |
Support |
|
Multiple Zones Display |
Support multiple zones on screen |
|
Hardware Specification |
|
|
Platform |
MJK Release platform |
|
Video output |
YPbPr (1080P), HDMI (1080P), VGA (720P), CVBS (PAL/NTSC) |
|
Audio Output |
RCA L / R jack, SPDIF digital audio jack |
|
Storage |
2G SD card (Maximum up to 128G) |
|
Processor |
ARM based Multimedia processor , 720MHz |
|
Network |
10/100 Mbps Fast Ethernet |
|
Wireless |
Wi-Fi 802.11b/g, 3G (WCDMA, CDMA2000, through external USB module) |
|
USB |
USB2.0 x 1, USB1.0 x 1 |
|
Power Input |
DC 12V |
|
Performance |
|
|
Operating Temperature |
0~70°C Humidity: 10%~85% |
|
Storage Temperature |
-20°C~80°C Humidity:5%~90% |
|
Mean Time Between Failure (MTBF) |
10,000 hours |
|
Life cycle |
100,000 hours |
|
Power Input |
AC220V/50Hz |
|
Power Consumption |
Approx. 12W |
|
Other |
|
|
Dimension |
160mm*114mm*30mm |
|
Net Weight |
820g |
|
Housing |
Metal |
|
Color |
Gray, customization is available |
|
Accessories |
AC Adapter (Input: AC/100-240V, Output: DV/12V), Power Cord |
|
Certification |
CE, RoHS, FCC |
Competitive advantages:
Quad Core Android Media player box is a new technology industrial grade advertising media player device produced by Signage (China) that plays videos, images, text and RSS feeds. It can play high-definition video through an HDMI port, and convey the instant news and information through streaming video. Our software systems are designed to be easily upgraded, so you will never be behind the times.
Our products are sold all over the world, you can rest assured.
