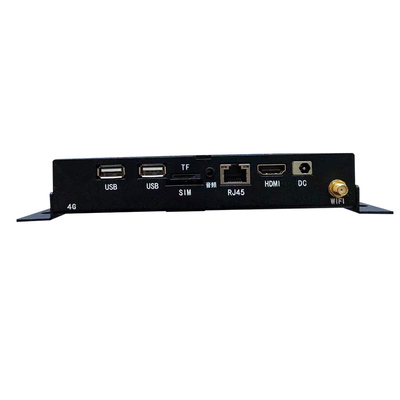

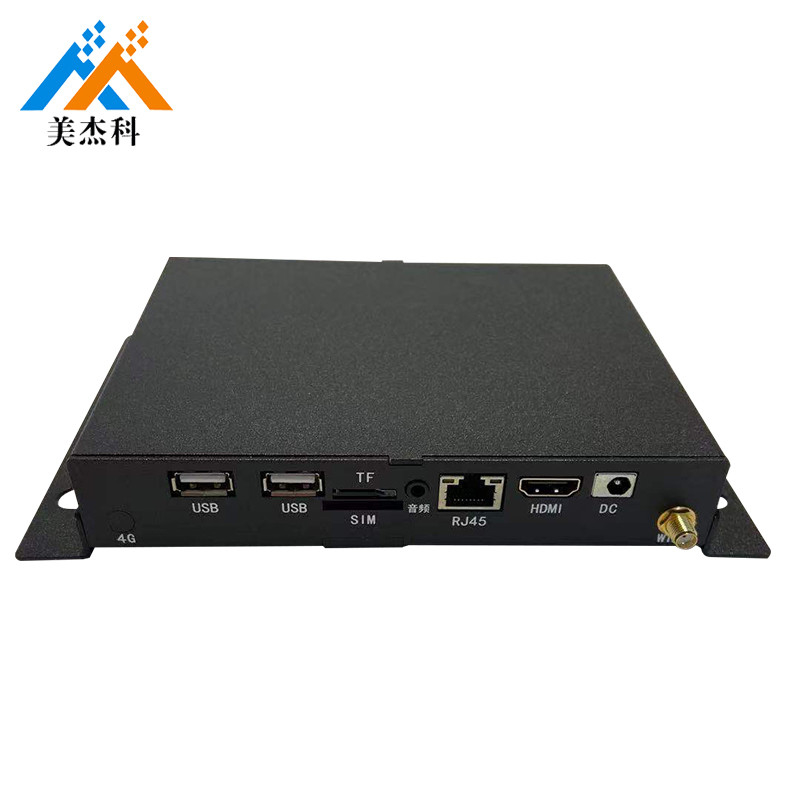

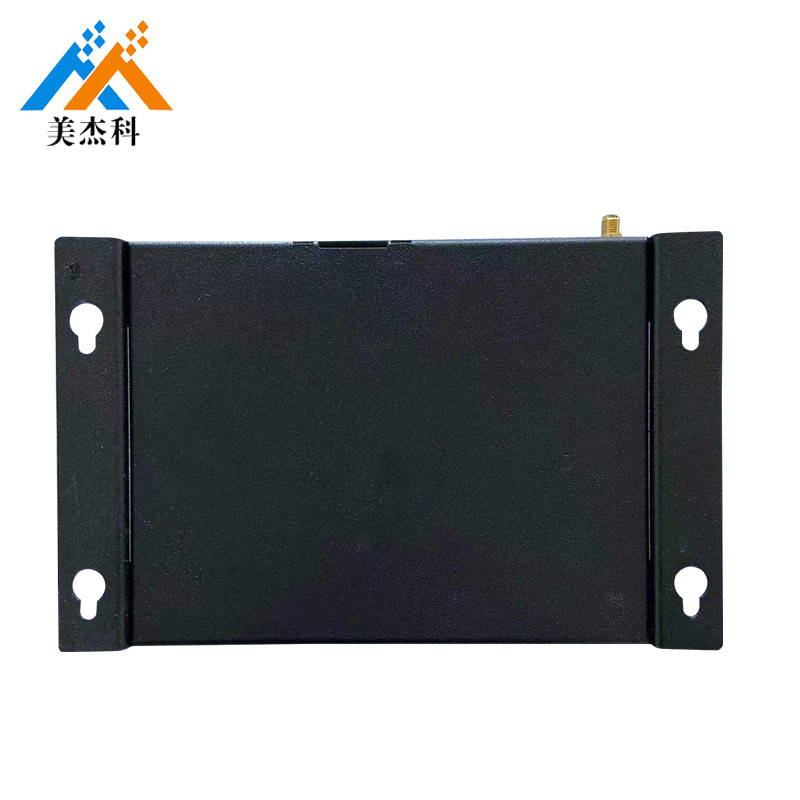

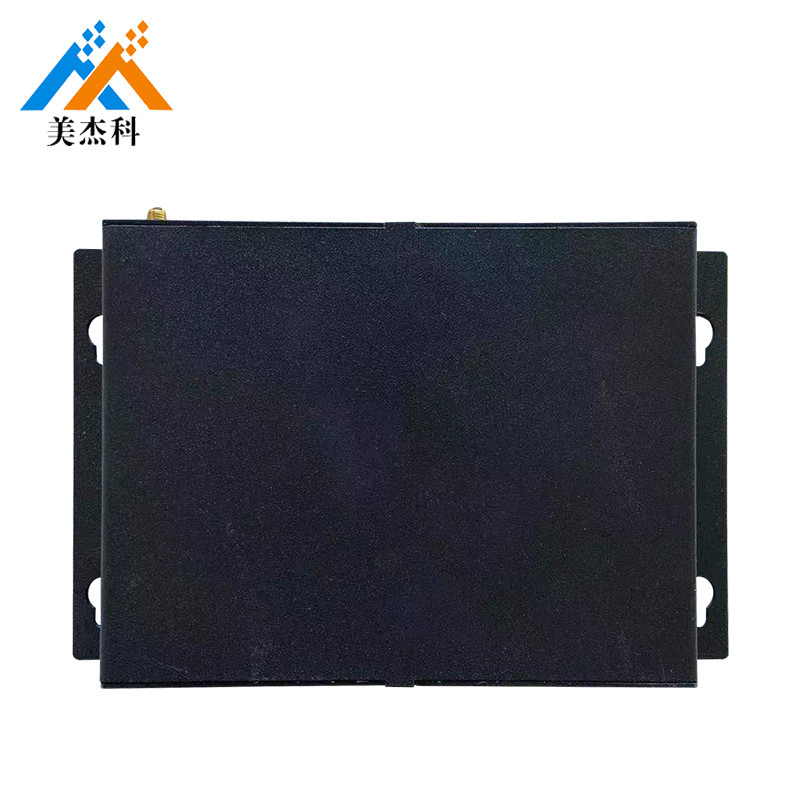

HD 4K Network Android Advertising Digital Signage Media Player Box
This product is android industrial controlled playbox, suitable for intelligent display terminal, industrial automation terminal and video terminal products.
Such as: advertising machine, intelligent self-service terminal, new retail intelligent terminal, O2O intelligent equipment, robot equipment and so on.
This playback box adopts RK3288 chip, operating system is android 5.1.1 system and android 7.1.2 system, since
Wifi-2.4g module (bt-4.0 optional);Supports 4K video decoding, hdmi-4k@60hz output;The board card has its own hardware watchdog, supports remote control switch and network timing switch, and supports remote OTA upgrade;Support face recognition function extension;Can achieve a variety of network terminals running smoothly.
HARDWARE INDEX | CPU | RK3368 Coretex A53 Eight-core, Dominant frequency 1.6GHz |
DDR | DDR-III 1GB(Option: 2GB) | |
NAND | 16GB) | |
HD OUT |
HD 2.0 Standard Display Interface, maximum support is 2160P Output |
|
HD IN |
HD 1.4a Standard Input Interface, maximum support is 1080P Input |
|
Video Support |
MPEG-1/2,MPEG-4,H.264/AVC,MVC,H.265/HEVC,GOOGLE VP8,H.263, VC-1,MOTION JPEG |
|
Photo Support | BMP,JPEG,PNG,GIF,WEBP | |
Audio Support | MP1, MP2, MP3,WMA,WAV,APE,OGG,OGA,FLAC,AAC,M4A | |
USB 2.0 | 2*USB 2.0 Host Interface | |
LAN | 10/100M Adaptive Ethernet | |
TF Card | 1 Standard TF Card Interface, maximum support is 128G | |
WiFi | Wireless Protocol 802.11b/g/n | |
Bluetooth(Optional) |
Built-in high-performance serial port BT module, support V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0 |
|
3G/4G Network(Optional) | External USB_3G/4G Module | |
RTC | SUPPORT | |
TIMER SWITCH | SUPPORT | |
Key | Power Switch and Reset Button (operating status manual reset) | |
Power Input | DC 12V Input | |
SYSTEM UPGRADE | SUPPORT USB AND NETWORK UPGRADE | |
I/O | Power Supply | Input: AC 100~240 V 50/60Hz Output: DC 12V, 1.5A |
Others | Shell Color | Metal Black Case |
LED | Power Led, Ethernet Led, IR Led | |
IR | Standard Infrared Remote Control Interface | |
Accessory(Optional) | Remote Control, WIFI Antenna, Adapter | |
Storage Temperature | -10℃~90℃ | |
Operating Temperature | 0°~70° | |
Operating Humidity | 0%~95%, no condensation |
Hw Param | |
CPU | RK3288,4 core ARM-A17,1.8GHz |
GPU | Mali-T764 |
internal storage | DDR 2GB |
internal memory
|
EMMC 8G(16G/32G/64G) |
OS | Android 5.1.1 and Android 7.1.2 |
Decoding resolution | The highest support 2160P |
video format
|
RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4 |
picture format
|
BMP,JPEG,PNG,GIF |
