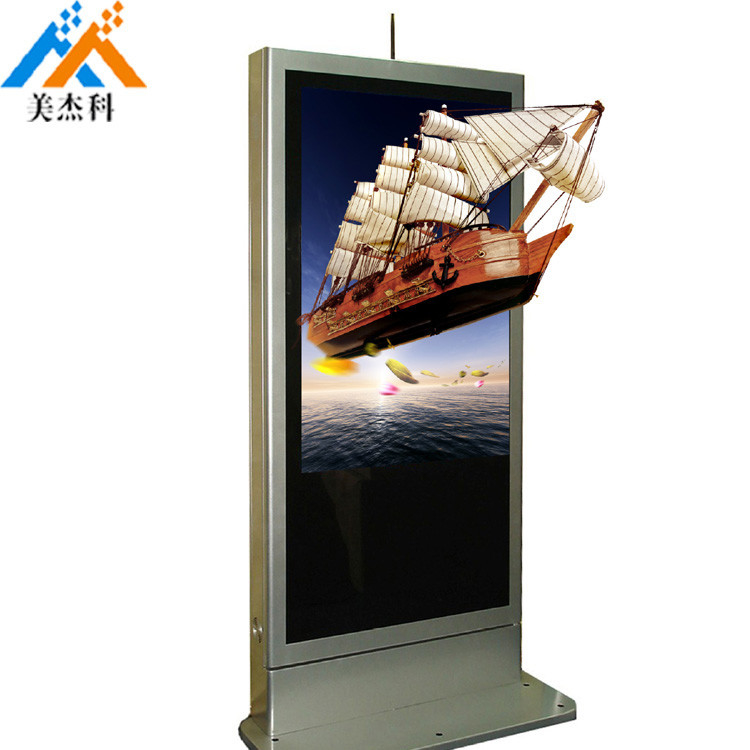

Specification for free standing 3d lcd advertising led display
| Specification model | |
| Panel size | 49" |
| Display area(mm) | 1209*680mm |
| Maximum resolution | 1920*1080 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.264(H)×0.264(V) |
| Brightness (nits) | 450cd/m |
| Contrast | 4000 |
| Visual angle | 178°/178° |
| Response time | 5ms |
| Horizontal frequency | 50-70KHZ |
| Vertical frequency | 56-75KHZ |
| Life(hrs) | >60,000(hrs) |
| Touch Panel(optional, cost not included in the price) | |
| Specification | ir-frame 6 POINTS touches |
| Positioning accuracy |
±1mms |
| Transmittance | ≥95% |
| Hardness | 7H |
| Click manner | 4 points |
| Response time | ≤10ms |
| Output Resolution | 4096X4096 |
| Glass | tempered glass 4 mm |
| Life time | Single point of more than 60 million |
| Video | |
| Color system | PAL/NTSC/SECAM |
| Compatible Foretell input/DVI | 480P,576P,720P,1080I,1080P |
| 3D Comb filter | Yes |
| Video reduction noise | Yes |
| OSD display( screen menu display) | |
| Menu language | Chinese/English( multiple language option required) |
| Andriod specifications (Andriod system price include) | |
| Andriod system | Google Android 4.4.2 support multi-language |
| storage | 2G DDR3 |
| CPU | Quad-core RK3188 |
| Flash | 8G SUPPORT 16G/32G |
| Computer optional(PC Platform optional ) | |
| Main chipset | H61 |
| CPU | Intel core I3-3470 3.2GHz |
| Memory | 4G |
| Hard Disk | SATA II 5400 320GB |
| Operation system | Windows 7/window 8/window 10(original OS is not included in the price) |
| Interface | VGA*1, USB*2, RJ45*1 Foretell |
| Power | |
| Power supply | AC100V~240V,50/60Hz |
| Maximum power consumption | <=220W |
| Standby power consumption | <=1W |
| Temperature | |
| Working temperature | 0℃~50℃ |
| Storage temperature | -10℃~60℃ |
| Working humidity | 20%~80% |
| Storage humidity | 5%~95% |
| Appearance | |
| Panel color/appearance | White, black, customized |
| Panel material | SPCC/Aluminum/Customized |
| Installation | floor standing |
| Certificate | CE/FCC/3C/RoHS |
| Accessories | Manual, warranty card, remote controller,power cable,etc. |
| FUNCTION | |
| Function | Support multi language, auto play, breakpoint memory, regular spots, timer switch machines, kakari logo and rolling subtitles, play log, sub volume, full HD broadcast, multi player mode, multi storage media etc |
| Support file format | |
| Support file format | Video Format:MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,DIV,TS,TRP,MKV,MOV,WMV,RM,RMVB Picture Format:JPEG,BMP Audio Format:MP3,WMA Subtitles |
| Features | |
| Features | Ultra narrow thin aluminum alloy circular bead appearance, strong sense of slim fashion technology, horizontal and vertical wall mounted , three in one common solution,Seamless play, support 24 hours automatic switch machine, the 5 groups, support timer switch as week |
MJK ELECTRONICS CO., LTD
was established in 2005. Our company is located in shenzhen, China.Our company is a professional Hi-Tech enterprise engaged in all kinds of LCD digital signage displays such as outdoor kiosks,interactive touch kiosks, touch screen table ,wall mounted displays,floor standing displays,,LCD monitor ,videowall,etc.which are the most widely using media in retail, shopping center, restaurant, hotel, bank, building, airport,showroom etc.
We have a professional and precise technical support team, including software development engineer, electronic engineer, construction engineer, who are outstanding in the digital signage.As one of the leading company in digital signage,MJK offers very innovative, stylish, and full-function products, which are welcome by the clients from over fifty countries and areas.
MJK always takes the strict QMS system to control quality for Zero Fault, so as to meet various standards from clients worldwide. Our products acquire CE, FCC, ROHS,3C certifications so far.
Having rich experience in OEM & ODM cooperation, we are capable of offering you factory price with guaranteed quality as well as complete after-sale service. We have and will always try our best to meet every possible demand of our customers.
FAQ
Q1: Are you a factory or a trading company?
A: We are a factory and we have 2 factories.We integrate R&D team,manufacture,quality control team,sale and after-sale service.
Q2: How many engineers you have?
A: We have 15+ hardware engineers and 20+ software engineers.
Q3: What is your MOQ?
A:Any quantity is acceptable for your order, and the price is negotiable for large quantity.
Q4:what brand of screen are you using?
A:we always use LG,AUO ,BOE, , and CHIMEI screens etc.
Q5: Do you have your own enclosure factory?
A:Yes, we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM or ODM service would be also welcome.
Q6: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery.
Q7: What will you do if the product be nature damage within warranty time and how about out that time?
A: Well, our engineers and QC department will give some quite simple questions to help us confirm the questions and give you a report and the free replacement will be send.
Also, we will just request a very low price for replacement part, if the product out of warranty time.
Q8: Can I customize the product I ordered?
A: Of course, customization offer from customers are most welcome in our company.
Our products are sold all over the world, you can rest assured.
