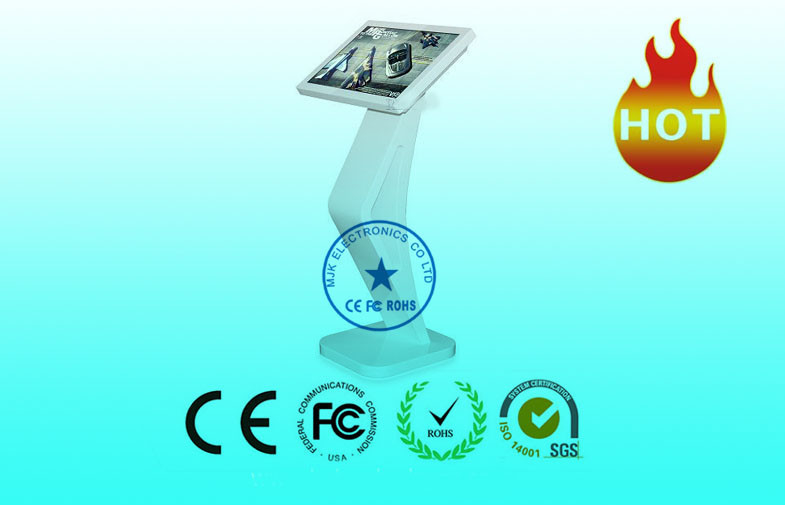

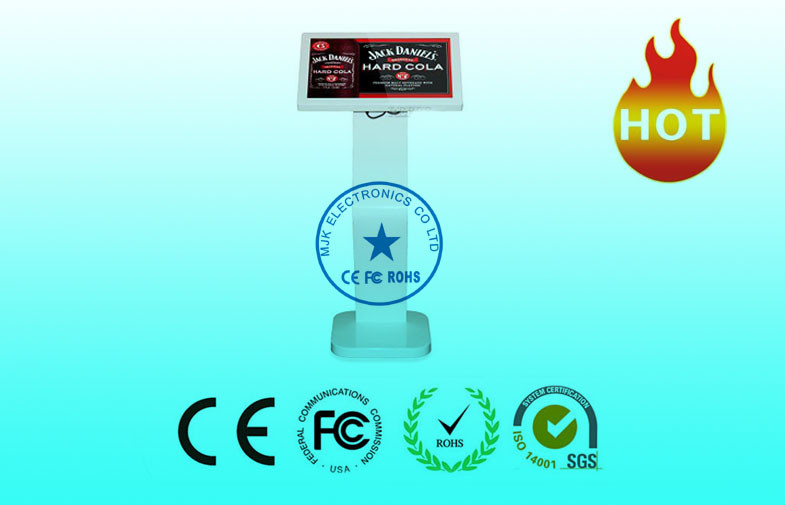

1080P LCD Touch Screen Digital Signage Kiosk , Free Standing Kiosk Horizontal
Quick Detail:
Space for all functions with bill acceptor, printer, card reader, barcode scanner
Description:
Specifications :
|
|
Specification Details |
||
|
PC System (Customizable) |
Motherboard |
Advantech/ Seavo/ Gigabyte |
|
|
CPU |
Dual core G2020, Four Core I3/ I5 /I7 |
||
|
RAM |
2GB/4GB/8GB |
||
|
HDD |
320G/500G |
||
|
Power Supply |
Hunt Key/Great Wall |
||
|
Interface |
RS-232 Ports; LTP; USB Ports, 10/100M Net Port; Integrated Net Card, Sound Card |
||
|
Touch Screen |
Screen Size |
17”, 19” (optional from 15” to 82”) |
|
|
Screen Type |
SAW, IR, Capacitive |
||
|
Resolution |
4096x4096 |
||
|
Feature |
High Transparence, Precision and Durability |
||
|
Monitor |
Screen Size |
17”, 19” (optional from 15” to 82”) |
|
|
Brightness |
300cd/m2 |
||
|
Contrast |
1000:1 |
||
|
Resolution |
1280x1024(1920*1080) |
||
|
Kiosk Cabinet |
Material |
Cold-rolled Steel ST12 SPCC with1.5mm thickness |
|
|
Coating |
Car painting technology |
||
|
Feature |
Easy service access through front and back |
||
|
Color or Logo |
Customizable |
||
|
Parts |
Multimedia speakers ,Internal ventilation system |
||
|
Card Reader |
Card Type |
Magcard, IC Card, RF Card, Mifare Card, UL Card |
|
|
Interface |
RS232/USB |
||
|
Card Entry Method |
Signal of Magnetic, Optoelectronic and rear card |
||
|
Encrypted Pin Pad |
Key Life Span |
2,000,000 cycles |
|
|
Key Force |
2-3N |
||
|
Key Trip |
>2.5mm |
||
|
Protection Level |
IP65 |
||
|
Bill Acceptor |
Brand |
Cash Code/ MEI/ ITL/ICT |
|
|
Validation Rate |
High than 96% |
||
|
Capacity |
600notes~1500notes |
||
|
Thermal Printer |
Brand |
Epson/Custom/Citizen |
|
|
Auto-cutter |
Included |
||
|
Width of Paper |
50mm/80mm/112mm |
||
|
Printing Speed |
150mm/s |
||
|
Buffer of Data |
4Kb |
||
|
Interface |
RS232/USB |
||
|
Operation System |
Windows 2000/ Windows XP/ Windows 7/ Windows 8/ Linux |
||
|
Power Supply |
AC Input Voltage |
100~240V/AC |
|
|
Frequency |
50Hz to 60Hz |
||
|
Package |
Safe packing with bubble foam, in wooden case with screws |
||
|
Other Peripheral |
A4 Printer, Coin acceptor, UPS, Wi-Fi, Web-camera, LAN port, USB port and etc |
||
Touch screen features:
Touch screen:infared touch screen
* Resolution: 4096*4096
* Material :pure tempered glass
*Brightness: 300cd/mm
*lens transmission :>95%
*Orientation precision: < 2mm0.080 inch
*Single-point touch Life expectancy :more than 50,000,000 times
*Surface hardness: equivalent to glass,7 Mohs
*Dust-proof, explosive proof.vandal-proof
*Durability:7 years
Competitive advantages:
-- Support scrolling txt
-- Can turn on or off advertising player automatically on schedule
-- Play advertising program circularly and automatically
-- Build-in clock and callendar function
-- Audio system: build-in two speakers stereo
Our products are sold all over the world, you can rest assured.
