Indoor Use HD Advertising Digital Signage  with High Resolution , 1920*1080

Indoor Use HD Advertising Digital Signage with High Resolution , 1920*1080

  • High Light

    Interactive Digital Signage

    ,

    Digital Information Display

  • Color
    White,or Other Colors You Required
  • Operating System
    Windows7/windows8
  • Resolution
    1080P
  • Viewing Angle
    178
  • USE
    Indoor Use
  • Material
    Metal Case
  • Place of Origin
    china
  • Brand Name
    MJK
  • Certification
    CE,Rohs
  • Model Number
    MJK-AD32R
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiate
  • Packaging Details
    Packed in carton firstly,and then reinforced with wooden case for outer packing
  • Delivery Time
    3-25days
  • Payment Terms
    T/T
  • Supply Ability
    5000pcs/Month

Indoor Use HD Advertising Digital Signage with High Resolution , 1920*1080

Indoor Use HD Advertising Digital Signage with High Resolution , 1920*1080



Quick Detail:

1, PC system, easy to operate and install

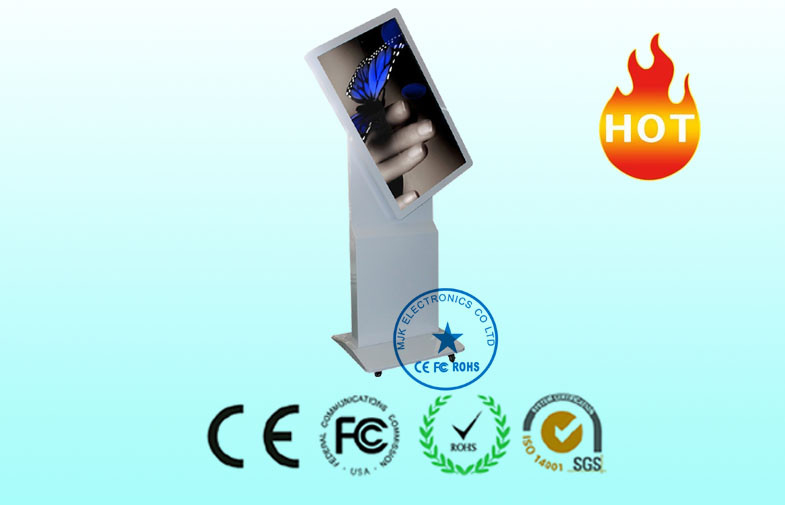

2, Rotating  screen, with Nano multi touch
3, Cold rolled metal case, cool apprearence.
3.1 year warrenty,  lifetime maintenance
6, We can customize the frame according to your requirements

Description:

  1. Automatical and looping playback when power on
  2. Support playing content update with USB
  3. Support picture-in-picture, and picture again music and slide show play.
  4. Capable of setting scrolling caption and Logo on the screen.
  5. Built-in clock and calendar function
  6. Support file and OSD vertical or horizontal playing type
  7. Support  power on/off timer, and Daily and Weekly power on/off timer can be set
  8. Support multi-language; English, Chinese.. etc.
  9. Support photo+Music, photo+video,photo+photo,music+video….
  10. Support rotating manu 90/270/180 degree
  11. You can set split-screen---1 to 10 sections for broadcasting video,audio and photo
  12. Innovative&smart design, elegant looking; anti-corrosion power coating
  13. Ergonomically and compact structure, user friendly, easy for maintenance
  14. Anti-vandalism, water-proof, dust-proof, high safety performance
  15. Rugged steel frame and long hours running, high precision, high stability&reliability



Specifications :

LCD Specifications:

 LCD Brand

 LG/AUO//Chimei

Panel Size

 42 inch

Aspect Ratio

 16:9

Max Resolution

1920*1080

Color

16.7M

Brightness

500cd/ m2

Contrast Ratio

5000:1

Response Time

5ms

Panel life

Above 50000hours





The Technical Parameter for IR touchscreen



Touch Max Resolution

4096×4096

Transparency

> 90%, Up to 100%

Scanning Speed

>50Scans/S

Response Speed

<12ms

Touch Type

Horizontal Multi Dot Touch Screen (Vertical way is optional)

Touch precision

0.625mm

Minimum Touch object

≥5mm

Touch Intensity

Over 60,000,000 Single Point Touch

Operation System

DOS, WINDOWS9X/ME/2000/XP/2003/VISTA, LINUX

perating Voltage

DC 5V ±5%

Power Supply

Keyboard Serial Interface

Power

<1W (Current<200mA)

Communication

RS-232 Interface Port, USB Port

Vandal-Proof

Steel Ball (Diameter 63.5mm 1040g Weight) drop from 1040mm, No break

Temperature Operating

 -41°C ~70°C   Temperature Storage: -50°C ~85°C

Altitude

3000m

Noise

None

Life Time

>10 Year



Competitive advantages:

-- Support scrolling  txt
-- Can turn on or off advertising player automatically on schedule
-- Play advertising program circularly and automatically
-- Build-in clock and callendar function
-- Audio system: build-in two speakers stereo

Indoor Use HD Advertising Digital Signage  with High Resolution , 1920*1080 0
