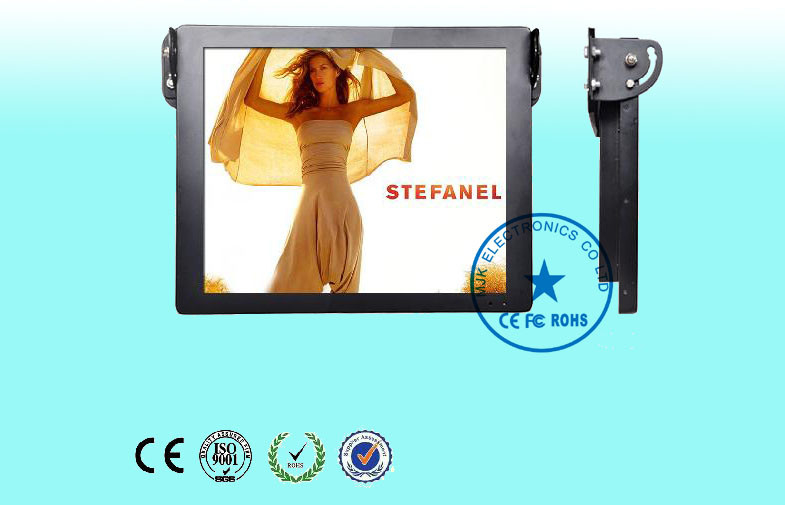

Roof Mount Bus LCD Digital Signage 22 Inch Ultrathin 1024 x 768 Resolution

Roof Mount Bus LCD Digital Signage 22 Inch Ultrathin 1024 x 768 Resolution

  • High Light

    indoor digital signage

    ,

    hotel digital signage

  • Installation
    Roof Mounted
  • Color
    Silver, White, Black, Yellow
  • Panel Size
    22 Inch
  • Place of Origin
    china
  • Brand Name
    MJK
  • Certification
    CE,Rohs
  • Model Number
    MJK-AD22B
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiate
  • Packaging Details
    Packed in carton firstly,and then reinforced with wooden case for outer packing
  • Delivery Time
    3-25days
  • Payment Terms
    T/T
  • Supply Ability
    5000pcs/Month

Roof Mount Bus LCD Digital Signage 22 Inch Ultrathin 1024 x 768 Resolution

Roof Mount Bus LCD Digital Signage 22 Inch Ultrathin 1024 x 768 Resolution





Quick Detail:



1. Bus roof mounted LCD advertising player.

2. Toughened glass panel, Ultrathin design.

3. Automatic and cycle play when power is on.

4. A Grade LG//AUO LCD panel

5. Support 3G and WIFI

6. CE&Rohs&FCC







Description:



Signal Interface:



1). standard features: USB 2.0 (Host), SD / CF card port, capacity of memory card support 32MB to 32GB



2). it is optional for HDMI, AV , VGA port





Frame Features:



1). Adopts high transparent tempered glass as protection layer to prevent LCD panel being broken and distorted.



2). Color for metal outer frame is available with Black color, Shinning-silver color, Golden Color, cream-white color; also we accept customizing color according to color code.



3). Adopts INNOLUX as LCD Panel, Full New A grade standard.



4). Locking system for anti-thieves, prevented the player and storage devices from being stolen



5). Build-in High Quality speakers Stereo 2pcs x 2W





Built-in Media Player Function:



1). Time Function: the player turns on/off at the same time everyday according to user setting.



2). No DVD style Mechanical movement, hence more durable and suitable for long-hour advertising playing.



3). Support 5 groups of auto power-on/off timer, and can set 5 groups of time one day and 7 days in one week.



4). Support software upgrade function by U-sticker via USB port.



5). Build-in Clock and calendar function in the system of player.



6). Playing advertising file automatically and circularly after insert CF card/SD/U-sticker etc.



7). Support playing list function: user can set different folders, copy all target files to those different folders via software, system would default to play your target file one by one.



8). Support IR Remote function, user can use IR to operate the whole LCD.



9). It is available with Horizontal OSD and Vertical OSD.





Applications:



Our LCD digital signage displays are widely used in Business Organizations, Financial Organizations, Non-profit Organizations, Public Places,Real Estate Property, Entertainments, etc.


Application field (A-Z):

Airport, Apartments, Auto dealerships, Banks, Bars, Beauty shops, Bookstores, Colleges and Universities, Clubs, Casinos,Chain shops, Commercial buildings, Convention centers, Corporate Communications, Country clubs, Department stores,Cruise Ships, Exclusive agency, Exhibition halls, Fitness Clubs, Fitness halls, Gas stations, Golf and Country Clubs,Golf course, Hospital, Hotels, HR market, Insurance companies, Internet bars, Large-scale shopping malls, Libraries,Large-scale sales, Lottery centers, Model rooms, Museums, Medical facilities, Massage rooms, Movie theaters, Offices,Offices buildings, Parks, Pharmacy, Post offices, Property brokers, Public venues, Restaurants, Real Estate Listings,Retail Stores, Schools, Ski Resorts, Stadiums, Sports Complexes and Arenas, Star-rated hotels, Supermarket, Stations,Subway, Toll stations, Telecommunications, Ticket agencies, Tourist Resorts, Train & bus stations, Travel agencies, Villas






Specifications:



Technical Parameter for LCD Panel

Panel Size

22 inch LCD panel

Aspect Ratio

4:3

Active Area

304mm(H) x 228mm(V)

Max. Resolution

1024 x 768

Dot Pitch

0.297mm(H) x 0.2973mm(W)

Number of Color

16.7M

Brightness

350cd/m2

Contrast Ratio

800:1

Responsive Time

8ms

Panel Life

above 50000 hours

Storage Medium

Flash memory card

Capacity: 2GB - 32GB

Support Ad files

Video formats

MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)

Audio formats

MP3

Photo formats

JPG

OSD Language

English, Chinese, French, German, Italian, Spanish,Arabic etc.

Audio output

stereo L/R, 5W*2, 8Ω

Power supply

DC 6V - 36V

Storage Temperature

 -7 to 65 Celsius degree

Normal Working Temperature

 -5 to 65 Celsius degree

Application

Bus,Taxi,Subway





Competitive advantages:



1, Ceiling mounted or hang back fixed  option.

2. DC, 6V-36V  is available.

3. Human Sensor Available

4. Wifi and 3G Option

5. Inside power amplifier(support 300W outside horn)

6. 2mm toughened glass with metal shell
