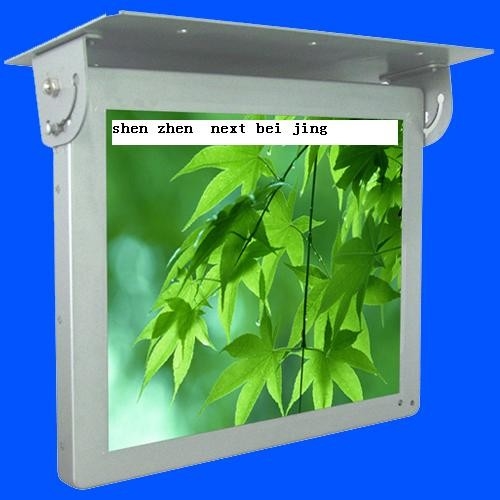

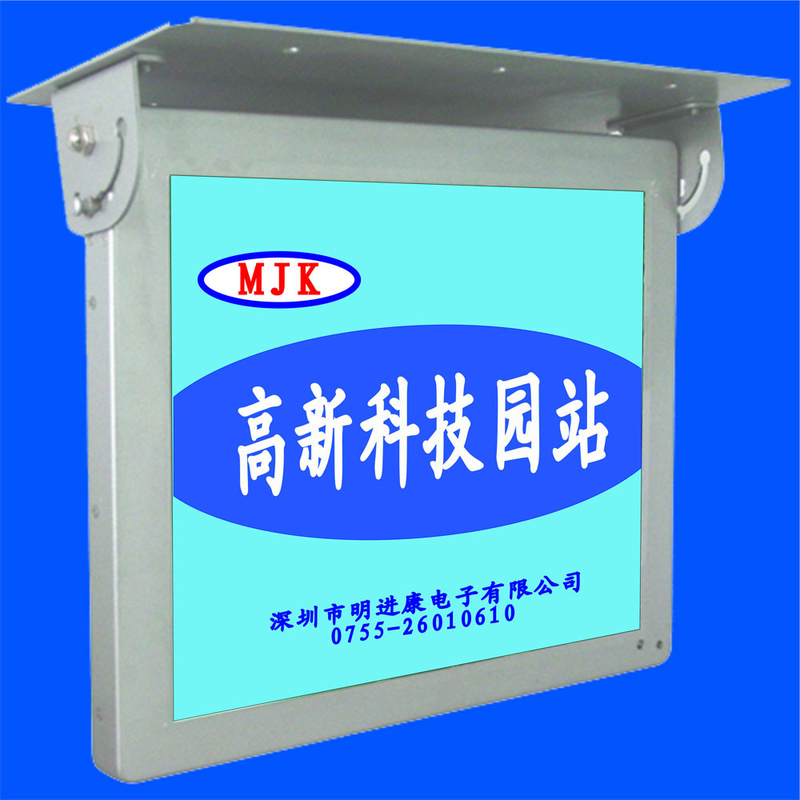

19inch HD WIFI / 3G Bus Digital Signage, Antivibration Design Bus LCD Advertising Player, 4:3 Screen
Quick Detail:
1. Bus roof LCD advertising display
2. Aluminium alloy+metal
3. Auto play advertising contents
4. A Grade LG//AUO LCD panel
5. 3G&WIFI option
6. CE&Rohs&FCC
Description:
Signal Interface:
1). standard features: USB 2.0 (Host), SD / CF card port, capacity of memory card support 32MB to 32GB
2). it is optional for HDMI, AV , VGA port
Frame Features:
1). Adopts high transparent toughtened glass as protection layer to prevent LCD panel being broken and distorted.
2). Color for metal outer frame is available with Black color, Shinning-silver color, Golden Color, cream-white color; also we accept customizing color according to color code.
3). Adopts INNOLUX as LCD Panel, Full New A grade panel.
4). Locking system for anti-thieves, prevented the player and storage devices from being stolen
5). Build-in High Quality speakers Stereo 2pcs x 2W
Built-in Media Player Function:
1). Time Function: the player turns on/off at the same time everyday according to user setting.
2). No DVD style Mechanical movement, hence more durable and suitable for long-hour advertising playing.
3). Support 5 groups of auto power-on/off timer, and can set 5 groups of time one day and 7 days in one week.
4). Support software upgrade function by U-sticker via USB port.
5). Build-in Clock and calendar function in the system of player.
6). Playing advertising file automatically and circularly after insert CF card/SD/U-sticker etc.
7). Support playing list function: user can set different folders, copy all target files to those different folders via software, system would default to play your target file one by one.
8). Support IR Remote function, user can use IR to operate the whole LCD.
9). It is available with Horizontal OSD and Vertical OSD.
Applications:
Our LCD digital signage displays are widely used in Business Organizations, Financial Organizations, Non-profit Organizations, Public Places,Real Estate Property, Entertainments, etc.
Specifications :
|
LCD Panel |
Size |
19" |
|
Display ratio |
(16:10) |
|
|
Max. resolution |
1440×900 |
|
|
Viewable area |
408×255(mm) |
|
|
Dot pixel |
0.294(H) x 0.294(V)(mm) |
|
|
Brightness |
300cd |
|
|
Contrast |
(1000:1) |
|
|
Response time |
5ms |
|
|
Viewable angle |
160°/160° |
|
|
Max. color |
16.7M |
|
|
Backlight mode |
LED backlight |
|
|
Working life |
> 50000h |
|
|
Power supply |
AC100V~240V 50/60Hz |
|
|
Working environment |
Working temperature 0ºC~50ºC Working moisture20%~80%(no dewing phenomenon) |
|
|
Rating |
< 20W |
|
|
LCD GRADE |
|
Imported A grade industrial level LCD(LG//Chimei/AU),IPS, super bright,suitable for indoor also for outdoor; we never use B grade or second hand screens. |
|
FUNCTION |
Storage material |
Supports SD and USB and hot swap. |
|
Display contents |
Video,Music,Photo,roll titles. |
|
|
Playback modes |
Random broadcast, all repeated broadcast, the single repeated repetition. automatically boot looping. |
|
|
Supported formats |
MP4(AVI: DIVX/XVID), MPG2(DVD: VOB/MPG2), MPEG1(VCD: DAT/MPG1), MP3, JPG. |
|
|
Background music |
Supports photo display with background music. |
|
|
Language |
Chinese and English. other Languages can be developed. |
|
|
Video standard |
PAL,NTSC,Auto |
|
|
Solution |
HD advertising machine supports 1080P(resolution1920×1080 progressive scan)HD display. |
|
|
Time setting |
With calendar,supports 5 period time setting,7 days a week, 24hours per day, without special management. |
|
|
Power off memory |
Supports power off memory,when the power switches on, it will continue to play from the power failure point. |
|
|
Roll titles |
Easily establish a new text file, and input the roll titles in it. |
|
|
USB drive copy |
Automatically copy the files in USB drive into inside memory of the machine. |
|
|
Playlist |
To control the playback mode, playing order and set the playing time and playback times. |
|
|
Inter cut |
Can inter cut advertising files in different period due to your needs. |
|
|
Channel caption |
Support channel caption function: can set the company logo or name on the advertising files to enhance the reputation of brand. |
|
|
Play record |
Management can check the playing file at anytime and may copy the record into computer and play, accuracy to 1 second. |
|
|
Enclosure |
Surface material |
Hardened glass + aluminium frame + cold rolled steel body. |
|
Design and construction |
Langxin advertising machines are made of alloy enclosure and mirror glass, with high grade craftmanship, and delicate design; The alloy enclosure endures high temperature,aging resistant, and has portrait, landscape,wall mounted, free standing various shapes;We may also customise any shape due to special requests;The lock is well designed and rugged, the machine has good appearance in anti-shaking. |
|
|
Safety measures |
The surface of the LCD has a super thin high transparancy hardened glass which can protect the machine from vandalism; Anti-theft locks avoids the machine or the storage devices to be stolen. |
|
|
Built-in speakers |
2×8Ω/5W |
|
|
Package |
Package contents |
1x advertising machine,1x manual,1x remote controller, 1x wall mount bracket, 2x keys. |
|
Aftersale service |
Aftersale service |
One year warranty. |
Competitive advantages:
1, Ceiling mounted or hang back fixed option.
2. DC, 6V-36V is available.
3. Human Sensor Available
4. Wifi and 3G Option
5. Inside power amplifier(support 300W outside horn)
6. 2mm toughened glass with metal shell
Our products are sold all over the world, you can rest assured.
