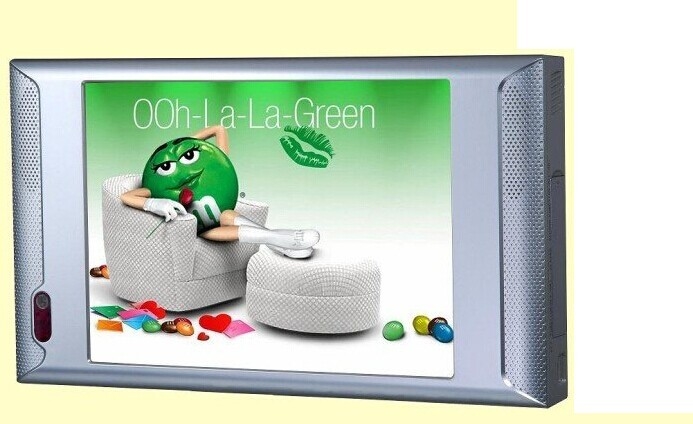

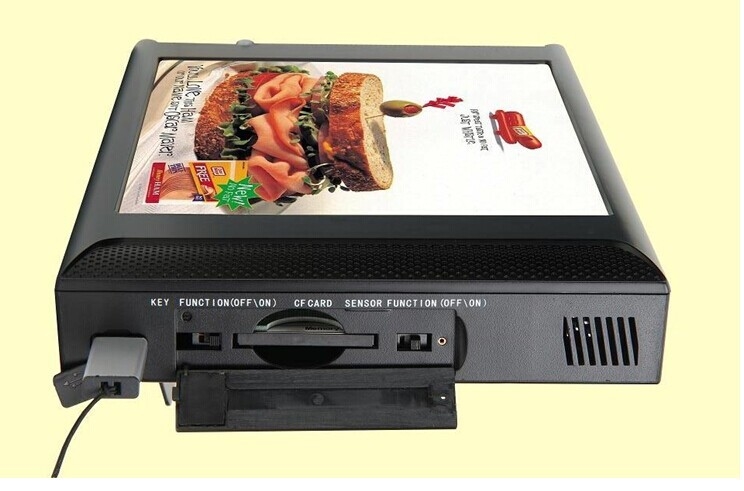

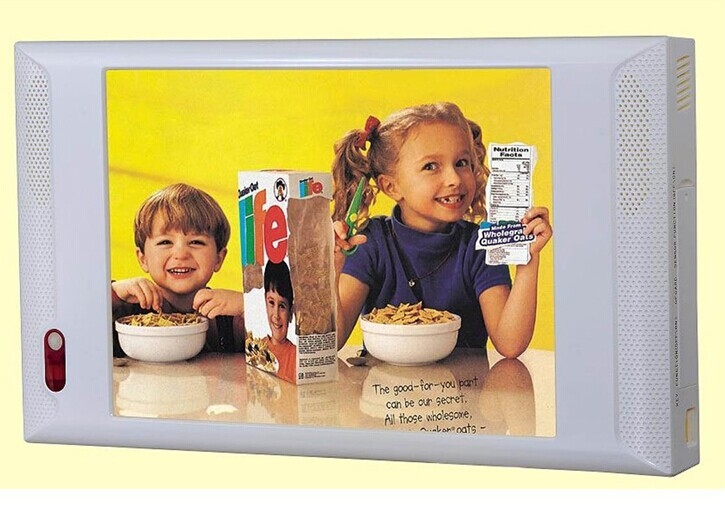

7 Inch Open Frame LCD Digital Signage Display Retail Store IR Motion Sensor

7 Inch Open Frame LCD Digital Signage Display Retail Store IR Motion Sensor

  • High Light

    lcd advertising player

    ,

    free standing digital signage

  • Place of Origin
    china
  • Brand Name
    MJK
  • Certification
    CE,Rohs
  • Model Number
    MJK-AD7J
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiate
  • Packaging Details
    Packed in carton firstly,and then reinforced with wooden case for outer packing
  • Delivery Time
    3-25days
  • Payment Terms
    T/T
  • Supply Ability
    5000pcs/Month

7 Inch Open Frame LCD Digital Signage Display Retail Store IR Motion Sensor

7 Inch Open Frame LCD Digital Signage Display Retail Store IR Motion Sensor









Quick Detail:


1, Auto play in loop

2, The pannel size optional: 7", 8", 9", 10", 11.6", 12.1, 15.6 "

3, standard VESA, easy to install.
4, Adopt memory card or USB flash disk to update ad files
5. Full HD 1080P
6. Motion sensor  function: player starts automatically when the sensor detects an approaching viewer (this function can be disabled or enabled


Description:

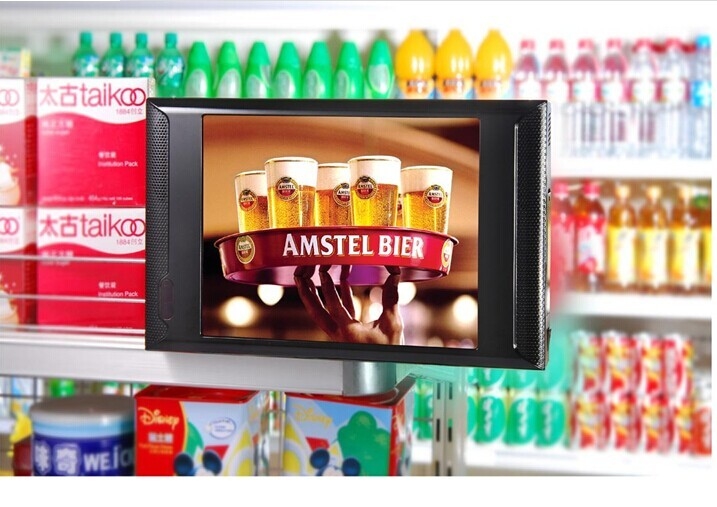

1.   Play mp4 movie, mp3 music and digital photos; Built-in 10 inch TFT LCD screen, with tempered glass  protection; easy-to-install on supermarket shelves, tabletop, showcase, car and taxi, etc.

2.   Play from:
      --Compact Flash card (CF card)
      --USB flash drive
      --Built-in memory

3.  Upgrade contents of the memory card (or built-in memory) by simply inserting an USB flash drive, no need to take out of the memory card.

4.  Timer function: the player powers on / off automatically everyday at the time pre-set; It can also automatically play and non-stop replay within the pre-set time frame.

5.  No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing.

6.  IR (infrared) body sensor: player starts automatically when the sensor detects an approaching viewer; This function can be disabled or enabled.

7.  7 function keys on the players, they can be turned on/off.

8.  Theft-protection device effectively prevent the player and CF card from being stolen in public place.

9.  Audio output: 2 X built-in high quality stereo speakers.

10.  With professional easy-to-use stand set; hang on wall or stand on table.

11.  LCD ratio adjustable: 16 : 9(AD1001WP) or 4 : 3 (AD1001P).




Applications:

Our LCD digital signage displays are widely used in Business Organizations, Financial Organizations, Non-profit Organizations, Public Places,Real Estate Property, Entertainments, etc.



Specifications :

All the parameters related to the real products.


Technical Parameter for
 LCD Panel

Panel Size

7 inch LG  LCD panel

Aspect Ratio

16:9

Active Area

304mm(H) x 228mm(V)

Max. Resolution

800 x 480

Dot Pitch

0.297mm(H) x 0.297mm(W)

Number of Color

16.7M

Brightness

350cd/m2

Contrast Ratio

500:1

Responsive Time

5ms

Panel Life

above 50000 hours

Storage Medium

Flash memory card

2gb to 36gb for the capacity

Support Ad files

Video formats

MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2),

MPEG1 (VCD: DAT/MPG1)

Audio formats

MP3

Photo formats

JPG

OSD Language

English, Chinese, French, German, Italian, Spanish,Arabic

Audio output

stereo L/R, 5W*2, 8Ω

Power supply

AC 110V - 240V, 50/60HZ

Storage Temperature

 -7 to 65 Celsius degree

Normal Working Temperature

 -5 to 65 Celsius degree




Competitive advantages:

Our  lcd digital signage displays are  with black full tempered glass to protect the LCD Panel,and also with decorative screws to make it perfect and luxury. Regarding  the full-toughened glass, we adopt the silk-screen technology for better quality and  appearance.This machine  is also designed with MJK board for mounting function,and also with VESA holes for your own bracket.

Our company has our own hardware team and software team, we can provide with the best solution and service.
