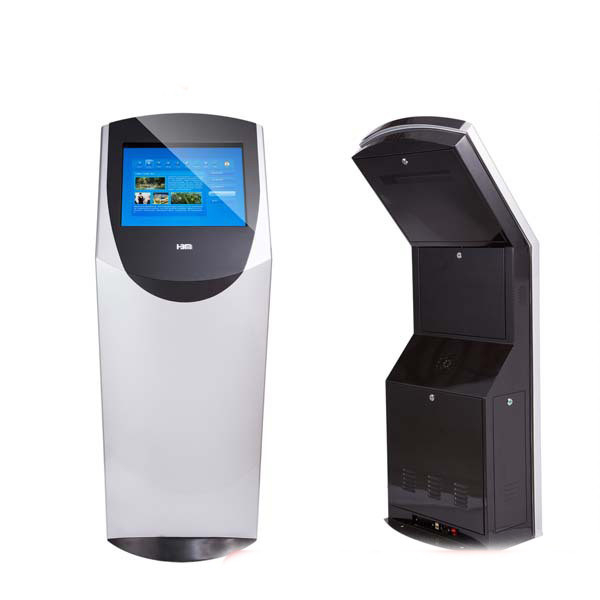

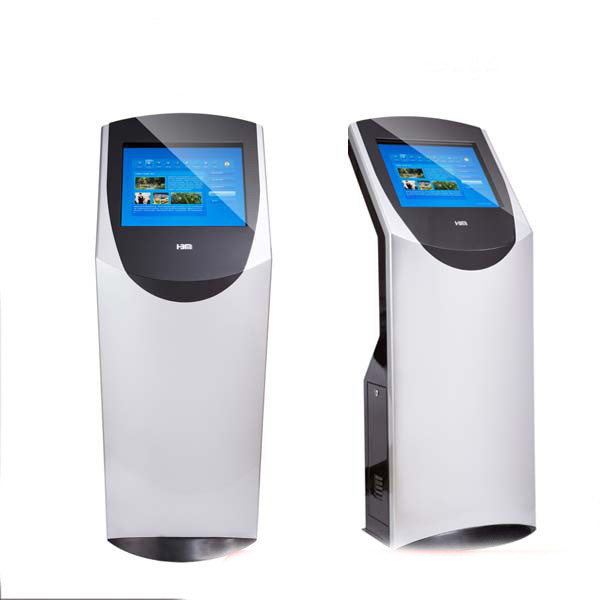

High Transparence Indoor Free Standing Kiosk Display , Hunt Key / Great Wall Power

High Transparence Indoor Free Standing Kiosk Display , Hunt Key / Great Wall Power

  • High Light

    free standing kiosk

    ,

    lcd touch screen display

  • Place of Origin
    china
  • Brand Name
    MJK
  • Certification
    CE,Rohs
  • Model Number
    MJK-AD17TK
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiate
  • Packaging Details
    Packed in carton firstly,and then reinforced with wooden case for outer packing
  • Delivery Time
    3-25days
  • Payment Terms
    T/T
  • Supply Ability
    5000pcs/Month

High Transparence Indoor Free Standing Kiosk Display , Hunt Key / Great Wall Power

High Transparence Indoor Free Standing Kiosk Display , Hunt Key / Great Wall Power





Quick Detail:



  1. Different size screen industrial display
  2. 1.5mm robust cold rolled steel kiosk cabinet
  3. Easy service access through the front or back
  4. Ideal for payment applications (Cash/Non-Cash)
  5. Space for all functions with bill acceptor, printer, card reader, barcode scanner







Description:



  1. Automatical and cycle paly when power is on
  2. Support playing content update with USB
  3. Support picture-in-picture, and picture again music and slide show play.
  4. Capable of setting scrolling caption and Logo on the screen.
  5. Built-in clock and calendar function
  6. Support file and OSD vertical or horizontal playing type
  7. Support  power on/off timer, and Daily and Weekly power on/off timer can be set
  8. Support multi-language; English, Chinese.. etc.
  9. Support photo+Music, photo+video,photo+photo,music+video….
  10. Support rotating manu 90/270/180 degree
  11. You can set split-screen---1 to 10 sections for broadcasting video,audio and photo





 Specifications :





Specification Details

PC System (Customizable)

Motherboard

Advantech/ Seavo/ Gigabyte

CPU

Dual core G2020, Four Core I3/ I5 /I7

RAM

2GB/4GB/8GB

HDD

320G/500G

Power Supply

Hunt Key/Great Wall

Interface

RS-232 Ports; LTP; USB Ports, 10/100M Net Port; Integrated Net Card, Sound Card

Touch Screen

Screen Size

17”, 19” (optional from 15” to 82”)

Screen Type

SAW, IR, Capacitive

Resolution

4096x4096

Feature

High Transparence, Precision and Durability

Monitor

Screen Size

17”, 19” (optional from 15” to 82”)

Brightness

300cd/m2

Contrast

1000:1

Resolution

1280x1024(1920*1080)

Kiosk Cabinet

Material

Cold-rolled Steel ST12 SPCC with1.5mm thickness

Coating

Car painting technology

Feature

Easy service access through front and back

Color or Logo

Customizable

Parts

Multimedia speakers ,Internal ventilation system

Card Reader

Card Type

Magcard, IC Card, RF Card, Mifare Card, UL Card

Interface

RS232/USB

Card Entry Method

Signal of Magnetic, Optoelectronic and rear card

Encrypted Pin Pad

Key Life Span

2,000,000 cycles

Key Force

2-3N

Key Trip

>2.5mm

Protection Level

IP65

Bill Acceptor

Brand

Cash Code/ MEI/ ITL/ICT

Validation Rate

High than 96%

Capacity

600notes~1500notes

Thermal Printer

Brand

Epson/Custom/Citizen

Auto-cutter

Included

Width of Paper

50mm/80mm/112mm

Printing Speed

150mm/s

Buffer of Data

4Kb

Interface

RS232/USB

Operation System

Windows 2000/ Windows XP/ Windows 7/ Windows 8/ Linux

Power Supply

AC Input Voltage

100~240V/AC

Frequency

50Hz to 60Hz

Package

Safe packing with bubble foam, in wooden case with screws

Other Peripheral

A4 Printer, Coin acceptor, UPS, Wi-Fi, Web-camera, LAN port, USB port and etc






Touch screen features:

 Optional size: 32'', 42'',46'', 52'' 55'' 65'' etc

Touch screen:infared touch screen

* Resolution: 4096*4096

* Material :pure tempered glass

*Brightness: 300cd/mm

*lens transmission :>95%

*Orientation precision: < 2mm0.080 inch

*Single-point touch Life expectancy :more than 50,000,000 times

*Surface hardness: equivalent to glass,7 Mohs

*Dust-proof, explosive proof.vandal-proof

*Durability:7 years



Competitive advantages:



-- Support scrolling  txt

-- Can turn on or off advertising player automatically on schedule

-- Play advertising program circularly and automatically

-- Build-in clock and callendar function

-- Audio system: build-in two speakers stereo
