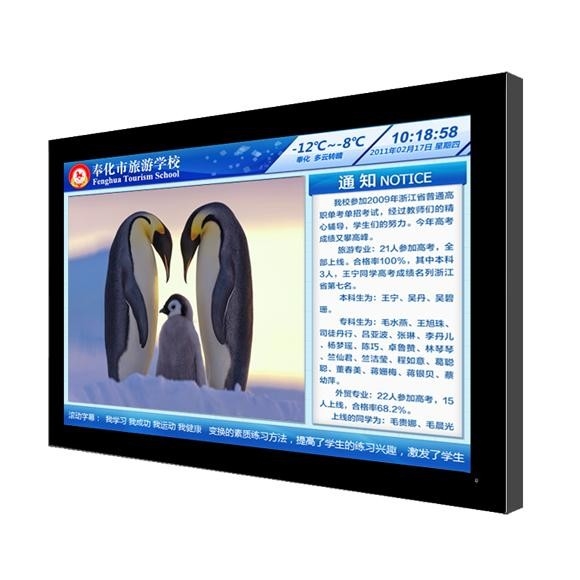

high resolution 26 Inch wall mounted LCD Digital Signage Display Video Advertising With network

high resolution 26 Inch wall mounted LCD Digital Signage Display Video Advertising With network

  • High Light

    lcd advertising player

    ,

    restaurant digital signage

  • Place of Origin
    china
  • Brand Name
    MJK
  • Certification
    CE,Rohs
  • Model Number
    MJK-AD26W
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiate
  • Packaging Details
    Packed in carton firstly,and then reinforced with wooden case for outer packing
  • Delivery Time
    3-25days
  • Payment Terms
    T/T
  • Supply Ability
    5000pcs/Month

high resolution 26 Inch wall mounted LCD Digital Signage Display Video Advertising With network

high resolution 26 Inch LCD Digital Signage Display Video Advertising With network



Quick Detail:



  1. Auto display when start on

  2. A Grade LG / / AUO LCD /CHIMEI panel

  3. Boot screen available

  4. 3G & WIFI option

  5. standard VESA,easy to install

  6.  metal shell, ultra-slim design.





Description:

26 inch digital media LCD advertising display with split screen & 3G


WIFI/3G/LAN network management availabl, OEM/ODM order welcome

26 inch digital media LCD advertising display with split screen & 3G

 With Calendar Setting + Normal Function
- Digital Panel
- Cabinet: metal case
There is lock hole on the back.
- metal housing available in customized color, available in standard black, white, or silver.
- Brand New LCD TFT Panel: AUO, INNOLUX, CHIMEI, Sharp, Toshiba, , LG
- Supports Music, Photo, Auto Play, and Replay in Loop
- Multi Language OSD: English, Japanese, Chinese etc.
- Supports Slide Show (interval mode: Interval time with 1, 3, 5, 10, 30, 60 seconds).
- Play through USB (2.0) / SD (High Speed) / CF Card
- Playback mode: File and folder repeat, choose to repeat playback one file or all the files.
- USB Update Content Directly in CF/SD Card
- Build-in clock and calendar function in the system of player.
- BGM (background music) mode.
- Build-in 2 High Quality Stereo Speakers: 3W x 2
- Anti-burglar Lock system
- Support Shockproof and Dustproof Function
- Timer on/off function: Support 5 groups of auto power-on / off timer. It is able to be set 5 groups of times per day and 7 days in one week.
- Power supply: AC 100V~240V, 50Hz/60Hz, Output working Voltage: 12V 4A.
- Fixation & Bracket: VESA 100mm x 100mm.
- Accessories: Power Cable x 1, User Manual x 1, Bracket x 1, Remote Control x 1, Anti-Burglar Cable x 1 (Optional).
- Working temperature: 0~40C- Working humidity: 20%~80%
- Storage temperature: -20~60C
- Storage humidity: 10%~95%
- We can customize according to the different advertising projects






Applications:


Our LCD digital signage displays are widely used in Business Organizations, Financial Organizations, Non-profit Organizations, Public Places,Real Estate Property, Entertainments, etc.


Application field (A-Z):

Airport, Apartments, Auto dealerships, Banks, Bars, Beauty shops, Bookstores, Colleges and Universities, Clubs, Casinos,Chain shops, Commercial buildings, Convention centers, Corporate Communications, Country clubs, Department stores,Cruise Ships, Exclusive agency, Exhibition halls, Fitness Clubs, Fitness halls, Gas stations, Golf and Country Clubs,Golf course, Hospital, Hotels, HR market, Insurance companies, Internet bars, Large-scale shopping malls, Libraries,Large-scale sales, Lottery centers, Model rooms, Museums, Medical facilities, Massage rooms, Movie theaters, Offices,Offices buildings, Parks, Pharmacy, Post offices, Property brokers, Public venues, Restaurants, Real Estate Listings,Retail Stores, Schools, Ski Resorts, Stadiums, Sports Complexes and Arenas, Star-rated hotels, Supermarket, Stations,Subway, Toll stations, Telecommunications, Ticket agencies, Tourist Resorts, Train & bus stations, Travel agencies, Villas





Specifications :



LCD Panel

Size

26"

Display ratio

(16:9)

Max. resolution

1366×768

Viewable area

575×323(mm)

Dot pixel

0.4215(H) x 0.4215(V)(mm)

Brightness

450cd

Contrast

(2000:1)

Response time

5ms

Viewable angle

178°/178°

Max. color

16.7M

Backlight mode

LED backlight

Working life

> 50000h

Power supply

AC100V~240V 50/60Hz

Working environment

Working temperature 0ºC~50ºC Working moisture20%~80%(no dewing phenomenon)

Rating

< 20W

LCD GRADE



Imported A grade industrial level LCD(LG//Chimei/AU),IPS,super bright,suitable for indoor also for outdoor; we never use B grade or second hand screens.

FUNCTION

Storage material

Supports SD card & USB

Display contents

Video,Music,Photo,roll titles.

Playback modes

Random broadcast, all repeated broadcast, the single repeated repetition. automatically boot looping.

Supported formats

MP4(AVI: DIVX/XVID), MPG2(DVD: VOB/MPG2), MPEG1(VCD: DAT/MPG1), MP3, JPG.

Background music

Supports photo display with background music.

Language

Chinese and English. other Languages can be developed as per customer's requirement.

Video standard

PAL,NTSC,Auto

Solution

HD advertising machine supports 1080P(resolution1920×1080 progressive scan)HD display.

Time setting

With calendar,supports 5 period time setting,7 days a week, 24hours per day, without special management.

Power off memory

Supports power off memory,when the power switches on, it will continue to play from the power failure point.

Roll titles

Easily establish a new text file, and input the roll titles in it.

USB drive copy

Automatically copy the files in USB drive into inside memory of the machine.

Playlist

To control the playback mode, playing order and set the playing time and playback times.

Inter cut

Can inter cut advertising files in different period due to your needs.

Channel caption

Support channel caption function: can set the company logo or name on the advertising files to enhance the reputation of brand.

Play record

Management can check the playing file at anytime and may copy the record into computer and play, accuracy to 1 second.

Enclosure

Surface material

Hardened glass + aluminium frame + cold rolled steel body.

Design and construction

Langxin advertising machines are made of alloy enclosure and mirror glass, with high grade craftmanship, and delicate design; The alloy enclosure endures high temperature,aging resistant, and has portrait,landscape,wall mounted, free standing various shapes;We may also customise any shape due to special requests;The lock is well designed and rugged, the machine has good appearance in anti-shaking.

Safety measures

The surface of the LCD has a super thin high transparancy hardened glass which can protect the machine from vandalism; Anti-theft locks avoids the machine or the storage devices to be stolen.

Built-in speakers

2×8Ω/5W

Package

Package contents

1x advertising machine,1x manual,1x remote controller, 1x wall mount bracket, 2x keys.

Aftersale service

Aftersale service

One year warranty and life-long maintenance





Competitive advantages:



Our  lcd digital signage displays are  with black full tempered glass to protect the LCD Panel,and also with decorative screws to make it perfect and luxury.Regarding  the full-toughened glass, we adopt the silk-screen technology for better quality and  appearance.This machine  is also designed with MJK board for mounting function,and also with VESA holes for your own bracket.
