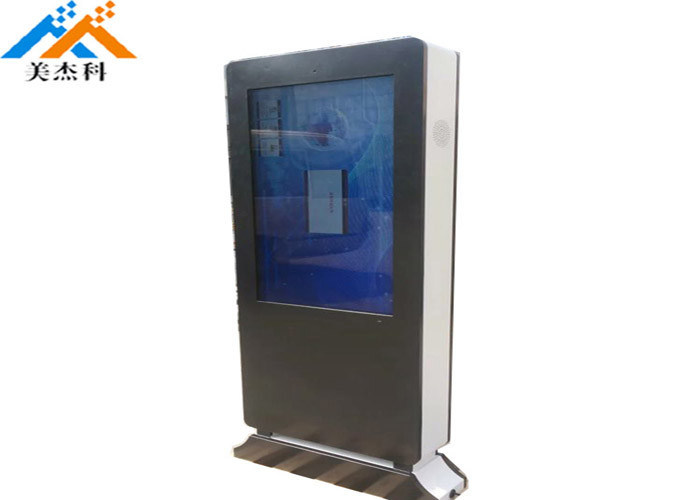

outdoor lcd advertising display outdoor kiosk ; lcd advertising screen for gas station
We are glad to customize the multimedia kiosk as your requirements as following:
Single screen size : 15.6'', 18.5'', 21.5'', 23.6'', 27'', 32'', 43'', 49'', 55'', 65'', 72'', 86'', 98''(optional)
Version: Standalone version (without network) or network version (optional)
Screen: Touch screen or non touch screen (optional)
Touch Type: Infrared touch screen (IR touch screen), capacitive touch screen (CTP) (optional)
System: Android system or windows system (optional)
Android version: Android 4.4, android 5, android 6.0 (optional)
Windows version: Windows 7/8/10 (optional)
Android GB, RAM: 2+8G, 2+16G, 2+32G, 2+64G (optional)
Windows GB, RAM: 4+128G, 4+256G, 4+512G, 8+256G (optional)
Android Chip: RK3128, RK3288, A64 (optional)
Windows Chip: J1900, I3, I5 I7 (optional)
Panel Type: TFT, IPS (optional)
| Technology parameter | ||
| Panel parameters | Panel type | 43” LCD Panel |
| Display size | 941x530mm | |
| Display scale | 16:09 | |
| Backlight type | LED | |
| Resolution | 1920*1080 | |
| brightness | 2000cd/m2 | |
| Contrast | 3000:01:00 | |
| Viewing angle | 178°(H) / 178°(V) | |
| Service life | 60000 hours | |
| Front protective glass | 6mm AR laminated glass | Closing off 99.99% of the sun's ultraviolet rays |
| Closing off More than 50% of solar radiation | ||
| Light transmittance is over 93% | ||
| Reflectance is less than 3% | ||
| The total heat insulation rate of sunlight is over 50% | ||
| Intelligent temperature control system (using imported centrifuge for heat dissipation + industrial heater) | ||
| Cooling system | Fully intelligent independent research and development of cooling system | Voltage 24V |
| Operating voltage 20.4-27.6V | ||
| Starting voltage 12V | ||
| Average speed 2400 rpm, minimum speed 2160 rpm | ||
| Average current 0.26A, maximum current 0.312 | ||
| Access to power average 3.12, maximum 3.74 | ||
| Average airflow 74, minimum airflow 66.6 | ||
| Average static pressure 2.0 , Minimum static pressure 1.8 | ||
| Noise 33db | ||
| It can automatically adjust the fan speed according to the working temperature, with heating function to meet the outdoor work of -40-55 degrees. | ||
| Pla motherboard | PC | 1037U, 2G operation, 500G storage, with WiFi, USB, HDMI interface, windows system |
| Touching | Nano touch | Finger touch at 10 points, the accuracy is less than 5MM, the sensitivity is less than 8MS, and the number of touches is not limited. |
| Electrical parts | Backlight power supply | According to the peak power and reserve 20% redundancy (Taiwan Mingwei and other first-tier manufacturers) |
| Automatic light perception | Automatic Photosensitive Probe - Automatically recognizes the surrounding environment to automatically adjust the screen brightness | |
| Lightning arrester | Zhengtai lightning protection device | |
| AC contactor | Zhengtai AC contactor | |
| Microcomputer time switch | Set the timer switch machine in different time slots. You can set more than 20 groups of time slots. | |
| power input | AC 108-115V AC 208-240V | |
| Total power | 400W | |
| Working environment | Fan power supply | 24V |
| Screen display and backlight power supply | 24V+12V hybrid power supply 200-400W | |
| Operating temperature | -35-55° | |
| Product | storage temperature | -20°C to 60°C |
| Working humidity | 5% to 100% | |
| Storage humidity | 5% to 100% | |
| Installation method | Floor-mounted installation | |
| External structural member | Shape packaging | Use pearl cotton shock absorber + wooden frame packaging |
| Exterior color | black | |
| shell material | Hot-dip galvanized steel sheet T=1.5+ outdoor double-sided spray outdoor powder | |
| Gross weight | 130KG |
|
Certification:
MJK ELECTRONICS CO., LTD
was established in 2005. Our company is located in shenzhen, China.Our company is a professional Hi-Tech enterprise engaged in all kinds of LCD digital signage displays such as outdoor kiosks,interactive touch kiosks, touch screen table ,wall mounted displays,floor standing displays,,LCD monitor ,videowall,etc.which are the most widely using media in retail, shopping center, restaurant, hotel, bank, building, airport,showroom etc.
We have a professional and precise technical support team, including software development engineer, electronic engineer, construction engineer, who are outstanding in the digital signage.As one of the leading company in digital signage,MJK offers very innovative, stylish, and full-function products, which are welcome by the clients from over fifty countries and areas.
MJK always takes the strict QMS system to control quality for Zero Fault, so as to meet various standards from clients worldwide. Our products acquire CE, FCC, ROHS,3C certifications so far.
Having rich experience in OEM & ODM cooperation, we are capable of offering you factory price with guaranteed quality as well as complete
after-sale service. We have and will always try our best to meet every possible demand of our customers.
FAQ
Q1: Are you a factory or a trading company?
A: We are a factory and we have 2 factories.We integrate R&D team,manufacture,quality control team,sale and after-sale service.
Q2: How many engineers you have?
A: We have 15+ hardware engineers and 20+ software engineers.
Q3: What is your MOQ?
A:Any quantity is acceptable for your order, and the price is negotiable for large quantity.
Q4:what brand of screen are you using?
A:we always use LG,AUO ,BOE, , and CHIMEI screens etc.
Q5: Do you have your own enclosure factory?
A:Yes, we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM or ODM service would be also welcome.
Q6: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery.
Q7: What will you do if the product be nature damage within warranty time and how about out that time?
A: Well, our engineers and QC department will give some quite simple questions to help us confirm the questions and give you a report and the free replacement will be send.
Also, we will just request a very low price for replacement part, if the product out of warranty time.
Q8: Can I customize the product I ordered?
A: Of course, customization offer from customers are most welcome in our company.
Our products are sold all over the world, you can rest assured.
