RK3288 8" Dynamic Face Recognition Thermometer 1/2.7" CMOS

RK3288 8" Dynamic Face Recognition Thermometer 1/2.7" CMOS

  • High Light

    8" Dynamic Face Recognition Thermometer

    ,

    RK3288 Face Recognition Thermometer

    ,

    1/2.7" CMOS Access Control Thermometer

  • Resolution
    1920 X 1080
  • Function
    Automatic Face Recognition System
  • Application
    Security Access Control Management
  • Sensor
    1/2.7" CMOS
  • Support
    Multi Language
  • Camera Typ
    RGB+Infrared
  • CUP
    RK3288/RK3399 (optional)
  • Product Name
    RK3288 8" Dynamic Face Recognition Thermometer 1/2.7" CMOS
  • Product Keyword
    Dynamic Facial Recognition
  • Voice Indication
    Built-in Speaker,Language Broadcasts Support TTS
  • Place of Origin
    china
  • Brand Name
    MJK
  • Certification
    CE,Rohs
  • Model Number
    MJK-1081D
  • Minimum Order Quantity
    1pcs
  • Price
    us$338
  • Packaging Details
    carton with foam inside & woonden
  • Delivery Time
    3-25days
  • Payment Terms
    T/T
  • Supply Ability
    5000pcs/Month

RK3288 8" Dynamic Face Recognition Thermometer 1/2.7" CMOS

RK3288 8" Dynamic Face Recognition Thermometer 1/2.7" CMOS



- The temperature measuring device should be used in a room with a room temperature between 10 °C-40 °C. Do not install the temperature measuring device under the vent, and ensure that there is no heating source within 3 meters;

- Personnel entering the room from a cold outdoor environment will affect the temperature measurement accuracy. The forehead temperature test should be performed after the forehead is unobstructed for three minutes and the temperature is stable;

- The temperature read by the temperature measuring device is the temperature in the forehead area. When there is water, sweat, oil or thick makeup on the forehead or the elderly have more wrinkles, the read temperature will be lower than the actual temperature. Make sure there is no hair or clothing covering this area.

Application:
Applicable to office areas, gates, hotels, office buildings, schools, etc. where face recognition gates are required.

Characteristics:


Support external HDMI large screen;
Support external ID card / IC card reader;
Support serial port input and output, support Wiegand output, output content supports configuration;
Supports optional card swipe module (the white area below is the swipe area), also Facial plus Card module can be achieved;
Dynamic face detection and tracking recognition algorithm based on video stream;
Supports storage of 50,000 facial photos and 1 million identification records;
1:N recognition accuracy is high; (97% pass rate, the accuracy rate is 99.7%);
Face matching can be achieved with the optional swipe module;
The recognition speed is fast, the face tracking and detection takes about 20ms, the face feature extraction takes about 300ms, and the face comparison takes about 0.1ms.;
Support stranger detection, stranger level configurable;
Support for live photo preservation when face recognition or stranger detection;
Support interface docking;
Support customization;
Support screen display content configuration;
Support recognition distance configuration;





Main parameter Detailed description
Operating system Android 7.1

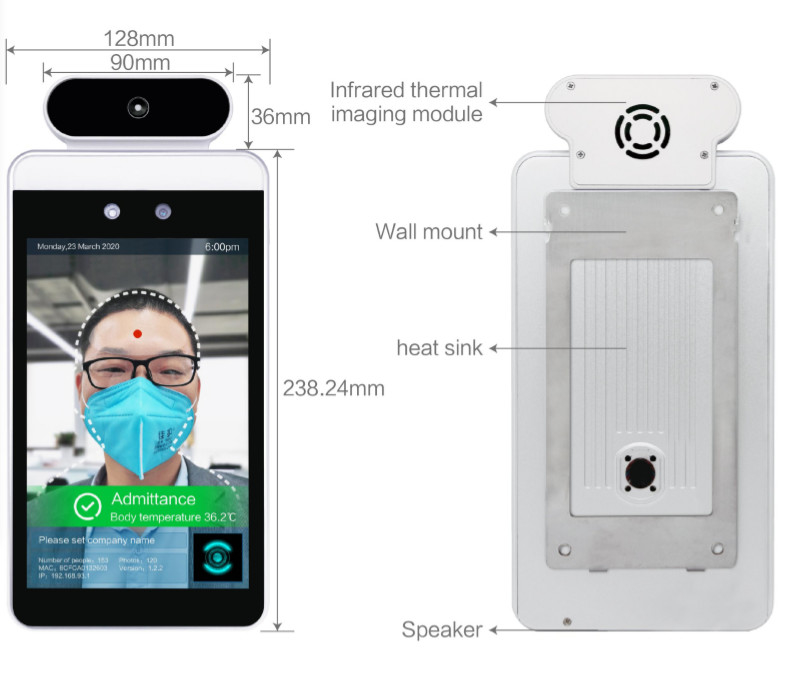

Size 234mm *125mm *24.5mm
weight 1.5KG
CPU 4core RK3288
ISP Built in two-way ISP
Memory 2GB
Storage 8GB
Screen 8 inch, full view IPS LCD,1280*800
Camera

200W dynamic dual camera, 4.0mm aperture, 0-2m focal length, automatic

white balance.

Fill-in light Built in night infrared + professional white light high color LED face light source
Temperature module

The measurement distance is 1m; the measurement accuracy is ± 0.3℃ to

± 0.5℃

Interface

Audio output * 1, network port * 1, USB2.0 * 1, access control port * 1,

RS232 interface * 2 (1 485 / 1 WG input, 1 WG output), OTG interface * 1,

power port * 1

Phonetic device Built-in
Card reading module (optional) IC card reader, ID card reader
Appearance Aluminium alloy
Power supply and consumption DC12V/3A; 5W
Work environment Temperature: - 10 ℃ - + 60 ℃; humidity: 10-90% relative humidity, no condensation
Electromagnetic radiation No frequency point exceeding the standard
Protection level IP64, waterproof and dustproof, outdoor with sunshade
