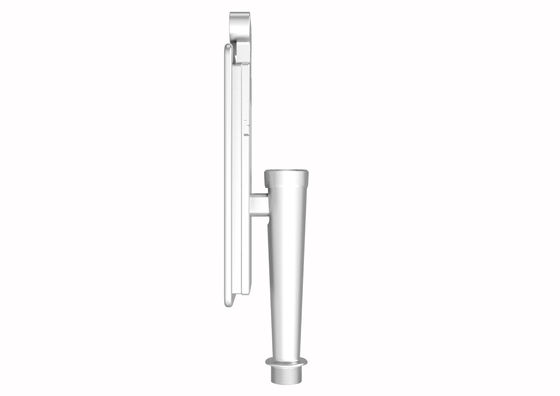

Full HD camera Dynamic Face recognition device with Android QR code scan and NFC reader
| Features&Advantages |
| Support Real Time Human Body Detection . |
| Using Linux operating system, better system stability. |
| Face recognition algorithm to accurately recognize faces, face recognition time is less than 0.5s. |
| Support free switching 1:N/1:1 (IC card, QR code, ID card) recognition mode 1: N with 0.8s comparison efficiency. |
| Support for AD file playback. |
| Support PIR human body sensing wake-up function. |
| Support TF card storage, pictures are stored continuously for 1 year, video is stored continuously for 7 days. |
| Support 65000+ face matching library and 250,000 face recognition records. |
| Rich interface protocol, support SDK and HTTP protocol under various platforms such as Windows/Linux. |
| Support tracking of personnel movements under strong backlight conditions. |
| The host supports an external ID card reader (For Chinese ID card). |
| The host supports the Wiegand interface to connect with the personnel gate and the access control host, and acts as a face recognition reader. |
Specifications:
| Hardware | ||
| Processor | Sextuple processor + 2G memory + 32G flash | |
| Operating system | Linux Operating system | |
| Storage | Support TF card storage | |
| Camera module | U21R | |
| Sensor | 1/2.8" Progressive Scan CMOS | |
| Lens | 6mm(optional) | |
| Performance | ||
| Recognition height | 1.2~2.2 meters,Angle can be adjusted | |
| Recognition distance | 0.5~5 meters,depends on lens | |
| Face angle | 30 degrees left and right, 30 degrees up and down | |
| Recognition time | Less than 1 second | |
| Function | Support 250,000 capture library, real-time capture, support 65,000 list library | |
| Interface | ||
| Switch inputs | 1ch switch input | |
| Power | DV12V/3A | |
| Network Interface | 1x RJ45 10M / 100M Adaptive Ethernet port | |
| Wiegand Interface | 1ch Wiegand interface input/output | |
| USB interface | 1ch USB interface | |
| Camera Data | ||
| Camera | Two cameras: 1x B/W camera ; 1x color camera | |
| Effective pixels | 2MP,1920*1080 | |
| Min Illumination | Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR) | |
| SNR | ≥50db(AGC OFF) | |
| WDR | ≥120db | |
| Video Coding | H.265 Main Profile /H.264 BP/MP/HP /MJPEG | |
| Resolution | Main stream:50Hz: 25fps (1920×1080,1280×720) 60Hz: 30fps (1920×1080,1280×720) |
|
| Sub stream:720*576,1-25(30)fps/640*480,1-25(30)fps 320*240,1-25(30)fps |
