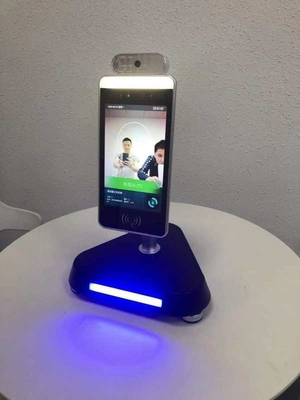

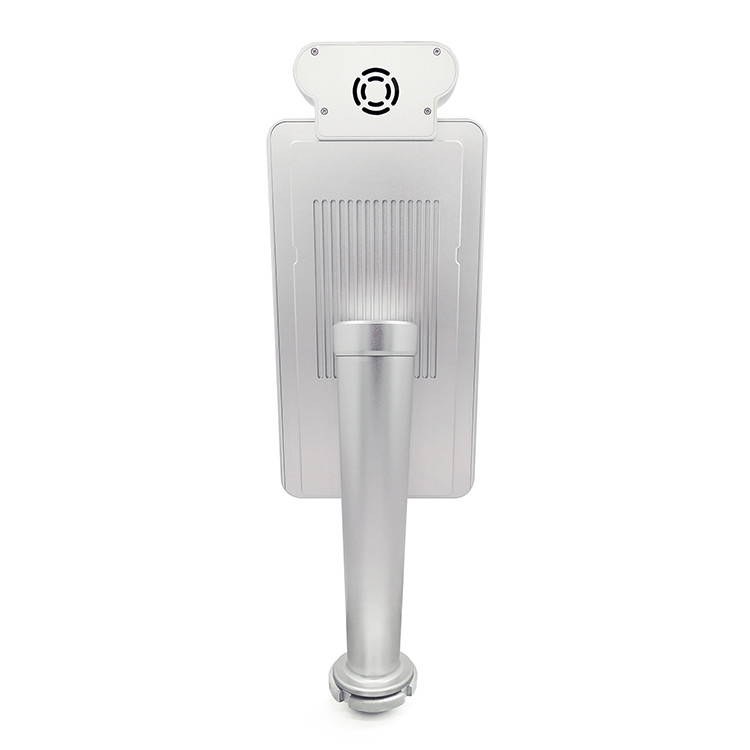

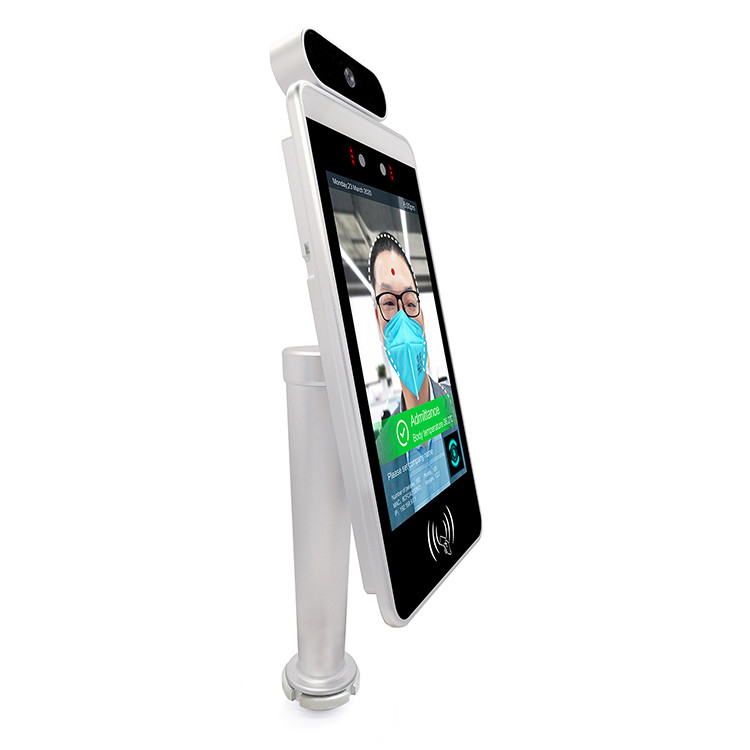

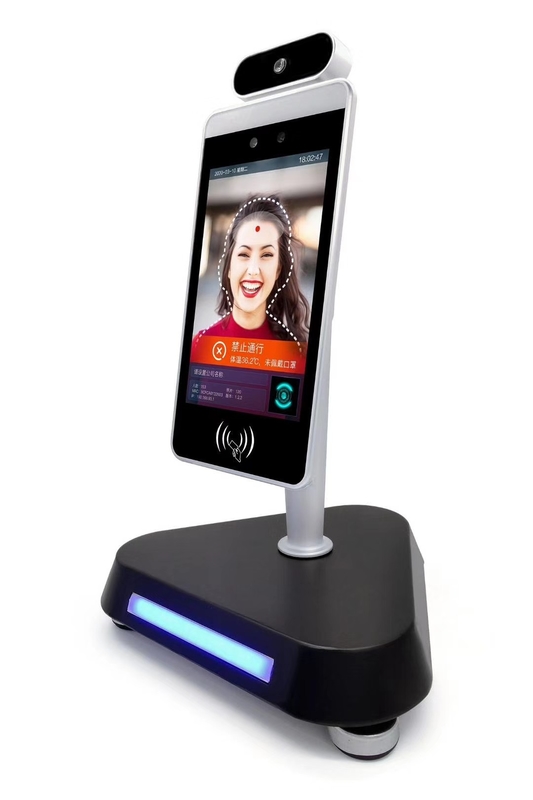

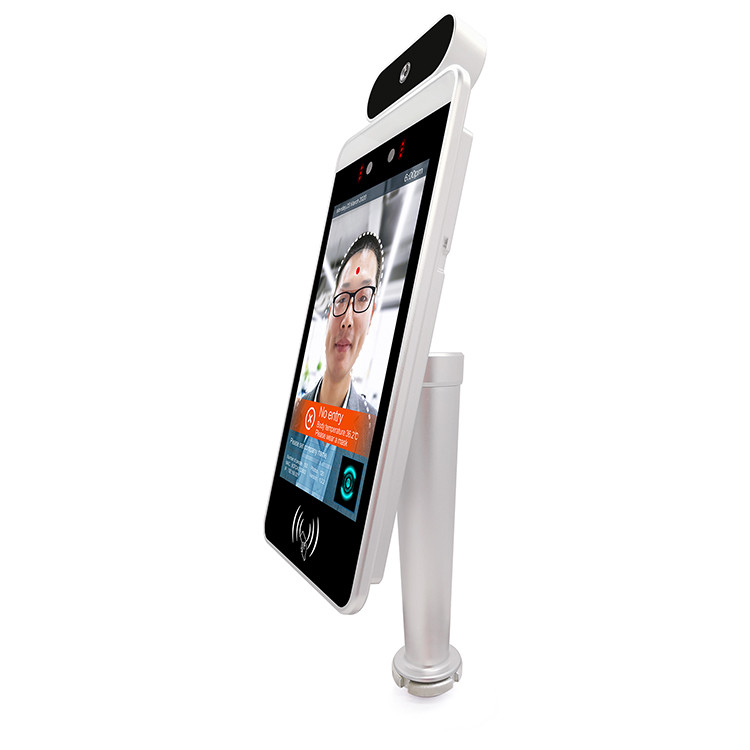

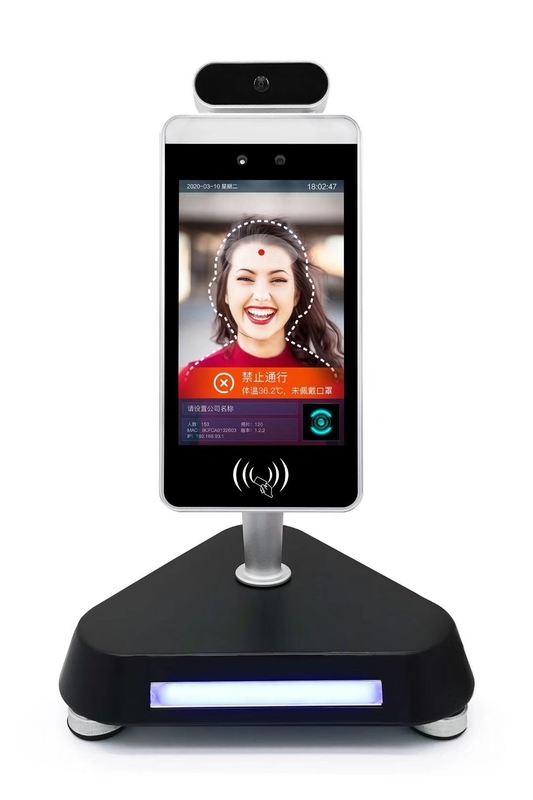

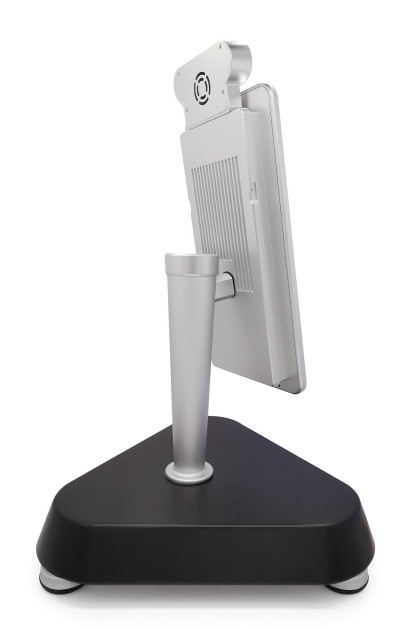

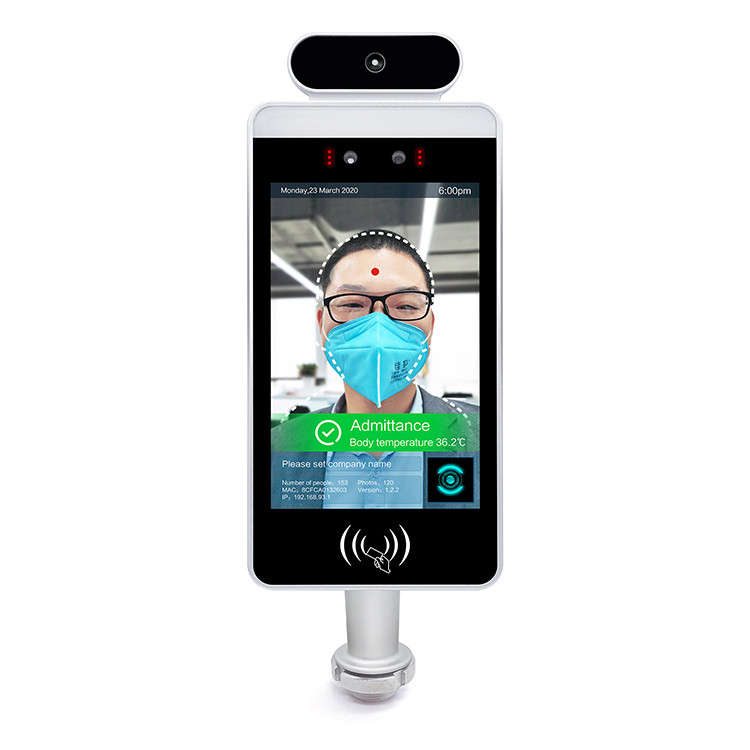

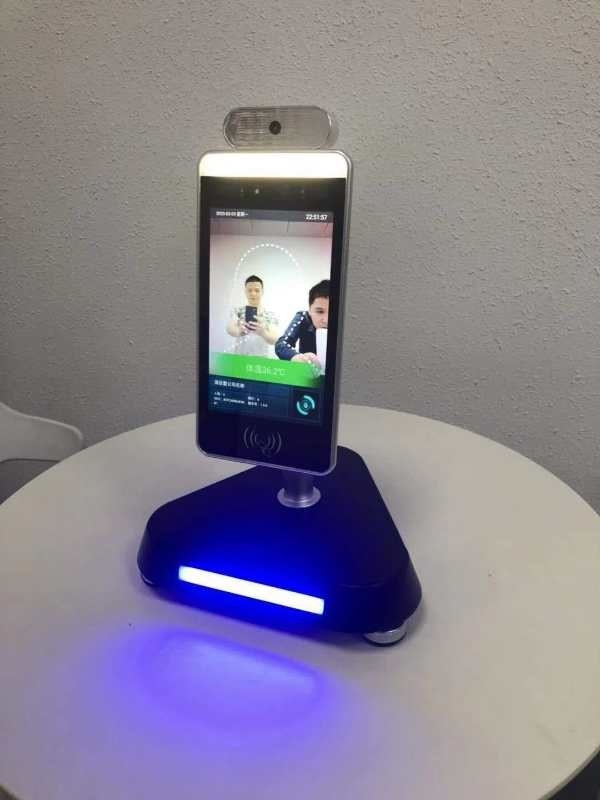

AI Smart Body Non Contact Face Recognition Camera Scanner 8 Inch IPS LCD Screen
Parameters
Camera
|
Resolution |
2 million pixels
|
Camera Type | binocular wide dynamic camera | |
Aperture | F2.4 | |
Focusing distance | 50-150cm | |
White Balance | Auto | |
Photo flood light | LED and infrared double flood light | |
Screen
|
Screen size | 8.0 "IPS LCD Screen |
Resolution | 800 × 1280 | |
Touch | optional support | |
Processor | CPU | RK3288 quad core (optional rk3399 six core, msm8953 eight core) |
Storage | EMMC 8G | |
Interface
|
Network module | Supports Ethernet, wireless (WiFi) |
Audio | support 2.5W/4R | |
USB | 1 USB OTG, 1 USB host standard A port | |
Serial communication | 1 RS232 serial port | |
Relay output | 1 door opening signal output | |
Wigan interface | 1 Wigan 26 / 34 output,1 Wigan 26 / 34 input | |
Wired Network | 1 RJ45 Ethernet socket | |
Upgrade button | supports the uboot upgrade | |
Function | Card reader | optional IC card reader/ID card |
Face recognition | support detection and tracking of multiple people at the same time | |
Face Library | UP to 30,000 | |
1:N face recognition | Support | |
1:1 face comparison | Support | |
Stranger detection | Support | |
Identify distance configuration | Support | |
UI interface configuration | Support | |
Upgrade remotely | Support | |
Interface |
Interfaces include device management, personnel
/ photo management, record query, etc.
|
|
Deployment
method
|
Support public cloud deployment, privatized
deployment, LAN use, stand-alone use
|
|
Infrared thermal
imaging module
|
Body temperature detection | support |
Temperature detection distance | 1m (the best distance is 0.5m) | |
Temperature measurement accuracy | ≤± 0.5 oC | |
Temperature measurement range | 10 oC ~ 42 oC | |
Visitors model | support for normal temperature of visitors | |
Temperature alarm | support |
Main Features:
1. 8-inch IPS full-view LCD display.
2. Industrial-class appearance, waterproof and dustproof design which is stable and reliable.
3. Supports 30,000 face database. The 1: 1 comparison recognition rate is more than 99.7%, the 1:N comparison recognition rate is more than 96.7%~0.1% misrecognition rate, and the live detection
accuracy rate is 98.3%~1% misrejection rate. Face recognition pass speed is less than 1 second.
4. Supports accurate face recognition and comparison while wearing a mask.
5. Using industrial-grade binocular wide dynamic camera, night infrared and LED dual photo flood lamp.
6. Support processors with strong performance: Rockchip RK3288 quad-core processor, Rockchip RK3399 six-core processor and Qualcomm MSM8953 octa-core processor.
7. Supports human body temperature detection and temperature display. The best temperature detection distance is 0.5 meters. The longest distance at which body temperature can be measured is 1 meter. The measurement error is plus or minus 0.5 ℃.
8. It only takes a few seconds for detection, and supports automatic alarm for body temperature abnormality.
9. Attendance temperature measurement data is exported in real time.
10. Supports various peripheral expansions such as ID card reader, fingerprint reader, IC card reader, two-dimensional code reader, etc.
