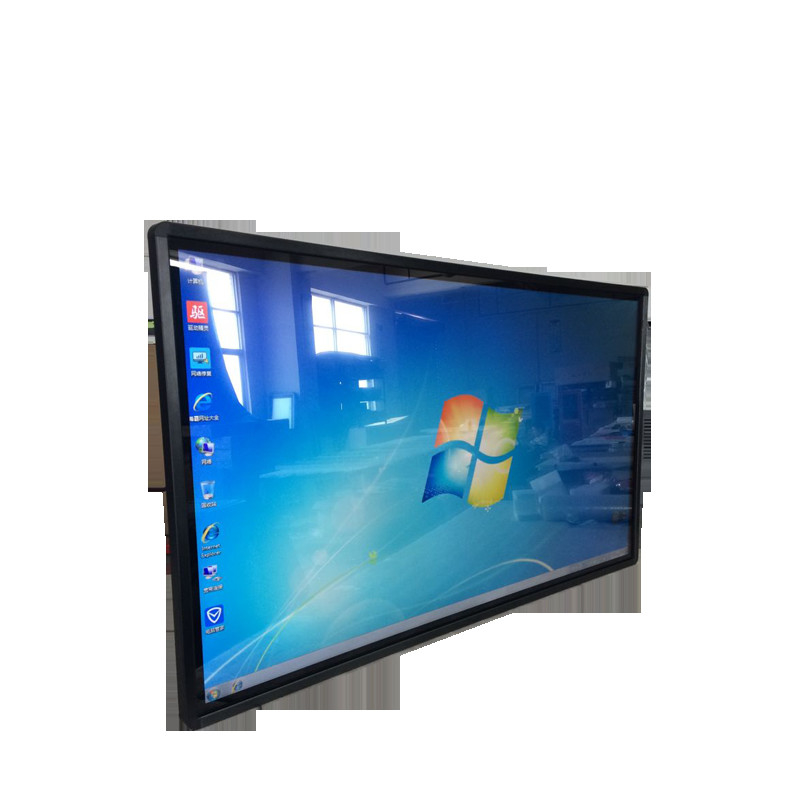

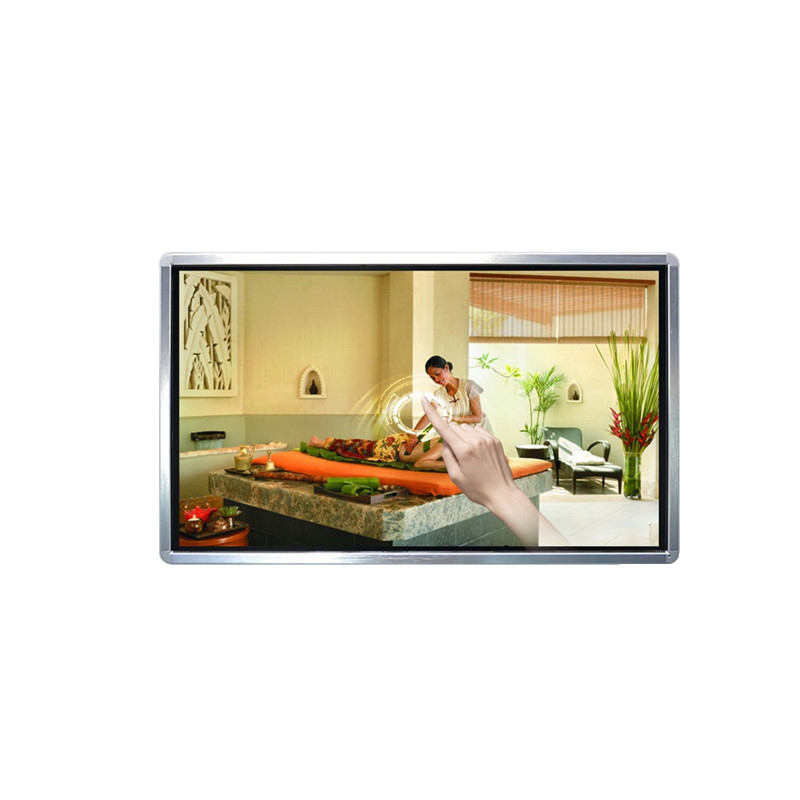

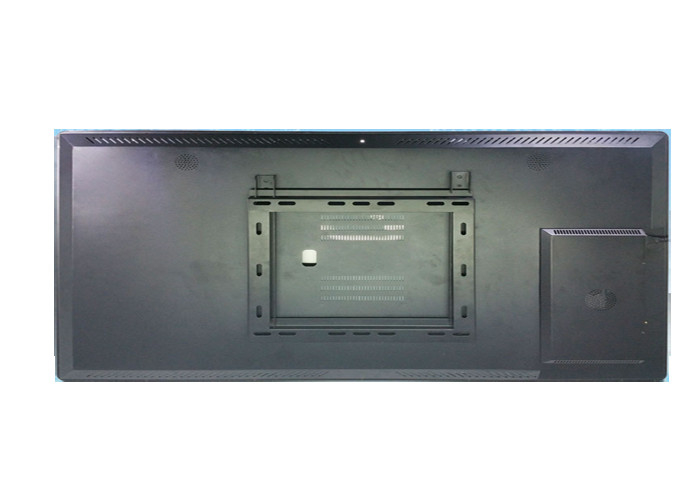

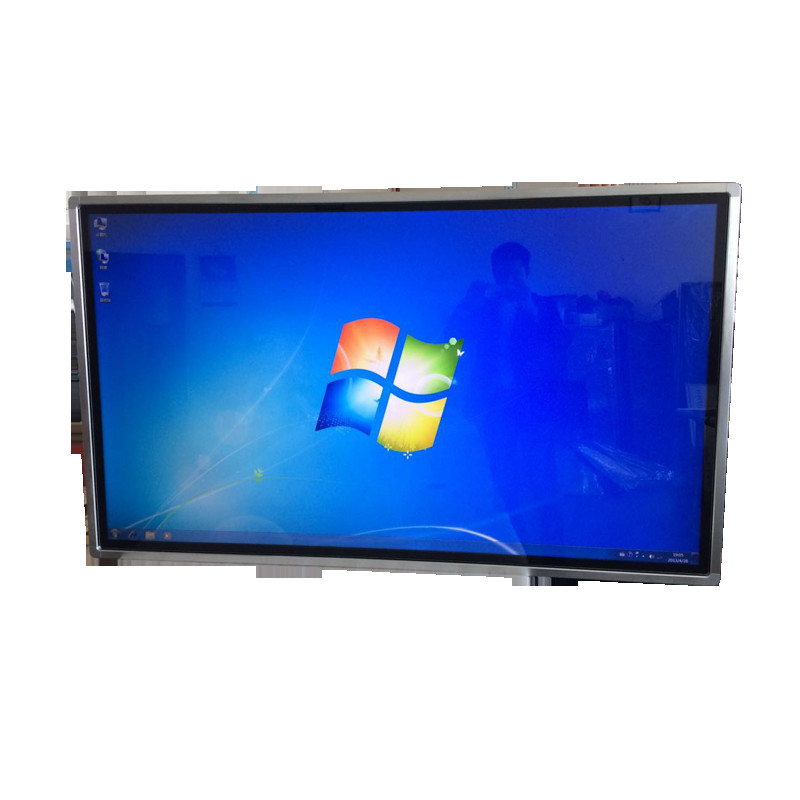

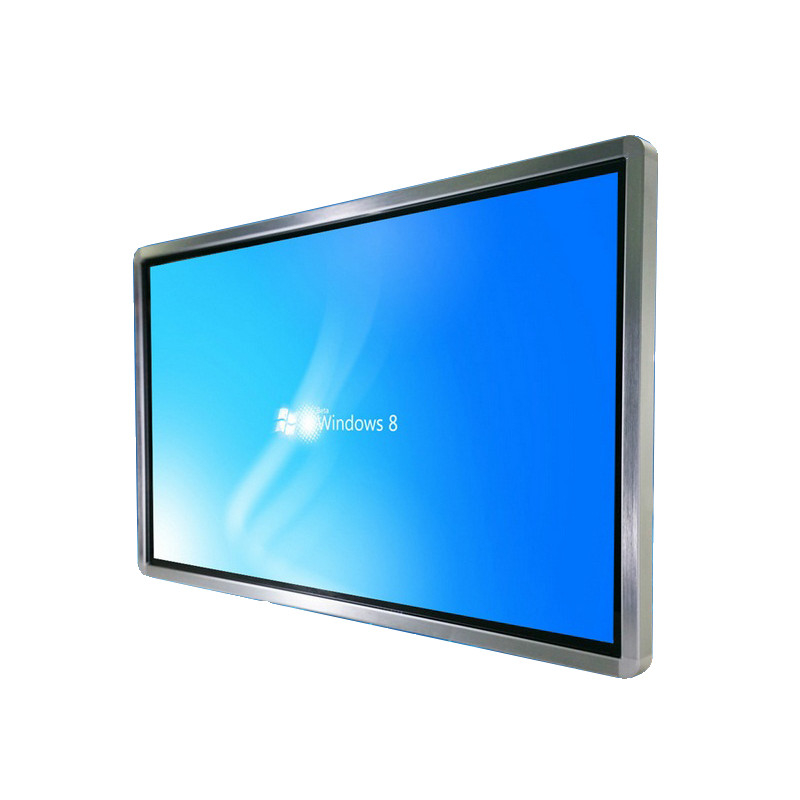

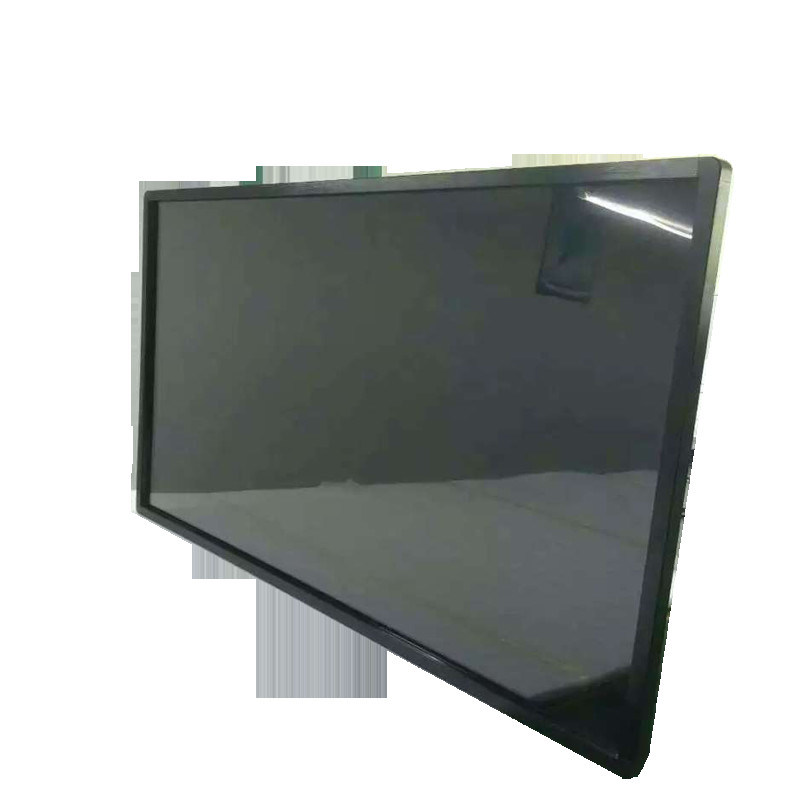

86 Inch wall mount dual system educational Smart Digital Board IR Touch Screen Interactive Whiteboard
| Screen size | 50’’/55’’/60’’/65’’/70’’/75’’/86’’/98’’ |
| CPU | intel i3; (intel i5/i7 option) |
| RAM | 4GB RAM; (8GB/16GB option) |
| Memory | 120GB SSD;(240GB SSD/1TB HDD option) |
| Windows OS | Windows 7/10 without license( license option) |
| (Android OS option) | MSD 648 Quad core |
| Android | Android 6.0 |
| Touch Technology | Infrared touch |
| Touch points | 10/20 points |
| Input way | finger touch,pen,or any opaque object |
| Touch life times | Over 60,000,000 times |
| Touch response speed | 8ms |
| Display Type | LED |
| Resolution | 1920*1080 FHD (3840*2160 UHD option) |
| Brightness | 400(cd/m2) |
| Ratio of display | 16:09 |
| Best viewing angle | up:89 down:89; left:89 right:89 |
| Max. viewing angle | 178° |
| Contrast ratio | 5000:1TYP |
| Glass type | 4mm tempered glass |
| Glass transmittance | 95% |
| Front Buttons: | |
| PC power button*1;Volume up*1;Volume down *1;Memu*1;Power on/off*1 | |
| Front ports: | |
| HDMI*1;Touch out*1;MV in*1;USB2.0*3 | |
| Back ports(Ⅰ): | |
| USB2.0 type B*1;USB2.0*2;HDMI*1;VGA*1 | |
| Back ports(Ⅱ):(Exact ports info. depends on the model of OPS PC) | |
| DC(9V-12V)*1;MIC*1;AUDIO*1;LAN*1;USB3.0*2;USB2.0*2;HDMI*1;VGA*1 | |
| Power of display | 178W |
| Colors | 16.7M |
| Life time | 60,000h |
| Working voltage | 50-60HZ 100-250V |
| Standby power | 3W |
| Working temperature | 0~45℃ |
| Storage temperature | -20℃~60℃ |
| Working humidity | 5%-90% |
| Power of speaker | 8Ω10W*2 |
| Frame material | Alloy |
| Accessories | Wall bracket/movable floor stand/pen/remote control/WIFI antenna |
| Warranty | 12 months |
| Package | 30mm thickness Honeycomb box |
