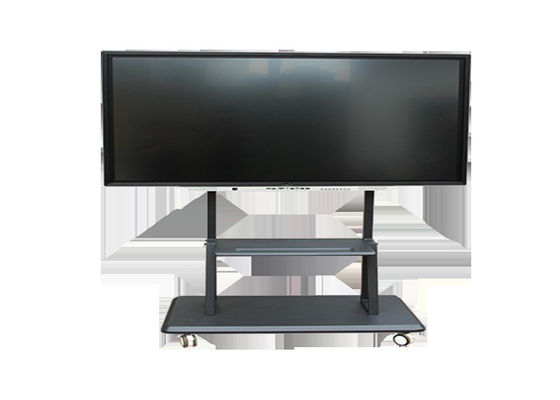

86 Inch 4K FHD Large Size Multi-Point Touch Screen Electronic Interactive Whiteboard Educational Equipment For classroom
|
65”
|
75”
|
86”
|
100”
|
|
Overall dimension (mm)
|
1505*925.5*111.1
|
1725*1042.6*109.6
|
1961*1183.5*125.7
|
2297*1373.5*115.3
|
|
Packaging dimension (mm)
|
1600*1025*215
|
1870*1150*220
|
2110*1315*240
|
2500*1630*440
|
|
Overall dimension including wall mount (mm)
|
1485.6*903*123.5
|
1725*1042.6*140.6
|
1961*1183.5*140.8
|
2297*1373.5*161.3
|
|
GW/NW (KG)
|
50/41
|
69.7/58.6
|
110/92.7
|
206/148.4
|
|
Display area (mm)
|
1428.48 (H)×803.52 (V)
|
1650.24 (H)×928.26 (V)
|
1876.2 (H)×1057 (V)
|
2177.4(H)*1238.6(V)
|
|
Brightness
|
≥350cd/㎡
|
≥350cd/㎡
|
≥350cd/㎡
|
≥400cd/㎡
|
|
Dot pitch
|
0.124 mm x 0.372 mm
|
0.4298 mm x 0.4298 mm
|
0.4875 mm x 0.4875 mm
|
0.19125×0.5735mm
|
|
Display color
|
8 bit/1.07 Billion
|
8 bit/1.07 Billion
|
8 bit/1.07 Billion
|
8 bit/1.07 Billion
|
|
Chip module
|
MSD6A648
|
|
Storage
|
2G(Memory)+32G(RAM)
|
|
Touch technology
|
Thin infrared touch,20points
|
|
Response time
|
8ms
|
|
Writing accuracy
|
1mm
|
|
Touch method
|
4mmTempered high permeability glass (Anti-glare option)
|
|
Panel life
|
≥50000 hours
|
|
Power
|
≦220W
|
≦300W
|
≦350W
|
≦410W
|
|
Power (with six-channel speaker)
|
≦240W
|
≦320W
|
≦370W
|
≦430W
|
|
Voltage
|
100V-240VAC,50/60Hz
|
|
Speaker
|
8Ω/15W*2
|
|
Six-channel speaker
|
8Ω/25W*2
|
|
OPS plug slot
|
42mm standard 80Pin interface
|
|
OPS
|
Optional
|
Remarks:
the specific parameters, functions and appearance shall be subject to the material object.
|
System
|
Chip
|
MSD6A648EVC
|
|
CPU
|
Cortex A53*4 1.5GHz
|
|
GPU
|
T720MP2
|
|
RAM
|
2G DDR3
|
|
Flash
|
32GB build in
|
|
SD card
|
Support MAX 128GB SD card
|
|
Android version
|
6.0
|
|
TV
|
ATV
|
NTSC,PAL,SECAM
|
|
DTV
|
DTMB
|
|
PC in
|
A/V in
|
Support 3840*2160P in
|
|
Multi-
media
|
Video
|
RM,MPEG2,MPEG4,H.265,RMVB,MOV,MJPEG,VC1,FLV
|
|
|
Audio
|
WMA,MP3,M4A
|
|
Analog video
|
Cvbs
|
1.0Vp-p+/-5%
|
|
YPvPr
|
480i/480P/576i/576P/720P/1080i/1080P
|
|
HD video
|
HDMI in
|
480i/480P/576i/576P/720P/1080i/1080P/2160P
|
|
port
|
Ethernet
|
X1 RJ45 ( standard)
|
|
DP (customized)
|
X1 DP ( standard)
|
|
VAG IN
|
X1 DB15,X1 external (standard)
|
|
YPbPr in
|
X1
|
|
AV IN
|
X1
|
|
AV OUT
|
X1
|
|
Earphone
|
X1 (standard)
|
|
WIFI
|
X2 5G built-in (compatible with 2.4G)
|
|
SPDIF
|
X1 Coaxial socket
|
|
HDMI IN
|
X2 HDMI in (standard)
|
|
USB (multi-media)
|
X2 USB2.0 (standard)
|
|
SD-card
|
X1
|
|
HDMI
|
X1 HDMI OUT (Customized)
|
|
USB (touch)
|
X1 external
|
|
Extensive USB
|
X2 USB2.0
|
|
|
i3
|
i5
|
i7
|
|
Chip module
|
InteI H110 Express
|
|
CPU
|
Intel Skylake
|
Intel Skylake
|
Intel Skylake
|
|
Storage
|
4G DDR4 / SSD128G
|
4G DDR4 / SSD128G
|
4G DDR4 / SSD128G
|
|
GPU
|
InteIHD Graphics
|
InteIHD Graphics
|
NIVIDA GT1030 2G (discrete)
|
|
Interface
|
4*USB2.0, 2*USB 3.0, 1*RJ45 Ethernet, 1*HDMI, 1*DP out, 1*LINE out, 1*MIC in, WIFI: COM optional (High- level configuration 4*
USB3.0, 2*USB2.0)
|
|
OS
|
Windows10
|
