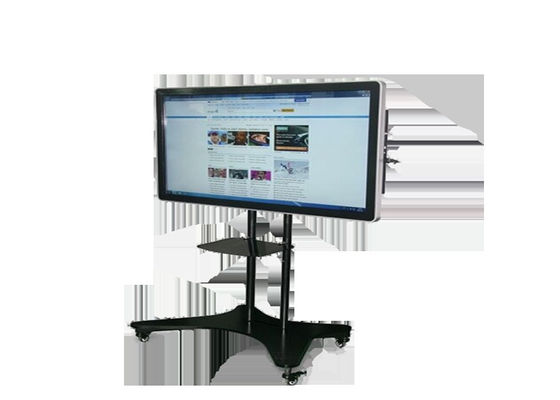

75 inch writing touch screen digital tv smart board interactive whiteboard for meeting
MJK interactive flat panels have two stylish frontal speakers, ideally suit meeting spaces. And this conferencing flat panels delivers intuitive collaboration and display, it is very easy to have wireless presentation. Efficient and collaborative meetings just at a touch.
| Panel | Screen Size | 65" |
| Display Ratio | 16:9 | |
| Lightsource/ Backlight | DLED | |
| Resolution (pixels) | UHD 4K 3840*2160 | |
| Brightness (Typical) | 350 cd/m² | |
| Contrast Ratio (Typical) | 5,000:1 | |
| Viewing Angel | 178°/178° | |
| Response Time (ms) | 3~8ms | |
| Color Gamut (x% NTSC) | 65% | |
| Panel Bit (8 or 10) | 10 bits, 16.7M | |
| Backlight Life (Typical) | ≥120,000 hours | |
|
Dual OS |
Android | Android OS |
| RAM 2G+ROM 32G | ||
| Windows | Windows 7/8/10 | |
| CPU: intel i3( i5/i7 optional) | ||
| RAM 4G+ 120GB SSD (500GB HDD optional) | ||
| Glass | Tempered Glass | 4mm, Tempered Glass, M7 |
| Anti-Glare | Yes | |
| Touch | Touch Technology | IR Touch/ Infrared touch |
| Numbers of Touch | 10 points (UP to 32 points) | |
| Resolution (Points Area Function) | 32,767x32,767 | |
| Touch Tools | Fingers, touch pens or opaque objects | |
| Response Time | 3~8ms | |
| Positioning Accuracy | ±2mm (more than 90% touch area) | |
| Touch Lifetime | ≥80,000 hours | |
| Power | Voltage | 100V-240V, 50/60Hz |
| Wattage (Typical) | 310W | |
| Standby Power Consumption | ≤3W | |
| Input & Output |
Input | USB*6, VGA*1, RJ45*1, WIFI*2, D-SUB 9 Pin*1,VGA(D-SUB15pin)*1, HDMI*3 |
| Output | USB*2, COAX*1, EARPHONE*1 | |
| OPS Interface |
RJ45*1, MIC*1, AUDIO LINE*1,USB3.0*2, USB2.0*4,HDMI*1, VGA*1, WIFI*1 |
|
| Mechanical | View Size(L*H)(mm) | 1430*804 |
| Screen Size(L*H*T)(mm) | 1515*935*103 | |
| Wall Mounting Size(L*H*T)(mm) | 650*215*35 | |
| Package Size (L*H*T) (mm) | 1680*1070*215 | |
| N.W. (KG) | 47 | |
| G.W. (KG) | 61 | |
| OSD | On-screen Display Language | Chinese & English |
| Accessories | Writing Pen | x1 |
| Remote Contro | x1 | |
| Instruction Manual | x1 | |
| Wall Mounting Bracket | x1 | |
| Power Cable | x1 | |
| Portabl Floor Standing Bracket | Optional |
