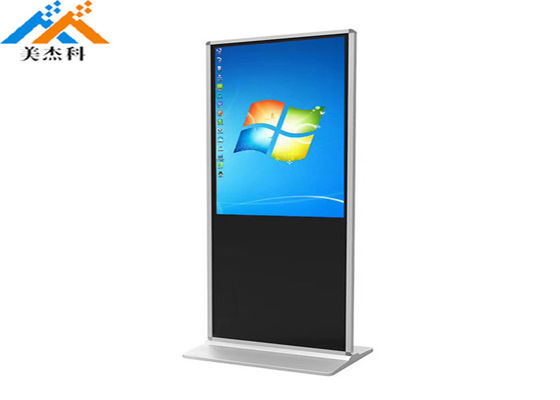

LCD led backlight digital signage 4k totem with touch screen
| Specifications | |
| Model No. | CTA-AD4910 |
| Panel size | 21.5-65" TFT-LCD |
| Display area(mm)/mode | 588(w)×1044(h)mm 9:16 |
| Maximum resolution | 1920*1080 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.4845(H)×0.4845(V) |
| Brightness (nits) | 500cd/m2 |
| Contrast | 2000:1 |
| Visual angle | 178°/178° |
| Response time | 5ms |
| Life(hrs) | >60,000(hrs) |
| Touch Panel | |
| Specification | Infrared Touch/Capacitive Touch |
| positioning accuracy | ±2mm |
| Touch Media | Finger/touch pen opaque objects |
| Transmittance | ≥92% |
| Glass Hardness | 7H |
| Click Mode | 2/4/6/8/10 points/multipoint(optional) |
| Response Time | ≤5ms |
| ClickLife Time | >=60M times |
| Android | |
| Andriod system | Google Android 5.1 support multi-language with wifi moulde |
| Storage | 2G/4G/8G DDR3 |
| CPU | 1.8 Ghz/quad-core RK3288 |
| Flash | 8GB/16GB/32GB |
| Computer | |
| Motherboard | H61/H81 |
| CPU | I3/I5/I7 |
| Memory | DDR3 1333MHZ 4GB/8GB |
| Hardware | SATA II320GB/500GB |
| Keyboard and Mouse(Optional) | wireless waterproof keyboard and mouse set |
| Interface | USB*4,VGA*1,DVI*1,HD*1,RJ45*1,Audio*1,MIC*1 |
| Software environment | Windows XP/ Windows 7/ Windows 10 /Linux |
| Video | |
| Color system | PAL/NTSC/SECAM |
| OSD display( screen menu display) | |
| Menu language | Chinese/English( Multiple Language Supported) |
| Power | |
| Power supply | 100-240V AC 12V/ DC |
| Maximum power consumption | 230W |
| Standby power consumption | <3W |
| Temperature | |
| Working temperature | -20°C~+80°C |
| Storage temperature | -40°C~+80°C |
| Working humidity | 25%~85% |
| Storage humidity | 20%~90% |
| Support signal format | |
| Video format | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI |
| Audio format | Wave/MP3/WMA/AAC |
| Image format | JPEG/BMP/TIFF/PNG/GIF |
| Image resolution | 480P/720P/1080P |
| Appearance | |
| Body dimension(Lx W x H)mm | 1000*500.*1300.2 ((for reference) |
| Panel color/appearance | White, black, customized |
| Panel material | Metal case SPCC |
| Installation | Floor-standing |
| Quality Standard | ISO9001,CCC,CE,FCC,ROHS |
| Sample leading time | 12~15 working days |
| Bulk order leading time | 12~15 working days |
| Payment term | T/T or Western union |
| Warranty | 1 year |
MJK ELECTRONICS CO., LTD
was established in 2005. Our company is located in shenzhen, China.Our company is a professional Hi-Tech enterprise engaged in all kinds of LCD digital signage displays such as outdoor kiosks,interactive touch kiosks, touch screen table ,wall mounted displays,floor standing displays,,LCD monitor ,videowall,etc.which are the most widely using media in retail, shopping center, restaurant, hotel, bank, building, airport,showroom etc.
We have a professional and precise technical support team, including software development engineer, electronic engineer, construction engineer, who are outstanding in the digital signage.As one of the leading company in digital signage,MJK offers very innovative, stylish, and full-function products, which are welcome by the clients from over fifty countries and areas.
MJK always takes the strict QMS system to control quality for Zero Fault, so as to meet various standards from clients worldwide. Our products acquire CE, FCC, ROHS,3C certifications so far.
Having rich experience in OEM & ODM cooperation, we are capable of offering you factory price with guaranteed quality as well as complete after-sale service. We have and will always try our best to meet every possible demand of our customers.
FAQ
Q1: Are you a factory or a trading company?
A: We are a factory and we have 2 factories.We integrate R&D team,manufacture,quality control team,sale and after-sale service.
Q2: How many engineers you have?
A: We have 15+ hardware engineers and 20+ software engineers.
Q3: What is your MOQ?
A:Any quantity is acceptable for your order, and the price is negotiable for large quantity.
Q4:what brand of screen are you using?
A:we always use LG,AUO ,BOE, , and CHIMEI screens etc.
Q5: Do you have your own enclosure factory?
A:Yes, we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM or ODM service would be also welcome.
Q6: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery.
Q7: What will you do if the product be nature damage within warranty time and how about out that time?
A: Well, our engineers and QC department will give some quite simple questions to help us confirm the questions and give you a report and the free replacement will be send.
Also, we will just request a very low price for replacement part, if the product out of warranty time.
Q8: Can I customize the product I ordered?
A: Of course, customization offer from customers are most welcome in our company.
Our products are sold all over the world, you can rest assured.
