Specification:
| Panel Size | 28.5 inch |
| Display Area | 698.4 × 196.4mm(H*V) |
| Overall Dimension | 760 x 258 x 48mm(H*V*T) |
| LCD Type | TFT-LCD panel |
| Resolution | 1920×540 |
| Display Color | 16.7M |
| Brightness (nits) | 500cd/m2 |
| Contrast Ratio | 3000:1 |
| Viewing Angle | 178°/ 178°(H/V) |
| Response Time | ≤6.4ms |
| Frequency | 60Hz |
| System and Configuration | |
| CPU | All Winner A83T, 64 bit High Speed Quad Core, ARM Cortex-A53 2.0GHz |
| OS | Android 4.4.4 |
| GPU | Mali400 MP2 |
| RAM | DDR3 Standard: 1GB ( 2GB Available) |
| Built-in Storage | EMMC Standard: 8GB ( 16GB / 32G Available ) |
| HDMI×1 | |
| Vidwo Port | USB×2 ( USB OTG*1, USB Host*1 ) |
| SD×1 | |
| Audio Input | Support MIC, 1 Micro Phone Port |
| Ethernet | RJ45 Standard Port,Gigabit Ethernet Port, Support Ethernet |
| Support Bluetooth+wifi Module,Support Wi-Fi 802.11b/g/n Protocol | |
| Image Rotation | Support 0 °, 90 °, 180 °, 270 ° Manual Rotate |

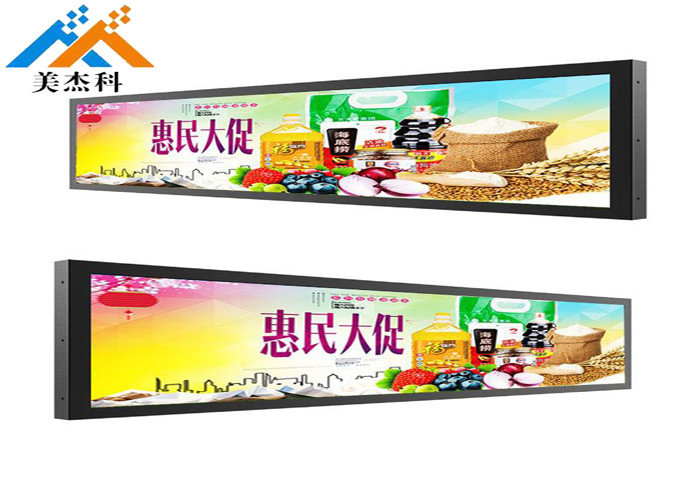

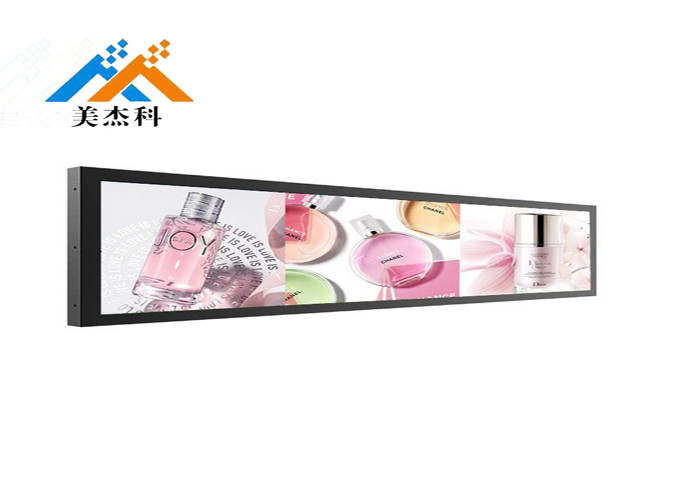

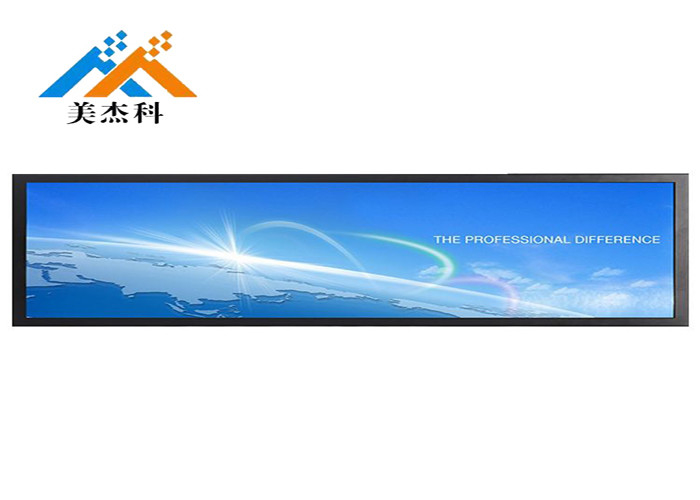

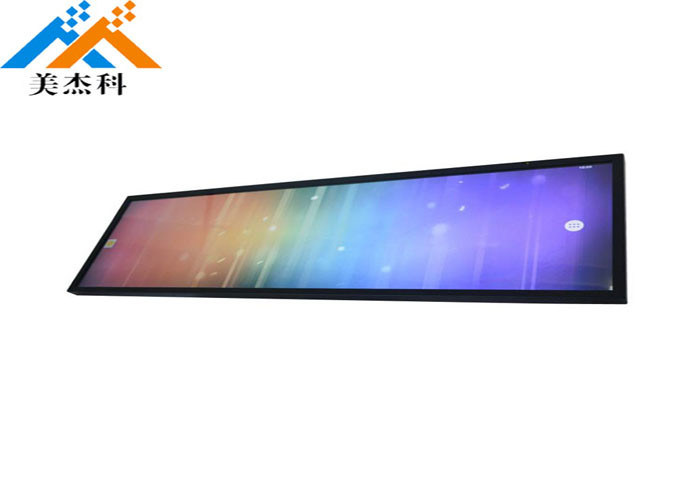

Advantage of Use Bar LCD Display
1.The use of supermarket shelves LCD display can increase the orderly placement of goods. Such as supermarket shelves TFT LCD digital poster, goods new arrivel information on LCD screen, can make the supermarket's products fresh taste, beautiful display on the shelves, and promote customers' desire to buy.
2. The use of shelves TFT LCD bar type display can reduce the cost of printing advertising poster cost, and updated the digital goods information remotely.
3. The use of ultra thin lcd display on shelf can improve the efficiency of employees. Such as driving into the shelves, can be used with a forklift, reducing the labor intensity of employees, saving the cost of human resources for the company.
4. The use of supermarket shelves lcd digital poster can make the visitors , customer have impact in their minds.And it displays in all sides with intelligent.
1.Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc.
2.Outer shell is made of extra good quality metal material, which is painted by powder-spray craft work.
3.This machine is of android OS design, which could be connected to internet,and supports remote office cotrol .
4.Remotely report system utilization and memory usage.
5.Content plays automatically upon set up of schedule.
6.Control, monitor and design screen layouts remotely by the remote control office.
7.Color for metal outer frame is available with Black color, Shinning-silver color, Golden Color, cream-white color; Color Is Optional.
8.Brands of LCD screen for , LG, Chime, HSD, AU, Toshiba etc, A Class 335 standard, full new and factory original packing screen.

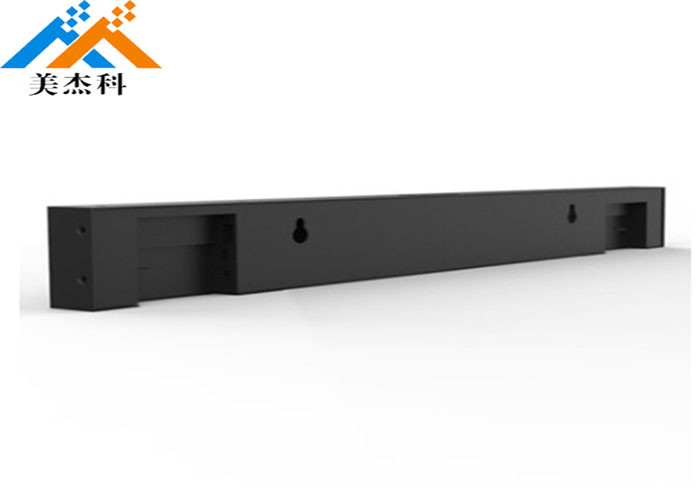

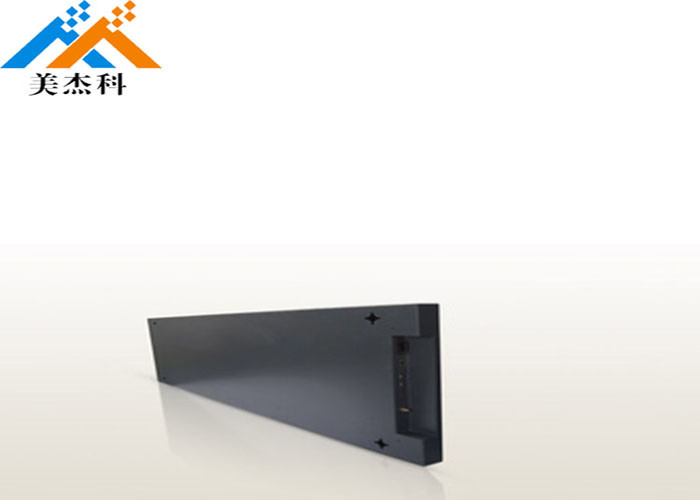

9.Fixing method: wall mounting or ceiling fixing.
10.Easy connection to wifi.
MJK ELECTRONICS CO., LTD
was established in 2005. Our company is located in shenzhen, China.Our company is a professional Hi-Tech enterprise engaged in all kinds of LCD digital signage displays such as outdoor kiosks,interactive touch kiosks, touch screen table ,wall mounted displays,floor standing displays,,LCD monitor ,videowall,etc.which are the most widely using media in retail, shopping center, restaurant, hotel, bank, building, airport,showroom etc.
We have a professional and precise technical support team, including software development engineer, electronic engineer, construction engineer, who are outstanding in the digital signage.As one of the leading company in digital signage,MJK offers very innovative, stylish, and full-function products, which are welcome by the clients from over fifty countries and areas.
MJK always takes the strict QMS system to control quality for Zero Fault, so as to meet various standards from clients worldwide. Our products acquire CE, FCC, ROHS,3C certifications so far.
Having rich experience in OEM & ODM cooperation, we are capable of offering you factory price with guaranteed quality as well as complete after-sale service. We have and will always try our best to meet every possible demand of our customers.
FAQ
Q1: Are you a factory or a trading company?
A: We are a factory and we have 2 factories.We integrate R&D team,manufacture,quality control team,sale and after-sale service.
Q2: How many engineers you have?
A: We have 15+ hardware engineers and 20+ software engineers.
Q3: What is your MOQ?
A:Any quantity is acceptable for your order, and the price is negotiable for large quantity.
Q4:what brand of screen are you using?
A:we always use LG,AUO ,BOE, , and CHIMEI screens etc.
Q5: Do you have your own enclosure factory?
A:Yes, we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM or ODM service would be also welcome.
Q6: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery.
Q7: What will you do if the product be nature damage within warranty time and how about out that time?
A: Well, our engineers and QC department will give some quite simple questions to help us confirm the questions and give you a report and the free replacement will be send.
Also, we will just request a very low price for replacement part, if the product out of warranty time.
Q8: Can I customize the product I ordered?
A: Of course, customization offer from customers are most welcome in our company.
Our products are sold all over the world, you can rest assured.
