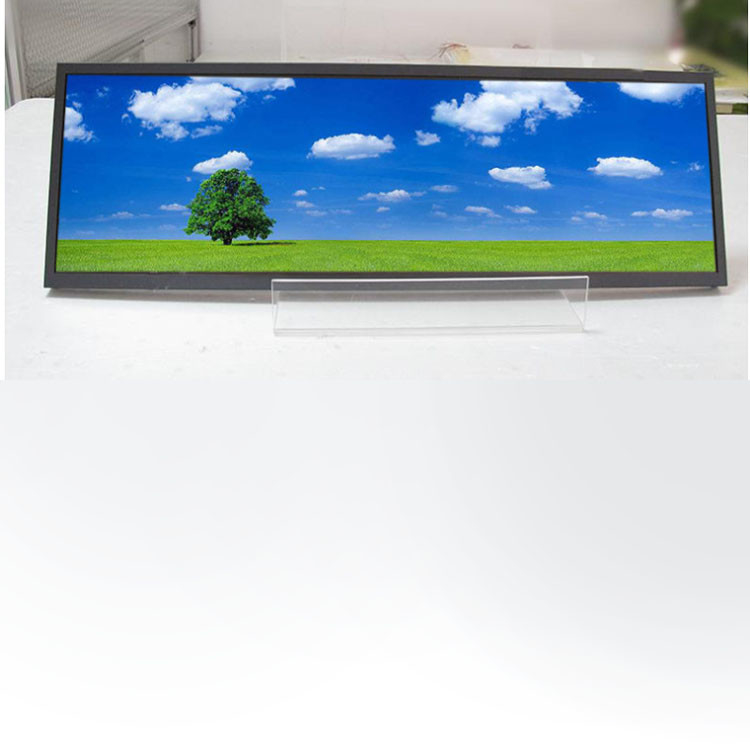

Indoor Stretched Bar LCD 28" Advertising Touch Screen TV Advertising

Indoor Stretched Bar LCD 28" Advertising Touch Screen TV Advertising

Bar Intelligent Technology production of bar LCD screen, widely used in bus, taxi, subway, car LCD display, industrial Process Control display system, shopping malls, hotel information display system, financial securities information Display system, Enterprise video conferencing display system, mining safety production system, City command system, fire, meteorology, Maritime Flood Control command system, airport flight display, baggage safety system, theatre, advertising, exhibition display system, Brand store image display system and so on.

Parameter:

CPU: RK3188, quad-core, frequency 1.6GHz
Memory: 1 / 2G (optional)
Built-in memory: EMMC FLASH 8G (optional)
Built-in ROM: 2KB EEPROM
Decoding resolution: up to 1080P
Operating system: Android 4.4 above
Play mode: support for the cycle, timing, spots and other playback modes
Network support: 3G, Ethernet, WiFi support, wireless peripherals expansion
Video playback: support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 and so on
Picture format: support BMP, JPEG, PNG, GIF
USB2.0 interface: 3 USB HOST, 3 USB socket
Serial port: 3 serial socket
TVIn: CVBS input 2, support N, P standard
GPS: built-in GPS (optional)
WIFI, BT: built-in WIFI, BT (optional)
Ethernet: 1, 10M / 100M adaptive Ethernet
Timing switch machine: support

Screen size: 28"
Resolution: 1920 (RGBW) x 1080[UHD]
Display size: 597.6 (horizontal) x 336.15 (vertical) mm
Visual size: 601.6 (horizontal) x 340.15 (vertical) mm
Brightness (cd/m2):350 (Typ.)
Best angle: full view
Visual angle: 89/89/89/89 (Min.) (CR = 10)
Pitch: 0.0346x0.1038mm
Color number: 16.7M, 72% (CIE1931)
Screen weight: 2.18Kgs (Typ.)
Refresh frequency: 60Hz
Signal system: 30 pins LVDS (2 CH, 8-bit), terminal
Supply voltage: 5.0V (Typ.)
Maximum rating: storage temperature: -20 ~ 60 degrees C working temperature: 0 ~ 50 degrees C
Screen type: LCD module, a-Si TFT-LCD
Pixel configuration: RGBW vertical strip
Appearance size: 613.6 (transverse) x 356.85 (vertical) x 10.5 (thick) mm
Surface treatment: Fog (Haze 1%), Hard coating (3H)
Contrast: 1000: 1 (Typ.) [transmission]
Optical mode: TN, usually black display, transmission type
Response speed: 7/5 (Typ.) (Tr/Td) MS
Backlight type: WLED [17S4P], 30K hours, no drive
