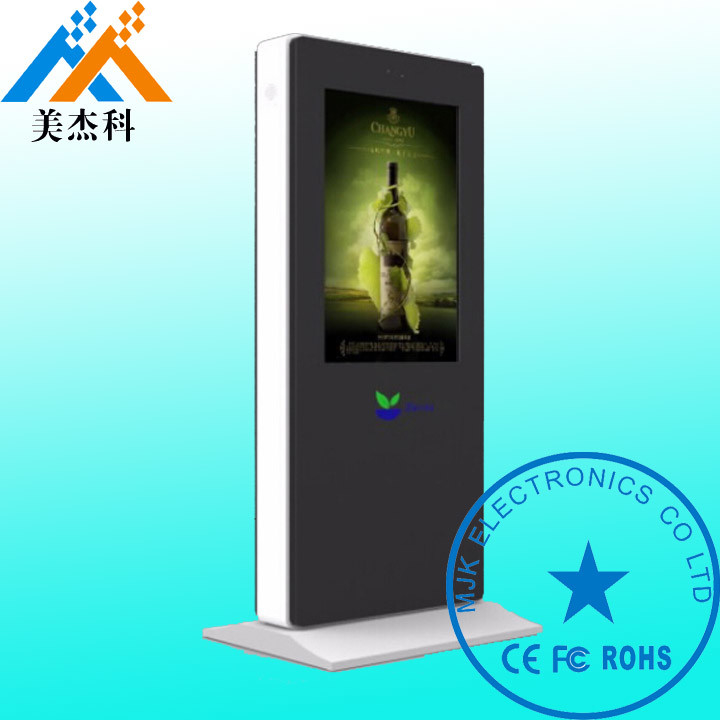

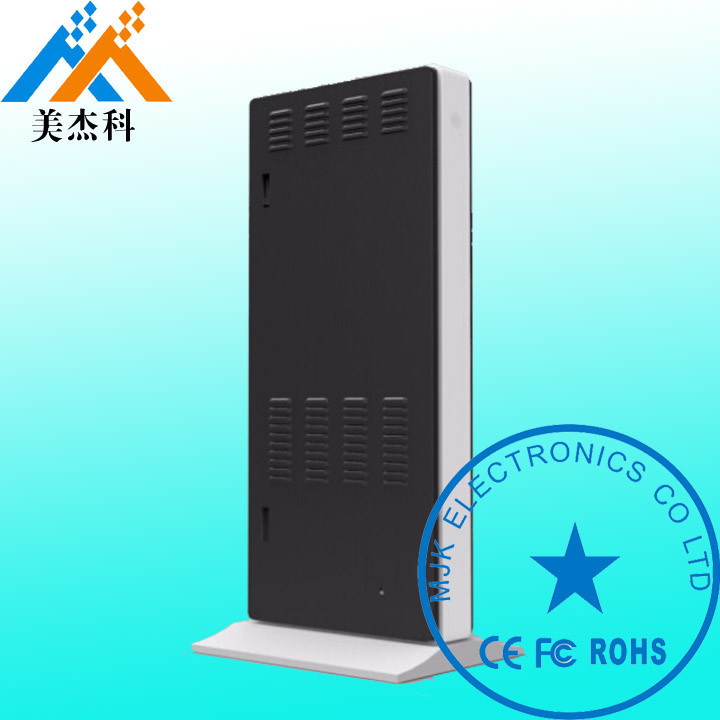

10 Points Infrared Vertical Outdoor Digital Signage Touchscreen 46 Inch For Chain Store

10 Points Infrared Vertical Outdoor Digital Signage Touchscreen 46 Inch For Chain Store

  • High Light

    waterproof digital signage

    ,

    lcd digital signage

  • Display Ratio
    16:9
  • Resolution
    1920*1080P
  • Viewing Angle
    178/178
  • OS
    Android
  • Color
    Any Color
  • Fixing Method
    Free Standing Or Wall Mounted
  • Place of Origin
    china
  • Brand Name
    MJK
  • Certification
    CE,Rohs
  • Model Number
    MJK-AD46ODF
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiate
  • Packaging Details
    Packed in carton firstly,and then reinforced with wooden case for outer packing
  • Delivery Time
    3-25days
  • Payment Terms
    T/T
  • Supply Ability
    5000pcs/Month

10 Points Infrared Vertical Outdoor Digital Signage Touchscreen 46 Inch For Chain Store



10 Points Infrared Vertical Outdoor Digital Signage Touchscreen 46 Inch For Chain Store





Quick Detail:



Place of Origin:SHENZHEN,GUANGDONG,CHINA(MAINLAND)

Brand Name:MJK

Response Time:6ms

Input Voltage:AC100~240V 50 /60 HZ

Display ratio:16:9

Shell:Galvanized steel sheet.

key words:outdoor digital signage

OS:Windows or Android

Type:TFT LCD touch screen with 10points infrared

Application:Outdoor/indoor

Panel Size:65 inch(32"42" 46" 47"55" 65"70"75"82" 84"optional)

Max Resolution:1920 * 1080

Viewing Angle:178°/178°(H/V)

Pixel Pitch:0.4845(H)* 0.4845(V)

Color:16.7M

Contrast Ratio:2000:1

Brightness:2000cd / m2

Sample order:support sample



Description:



Support HD resolution 1920X1080,1080P HD video and photo playback

Full HD video format playback, compatible with a variety of playback formats

Support Web/Flash Player,with Web/Flash interactive functions;

Support camera/microphone input;

Support two display modes while boot up—vertical and horizontal screen:

Support HDMI/VGA/AV output power switch freely;

More storage media support: supports SD card, SATA hard drive;



Main Features:

  • Using industrial-grade design, ease of use, appearance,
  • Has a high resolution, high contrast, high brightness, greatly improve the picture layer, better details
  • Unique cooling system can let display working under direct sunlight.
  • The out frame of the digital signage is sealed totally by galvanized sheet + outdoor surface injection treatment powder, aluminum steel sheet + outdoor surface injection treatment powder
  • The surface of the digital signage is covered with high perspectivity, low-reflection, zero ultraviolet rays glass , which can resit more than50% of the sun radiation, the screen have light sensor which can adjust the brightness according to the surrounding environment

Applications:

  1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
  2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
  3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
  4. 4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.




Specifications :



Panel Parameter Panel Size 55inch (16:9)
Active Area 1428.48*803.52mm
LCD Panel A grade LCD Panel
Max. Brightness 2000cd/m²
Max. Resolution 1920X1080
Contrast Ratio 2000:1
Panel Life 50000hours
Responsive Time 6ms
Dot Pitch 0.4845 mm x 0.4845 mm
Viewing Angle 178/178
Interface(I/O) Build in USB port(2.0), CF card and SD card slot
Power Supply AC 110V-240V, 50HZ/60HZ
Support Language Chinese, English,French, Spanish, Korea etc
Product Features Main Function Playing file automatically
With USB update
Support LAN,WIFI,3G,4G latest function.
Support video, pictures and music
Sercurity and password protection, anti-thief design
Set up time on/off inadvance
Support Remote controller
Support Safety lock system
Support Media Format MP4(AVI:DIVX/XVID),MPEG1(VCD:DAT/MPG1) ,MPG2(DVD:VOB/MPG2)MP3,JPG,Txt,Full HD Video output.
Temperature

Storage:-40Celsius degree to 5 Celsiucs degree

Working: -30Celsius degree to 55 Celsius degree

Fixing Method Free Standing/wall mounting
Color Shinning Silver(Optional for particularly color)
Housing Material 5mm thickness tempered glass as LCD panel protection layer
Applicable field Supermarket, Hotel,Mall center, Shop, Commercial buildings ,Bus station etc.
Packing information Packaging Size(mm) Subject to specific products
N.W. / G. W. (kg) 96kg/ 110kg
Packing Material Carton and Wooden package together




Competitive advantages:



Sunshine readable, high brightness 2000 nits, auto dimming.

Waterproof

Anti- thief, Anti dust.

Application areas can be public bus station, out of shopping mall, store, etc.

Certification: IP65 level

Built-in air conditioner and fans optional.
