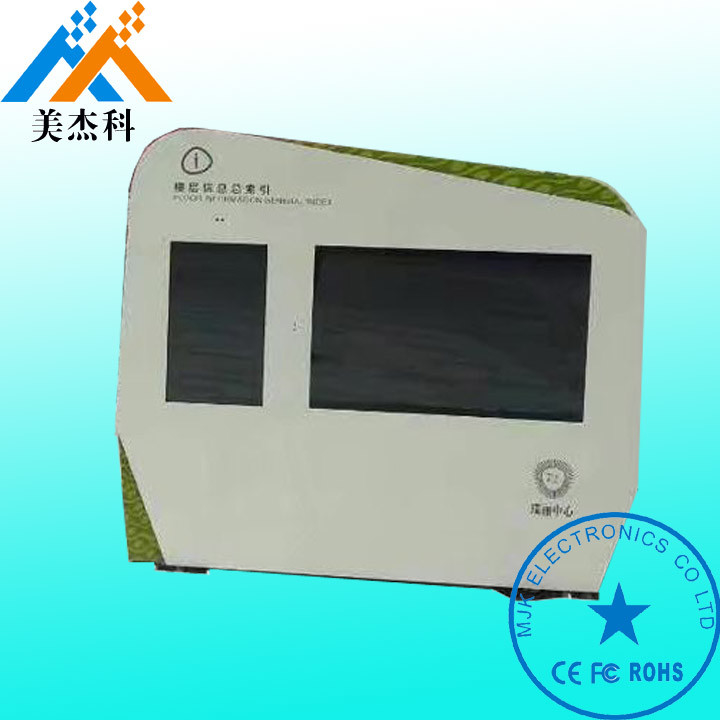

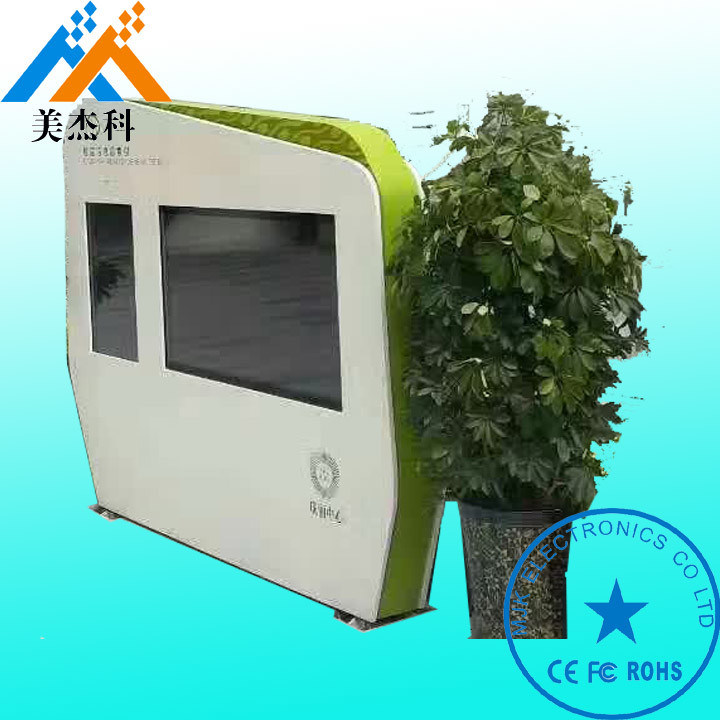

55 Inch IP65 Stand Alone Digital Signage Waterproof Viewing Angle 178°

Quick Detail:

Place of Origin:SHENZHEN,GUANGDONG,CHINA(MAINLAND)

Brand Name:MJK

Type:TFT LCD touch screen with 10points infrared

Application:Outdoor/indoor

Panel Size:65 inch(32"42" 46" 47"55" 65"70"75"82" 84"optional)

Max Resolution:1920 * 1080

Viewing Angle:178°/178°(H/V)

Pixel Pitch:0.4845(H)* 0.4845(V )

Color:16.7M

Contrast Ratio:2000:1

Brightness:2000cd / m2

Response Time:6s

Input Voltage:AC100~240V 50 /60 HZ

Display ratio:16:9

Shell:Galvanized steel sheet.

key words:outdoor digital signage

OS:Windows or Android

Sample order:support sample

Description:

1. Optional panel size: 32" 42" 46" 47"50" 55" 65" 70" 75" 84".
2. Waterproof, Anti-dust, anti-vandal, anti-theft.
3. Build in Air-conditioner cooling system, adapted to -40°C--+60°C environment temperature.
4. Front tempered glass and anti-glare glass.
5. Wall mount, hanging and free standing(fixed on ground) all available.
6. Main outer shell is made by extra quality Iron material, side frame adopts Aluminium Alloy Mould, front frame adopts 4-6mm thickness Tempered glass, which can protect the LCD panel.
7. Support break-point memory. If the power supply is cut off occasionally, the player will play from the break point next time..
8. Intelligent light system, brightness of screen auto adjusts according to environment light, saving energy.

​Main Features:

• Outdoor water proof and strong design
• Sunlight readable and brightness up to 2500cd/m2
• Air cooling system
• Wide working temperature -10~50°C
• Tempered glass (AG or AR glass optional)
• Touch screen available
• Lower power consumption
• IP65 front and Back or side
• 7- 84inch high brightness LCD panel available
• Sharp, , LG, AUO original LCD panel
• Array LED backlit, High brightness to 3000nits
• HD 1920*1080, 16:9 screen ratio
• 8bit or 10bits color (16.7M or 1.06B color)
• High contrast and vivid color, 72% color gamut

Applications:

• Public Service: Hospital, School, Telecom, Post office, etc.
• Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
• Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
• Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
• Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
• Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.

Panel Parameter

Panel Size

55inch (16:9)

Active Area

1428.48*803.52mm

LCD Panel

A grade LCD Panel

Max. Brightness

2000cd/m²

Max. Resolution

1920X1080

Contrast Ratio

2000:1

Panel Life

50000hours

Responsive Time

6ms

Dot Pitch

0.4845 mm x 0.4845 mm

Viewing Angle

178/178

Interface(I/O)

Build in USB port(2.0), CF card and SD card slot

Power Supply

AC 110V-240V, 50HZ/60HZ

Support Language

Chinese, English,French, Spanish, Korea etc

Product Features

Main Function

Playing file automatically

With USB update

Support video, pictures and music

Sercurity and password protection, anti-thief design

Set up time on/off inadvance

Support Remote controller

Support Safety lock system

Support Media Format

MP4(AVI:DIVX/XVID),MPEG1(VCD:DAT/MPG1) ,MPG2(DVD:VOB/MPG2)MP3,JPG,Txt,Full HD Video output.

Temperature

Storage:-40Celsius degree to 5 Celsiucs degree

Working: -30Celsius degree to 55 Celsius degree

Fixing Method

Free Standing/wall mounting

Color

Shinning Silver(Optional for particularly color)

Housing Material

5mm thickness tempered glass as LCD panel protection layer

Applicable field

Supermarket, Hotel,Mall center, Shop, Commercial buildings ,Bus station etc.

Packing information

Packaging Size(mm)

Subject to specific products

N.W. / G. W. (kg)

96kg/ 110kg

Packing Material

Carton and Wooden package together
