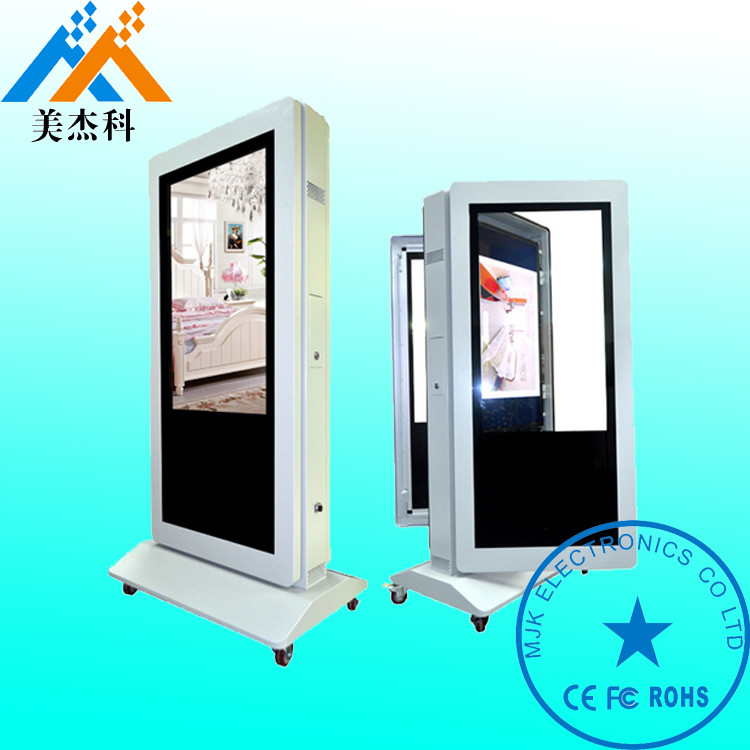

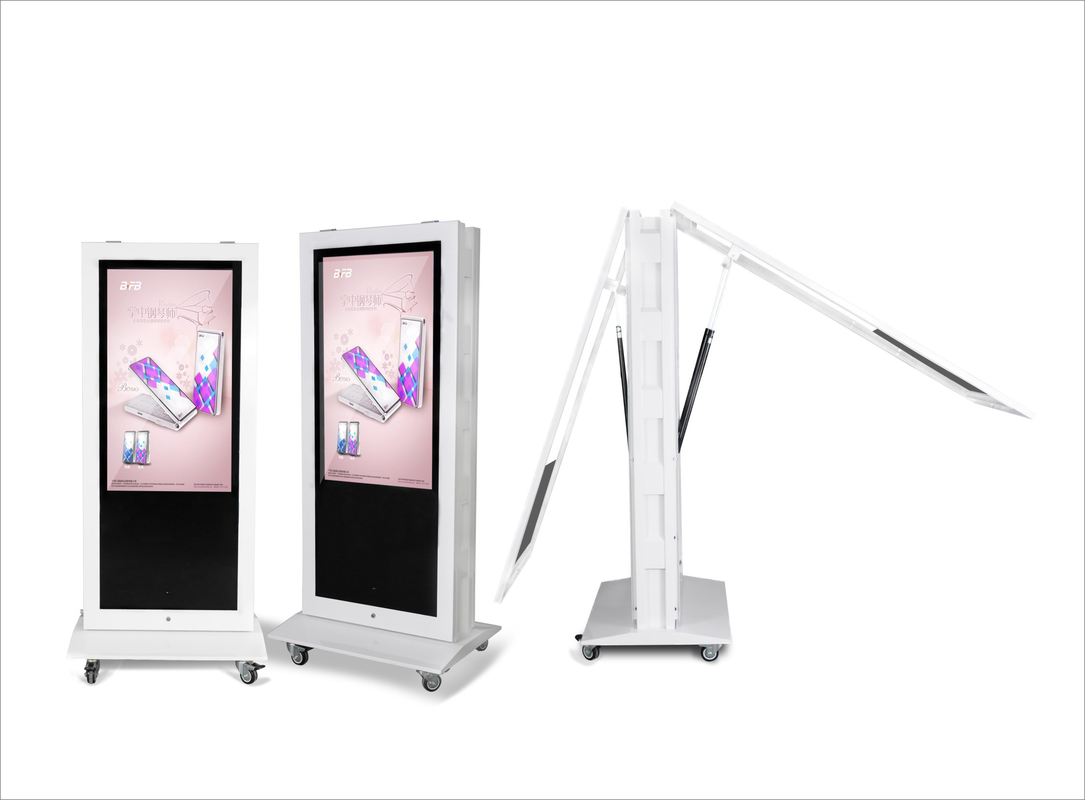

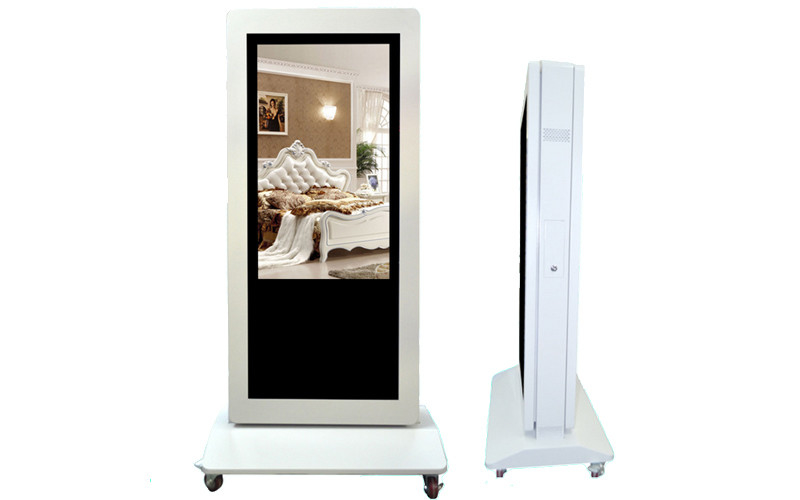

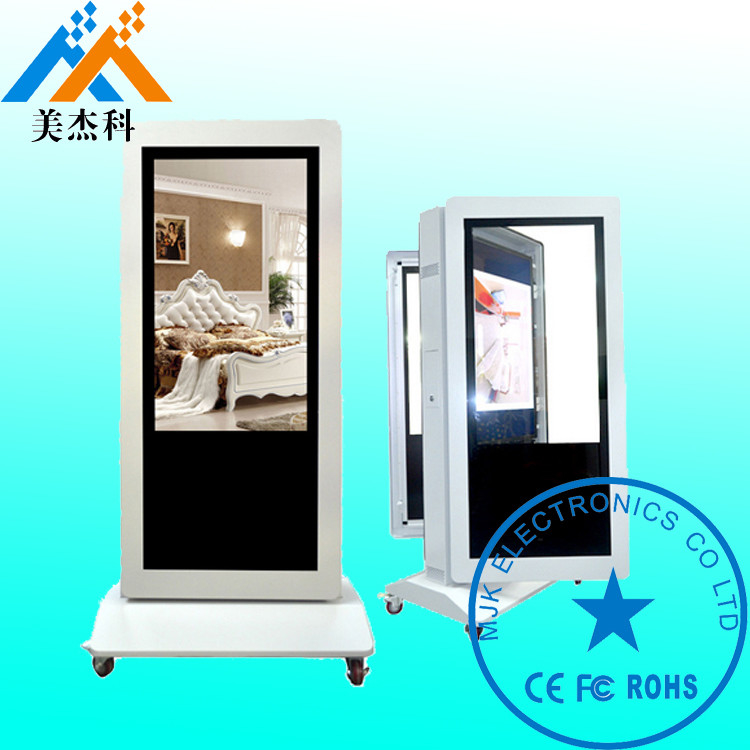

Dustproof Free Standing Outdoor Digital Signage Display For Supermarket

Place of orginal

Type

Panel Size

Viewing angle

Display color

Brightness

Input voltage

RAM

Screen brand

Certificate

Sample order

Shenzhen,Guangdong,China(Mainland)

TFT, LCD touch screen

32"42" 46" 47"55" 65"70"75"82" 84"

178/178

16.7m

1500-2500cd/m²

AC110-240V

1G,2G,DDR3(optional)

LG,,AUO,BOE

CE&Rohs&FCC

support sample

Brand Name

Application

Max resolution

Pixel pitch

Contrast ratio

Respond

Name

OS

Working life

Interface type

Backlight

MJK

Outdoor

1920*1080p

0.4845*0.4845

2000:1

6s

Digital signage

Windows/Android

Above 50000H

USB, VGA, HDMI

LED

1) Competitive tendering processes.

2) Fixture design and prototype processes.

3) Quality Control & Assurance.

4) Manufacturer Management.

5) Procurement Management.

6) Value Engineering.

7) General manufacturer vetting and ethical compliance.

8) Ordering & inventory control.

9) Defect resolution.

10) Logistics liaison management.

11) Store planning CAD production and 3D rendering.

Main Features:

1.IP65 design for outdoor application.

2. High brightness up to 2000cd/m2, readable under sunlight.

3. Build in Airconditioner cooling system, adapted to -40°C--+60°C environment temperature.

4. Lightning protection and heating below zero

5. Fron tempered glass and anti-glare glass

6. Intelligent light system, brightness of screen auto adjusts according to environment light, saving energy.

7. Anti-dust, anti-vandal, anti-theft.

8. Customized design for you without additional cost.

Applications:

1.Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

2.Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;

3.Non-profit Organizations:Telecommunications, post offices, hospital, schools

4.Public Places:subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;

5.Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers

6.Entertainments:Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.

Panel Parameter

Panel Size

55inch (16:9)

Active Area

1428.48*803.52mm

LCD Panel

A grade LCD Panel

Max. Brightness

2000cd/m²

Max. Resolution

1920X1080

Contrast Ratio

2000:1

Panel Life

50000hours

Responsive Time

6ms

Dot Pitch

0.4845 mm x 0.4845 mm

Viewing Angle

178/178

Interface(I/O)

Build in USB port(2.0), CF card and SD card slot

Power Supply

AC 110V-240V, 50HZ/60HZ

Support Language

Chinese, English,French, Spanish, Korea etc

Product Features

Main Function

Playing file automatically

With USB update

Support video, pictures and music

Sercurity and password protection, anti-thief design

Set up time on/off inadvance

Support Remote controller

Support Safety lock system

Support Media Format

MP4(AVI:DIVX/XVID),MPEG1(VCD:DAT/MPG1) ,MPG2(DVD:VOB/MPG2)MP3,JPG,Txt,Full HD Video output.

Temperature

Storage:-40Celsius degree to 5 Celsiucs degree

Working: -30Celsius degree to 55 Celsius degree

Fixing Method

Free standing/Wall mounting

Color

Shinning Silver(Optional for particularly color)

Housing Material

5mm thickness tempered glass as LCD panel protection layer

Applicable field

Supermarket, Hotel,Mall center, Shop, Commercial buildings ,Bus station etc.

Packing information

Packaging Size(mm)

Subject to specific products

N.W. / G. W. (kg)

96kg/ 110kg

Packing Material

Carton and Wooden package together
